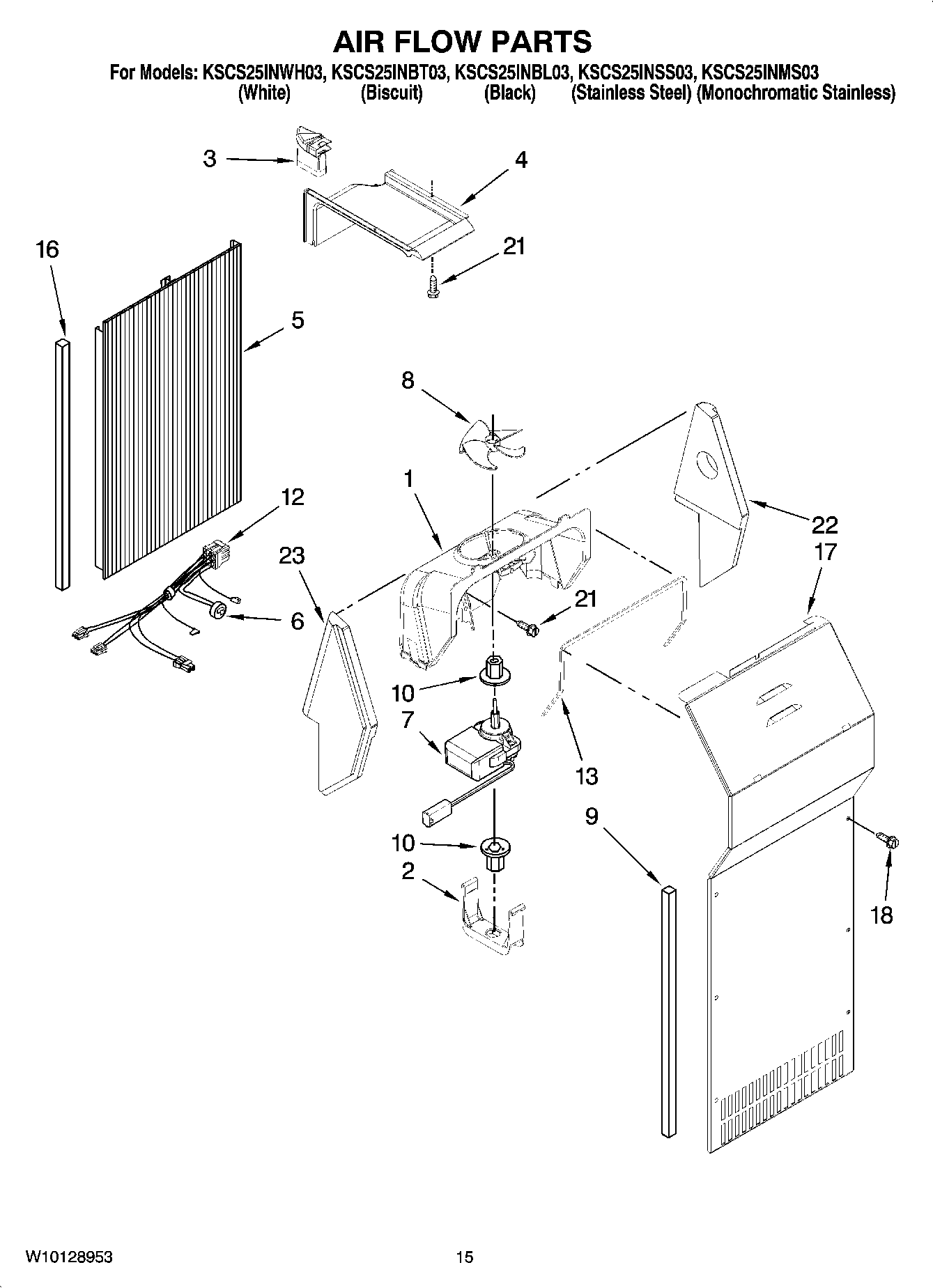

KSCS25INMS03 09 – AIR FLOW PARTS

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	8201663 Whirlpool Refrigerator Primary Fan Blade
3	Air Scoop
4	Air Duct, Upper
5	Air Duct Freezer
6	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7	Motor, Fan
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	W11669856 Whirlpool Grommet
12	Harness, Fan Evaporator (Includes 6)
13	WP2155789 Whirlpool Refrigerator Gasket
16	4388500 Whirlpool Refrigerator Gasket
17	2223413 Whirlpool Refrigerator Evaporator Cover
18	4389654 Whirlpool Screw
21	WP489478 Whirlpool Refrigerator Screw
22	Support, R.S
23	4388358 Whirlpool Refrigerator Support Bracket
