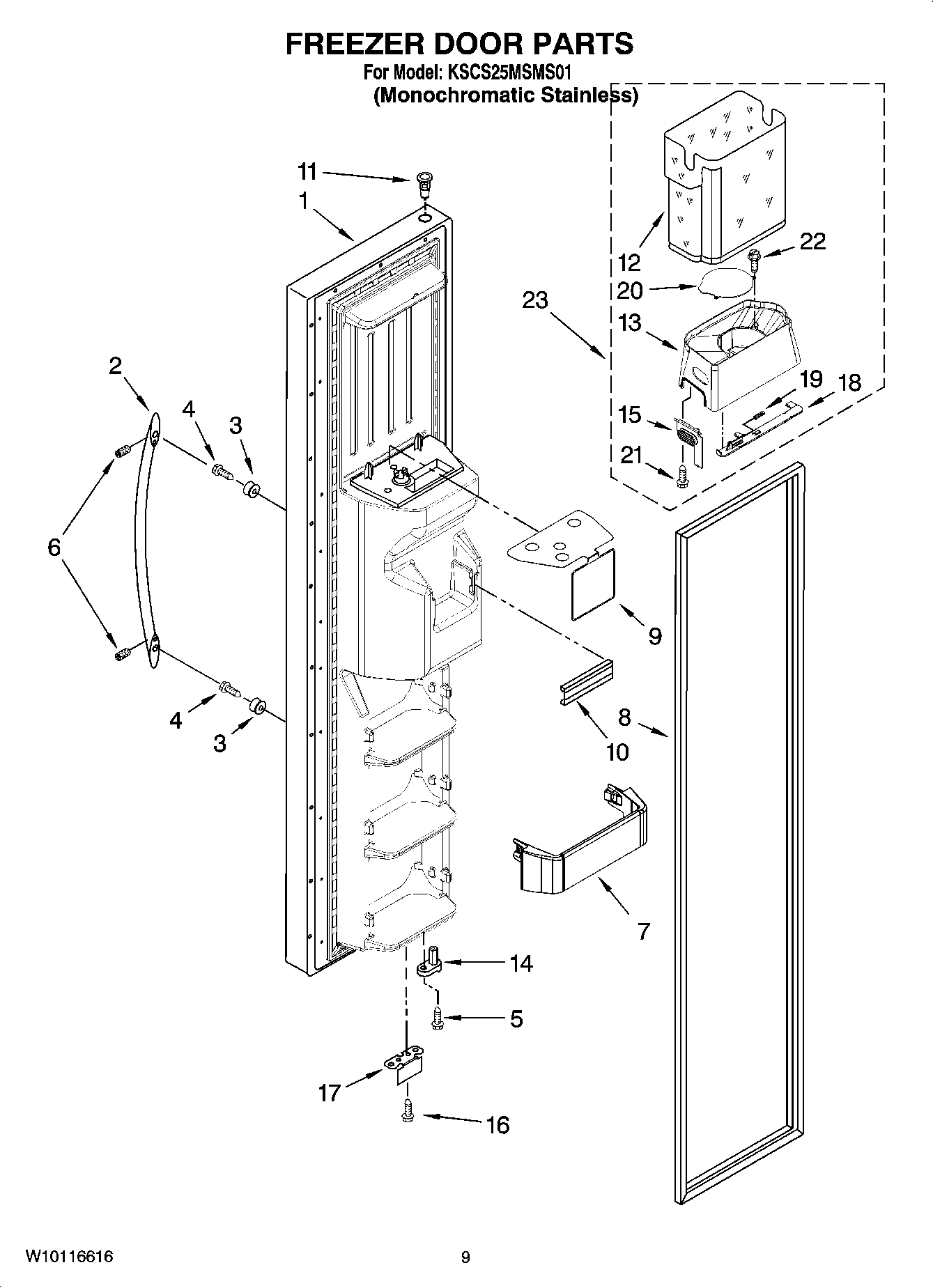

KSCS25MSMS01 06 – FREEZER DOOR PARTS

KSCS25MSMS01 06 – FREEZER DOOR PARTS

Written by

in

KSCS25MSMS01 06 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
2Handle
3WPW10170540 Whirlpool Screw
4WP488163 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6SCREW
7Shelf Bin (3)
8Door Gasket, Magnetic (Mist Beige)
9Safety Barrier
10WPW10307490 Whirlpool Door Trim Assembly
11WP2182181 Whirlpool Refrigerator Thimble
12Ice Bin
13Crusher Bin
14Door Closer, Upper Cam
15WP2315403 Whirlpool Refrigerator Bin Button
16WP489483 Whirlpool Screw
172306940 Whirlpool Refrigerator Bracket
18Latch, Bin
19WP2198608 Whirlpool Refrigerator Spring
20Cover, Crusher
212198671 Whirlpool Refrigerator Screw
22WP3400065 Whirlpool Refrigerator Screw
23Ice Container (Complete)
