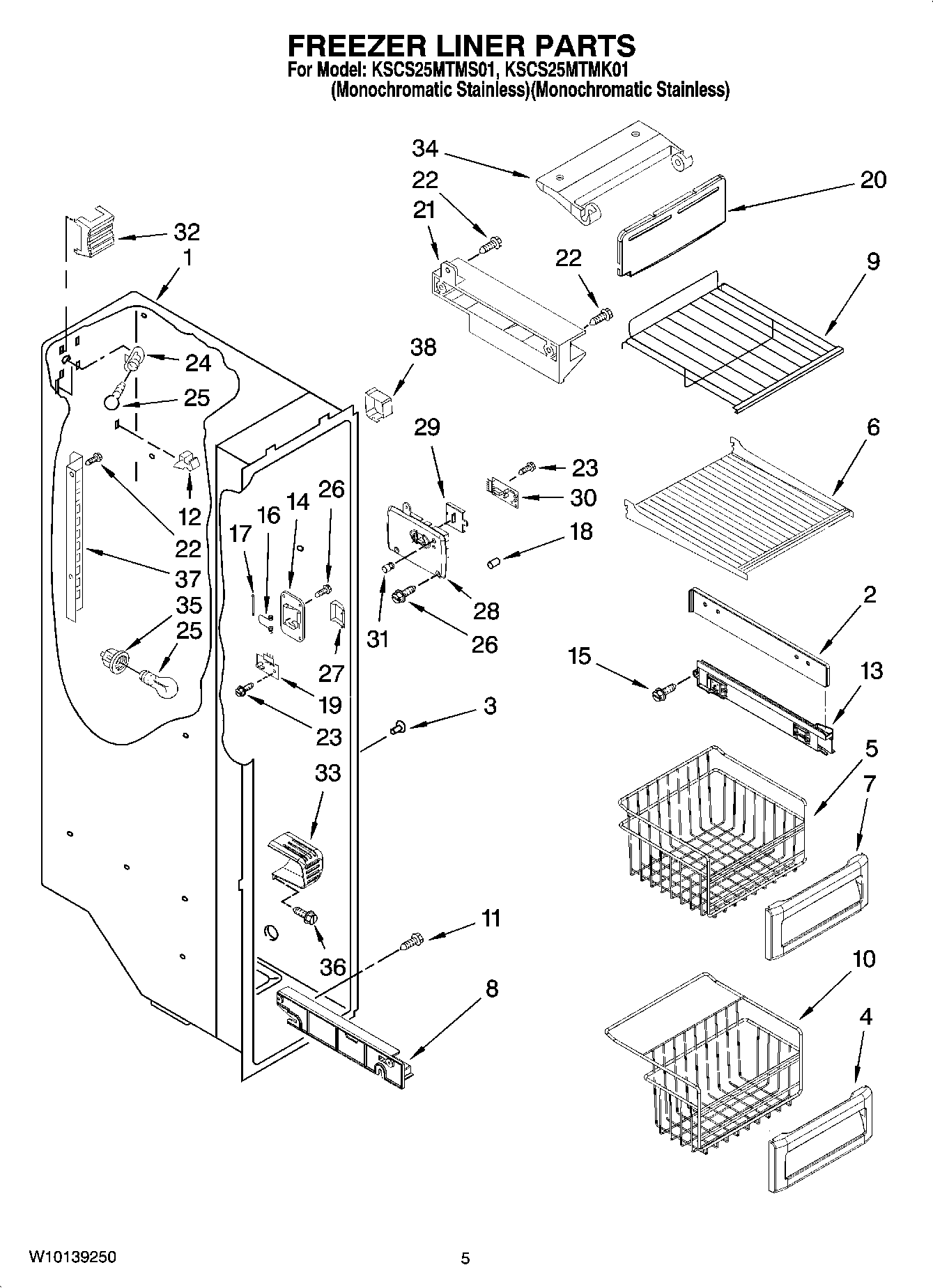

KSCS25MTMK01 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Spacer, Slide (2)
3	WP941839 Whirlpool Refrigerator Button Plug
4	2223782 Whirlpool Front Basket
5	Basket, Deep (2)
6	SHELF, WIRE
7	Front, Basket
8	TRACK, SHELF (LEFT HAND)
8	TRACK, SHELF (RIGHT HAND)
9	Shelf, Fixed
10	Basket, Lower
12	2215823 Whirlpool Refrigerator Clip
13	2301544 Whirlpool Refrigerator Glide
13	2301545 Whirlpool Refrigerator Glide
14	Cover, Emitter
15	Screw
16	WP2198635 Whirlpool Refrigerator Spring
17	WP2198634 Whirlpool Door Pin
18	Tube, P.C. Board
19	W10757851-includeCORE Whirlpool Electronic Control+Core
20	WPW10185438 Whirlpool Ice Maker Cover
21	2306900 Whirlpool Refrigerator Slide
21	Slide, Ice Maker
22	WP489478 Whirlpool Refrigerator Screw
23	2006254 Whirlpool Refrigerator Screw
24	4387478 Whirlpool Refrigerator Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WPW10142283 Whirlpool Refrigerator Screw
27	WP2198633 Whirlpool Refrigerator Flipper
28	Cover, Receiver
29	Slide, Ice Maker Shut Off
31	WP2198643 Whirlpool Refrigerator Lens
32	Light Shield
33	Light Lens
34	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
35	SOCKET
36	W10142289 Whirlpool Air Conditioner Screw
37	Ladder (Right Side)
37	Ladder (Left Side)
38	2303378 Whirlpool Shield Assembly
