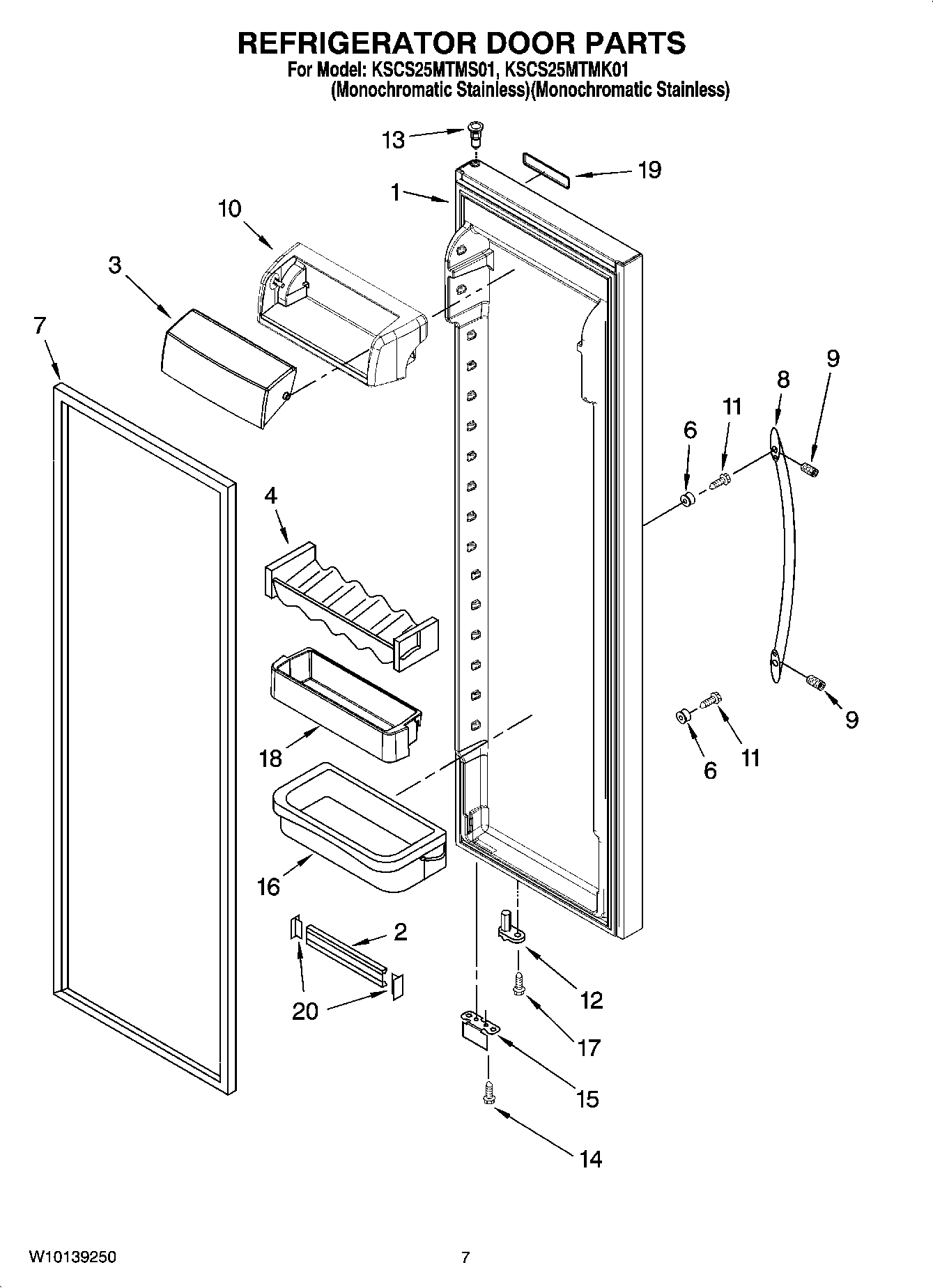

KSCS25MTMK01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (Monochromatic Stainless)
2	Trim, Shelf
3	Dairy Door
4	CADDY, CAN
6	WPW10170540 Whirlpool Screw
7	2306992 Whirlpool Refrigerator FIP Gasket
8	Handle, Door (Stainless Steel)
9	SCREW
10	WP2223879 Whirlpool Refrigerator Compressor Door
11	WP488163 Whirlpool Refrigerator Screw
12	CLOSER, DOOR
13	WP2182181 Whirlpool Refrigerator Thimble
14	WP489483 Whirlpool Screw
15	2306940 Whirlpool Refrigerator Bracket
16	WP2223860 Whirlpool Refrigerator Door Shelf Bin
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2224173 Whirlpool Refrigerator Cantilever Bin
19	NAMEPLATE
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
