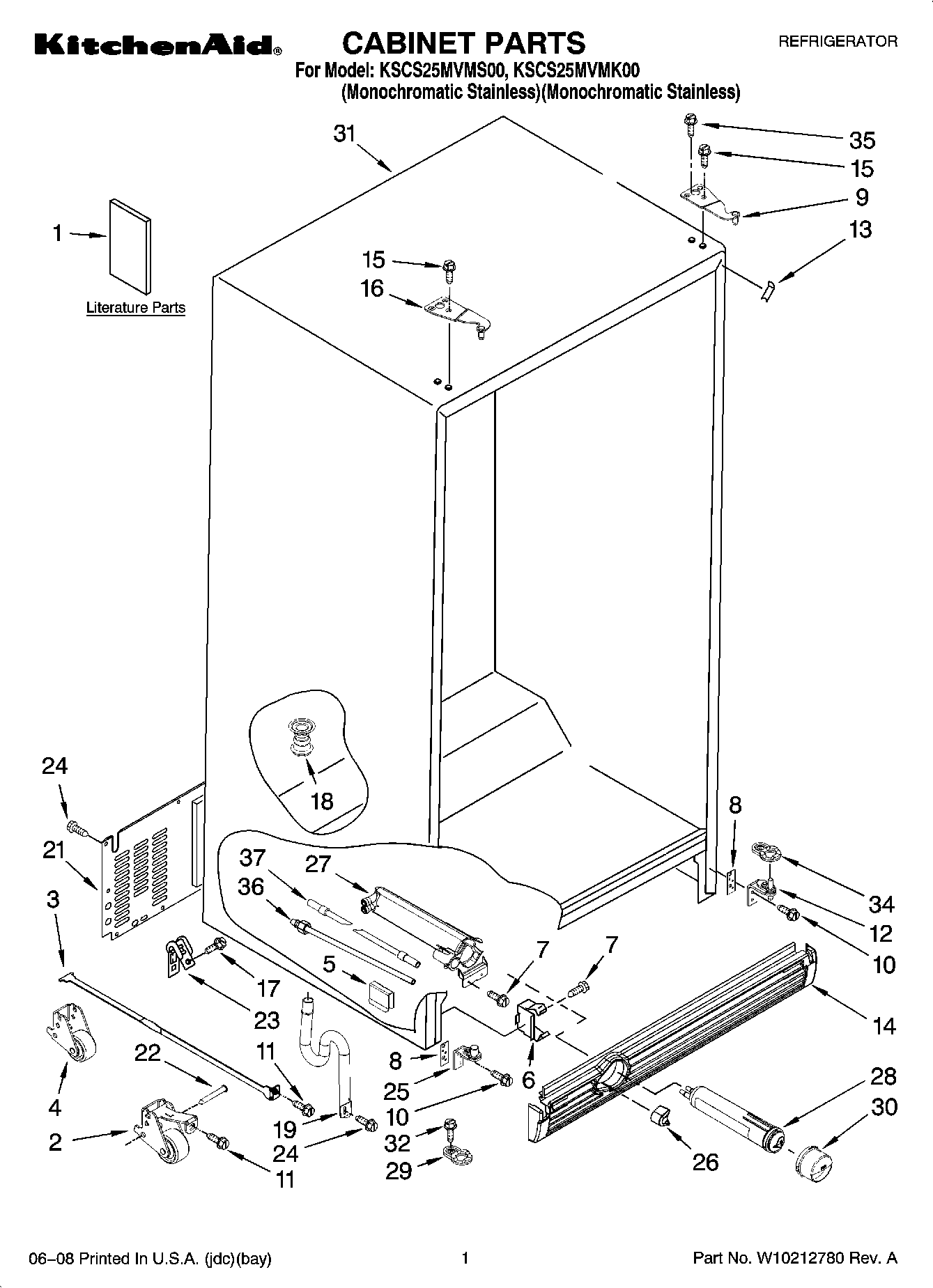

KSCS25MVMK00 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Installation Instructions
1	Use & Care Guide
1	Energy Guide
2	ASSEMBLY, FRONT ROLLER (RIGHT HAND)
2	ASSEMBLY, FRONT ROLLER (LEFT HAND)
3	Strap, Roller
4	WPW10173132 Whirlpool Refrigerator Cabinet Roller
5	W11545866 Whirlpool Refrigerator Clip
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	2223545 Whirlpool Refrigerator Shim
9	2307008AP Whirlpool Refrigerator Hinge
10	WP489497 Whirlpool Screw
11	W10151272 Whirlpool Refrigerator Screw
12	Hinge Assembly, Bottom-RC
13	2223893AP Whirlpool Refrigerator Filler
14	Grille (Midnight Grey)
15	3400108 Whirlpool Refrigerator Screw
16	2307007AP Whirlpool Refrigerator Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Tube, Extension
21	Cover, Unit
22	PIN, ROLLER
23	549193 Whirlpool Refrigerator Power Clamp
25	Hinge Assembly, Bottom-FC
26	2260503MG Whirlpool Refrigerator Button
27	WPW10121140 Whirlpool Refrigerator Housing
28	FILTER 3-SINGLE TEAL
29	Door Closer, FC
30	WP2260518MG Whirlpool Water Filter Cap
31	Cabinet, (Not A Serviceable Part)
32	WP489483 Whirlpool Screw
34	WPL 2307049
35	W10853301 Whirlpool Refrigerator Screw
36	W11496481 Whirlpool Refrigerator Water Tube
37	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
