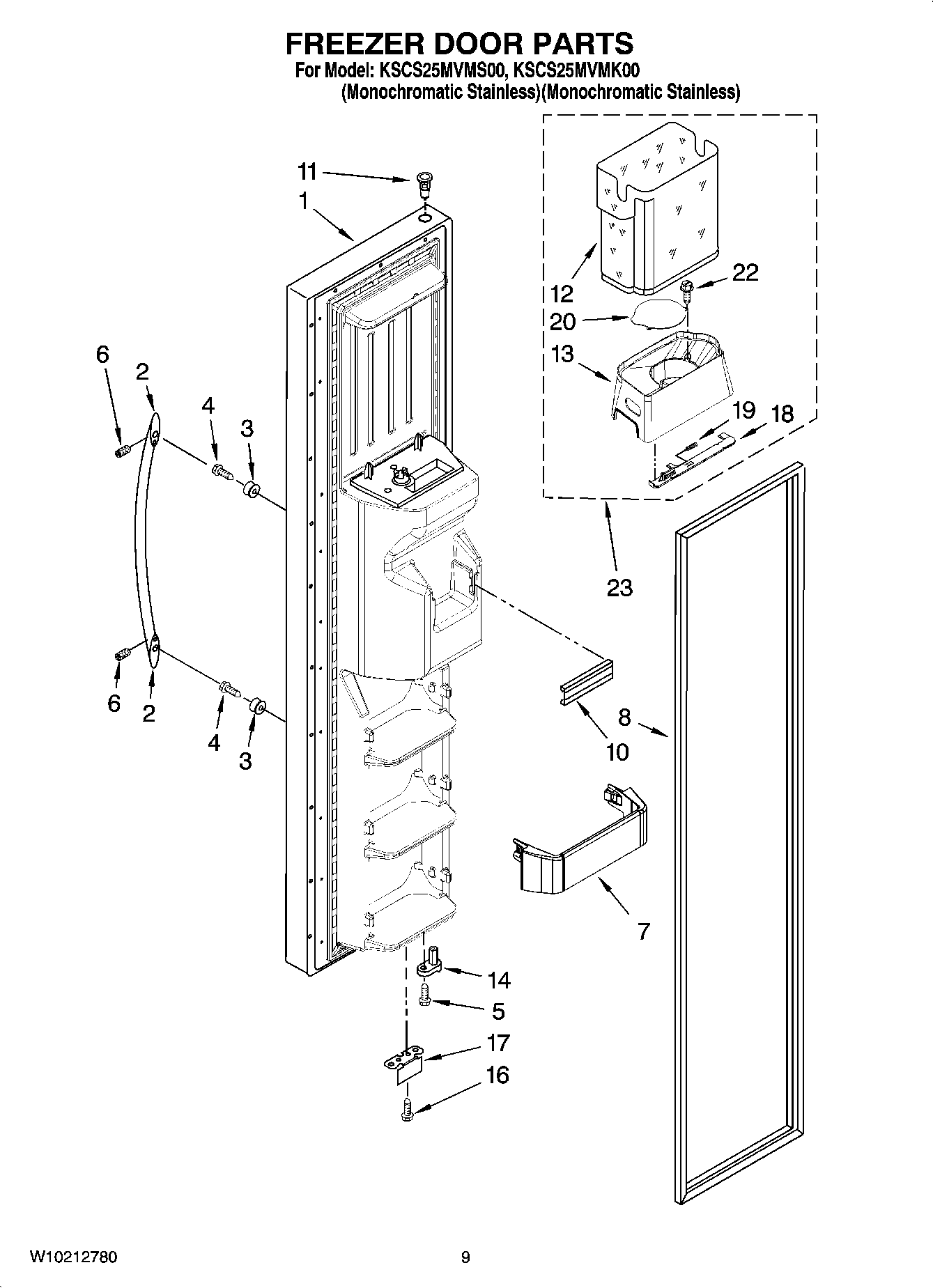

KSCS25MVMK00 06 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
2	Handle, Door (Stainless Steel)
3	WPW10170540 Whirlpool Screw
4	WP488163 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	SCREW
7	Trivet (3)
8	Door Gasket, Magnetic (Apollo Grey)
10	WPW10307490 Whirlpool Door Trim Assembly
11	WP2182181 Whirlpool Refrigerator Thimble
12	Ice Bin
13	WPW10130497 Whirlpool Refrigerator Crush Bin
14	Door Closer, Upper Cam
16	WP489483 Whirlpool Screw
17	2306940 Whirlpool Refrigerator Bracket
18	Latch, Bin
19	WP2198608 Whirlpool Refrigerator Spring
20	Cover, Crusher
22	WP3400065 Whirlpool Refrigerator Screw
23	Ice Container (Complete)
