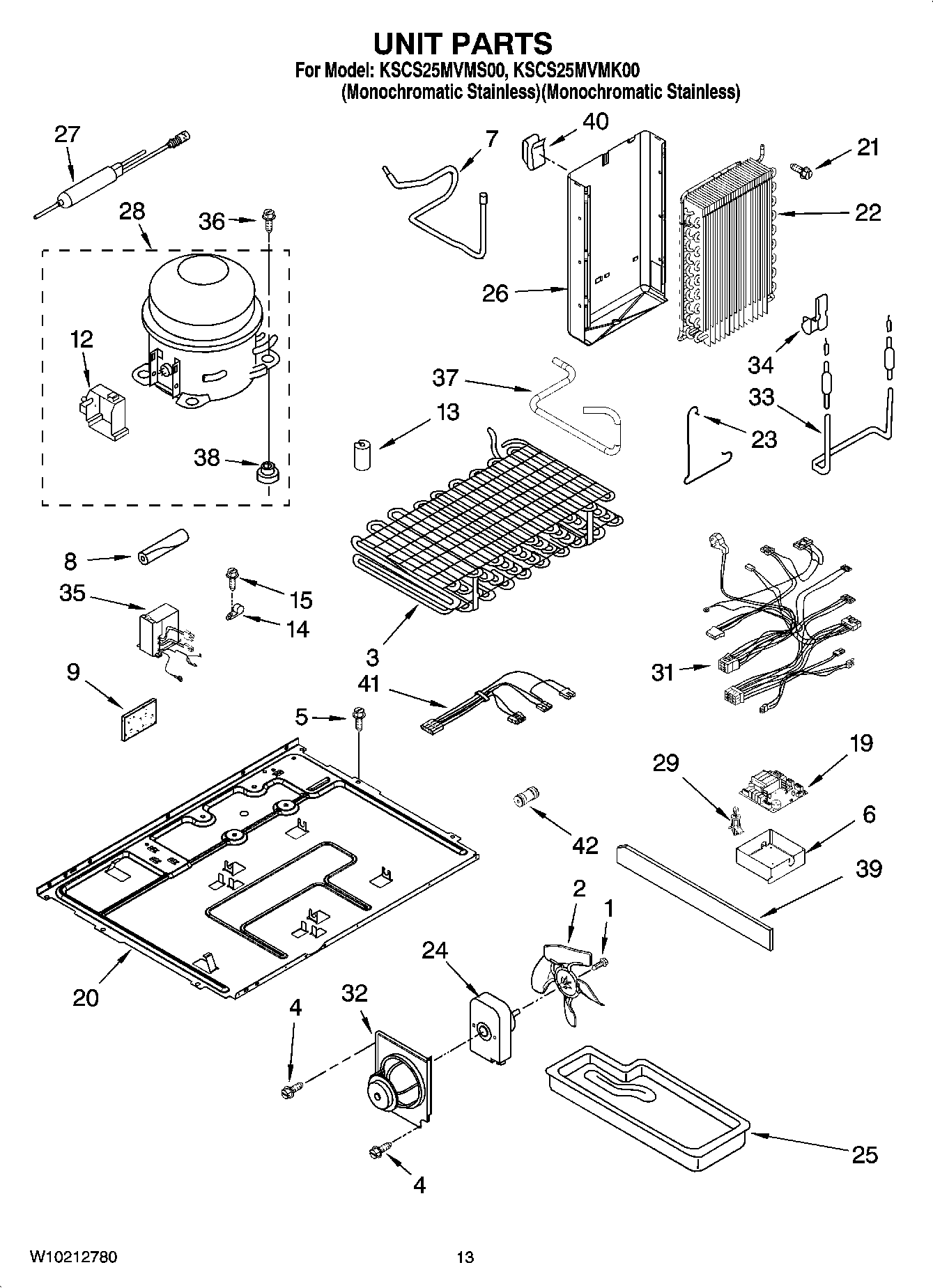

KSCS25MVMK00 09 – UNIT PARTS

KSCS25MVMK00 09 – UNIT PARTS

Written by

in

KSCS25MVMK00 09 – UNIT PARTS

Products

PositionProduct
978030 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
REFRIGERANT CHARGE 6.00 oz. (R-134A)
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
Following Parts Not Illustrated and Optional Parts Not Included
1WP488234 Whirlpool Air Conditioner Screw
2WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3ASSEMBLY, CONDENSER
48281197 Whirlpool Refrigerator Screw
53400524 Whirlpool Refrigerator Screw
6Housing, Control Board
7W10528579 Whirlpool Refrigerator Tube
8SLEEVE
9W11553819 Whirlpool Refrigerator Insulation
122215676 Whirlpool Refrigerator Terminal Cover
13W10852725 Whirlpool Refrigerator Grommet
14W11456069 Whirlpool Refrigerator Clamp
15WPW10141625 Whirlpool Refrigerator Screw Assembly
19W10219463 Whirlpool Control Board + Core
20Baseplate
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24WP2188874 Whirlpool Refrigerator Condenser Motor
25Tray, Evaporator
26SHIELD, HEAT
27WPW10143759 Whirlpool Dryer Filter
288201675 Whirlpool Refrigerator Compressor
292223800 Whirlpool Refrigerator Spacer
31Harness, Main Control
32BRACKET, FAN MOUNTING
33Heater, Defrost
34W11623163 Whirlpool Refrigerator Clip
35WPW10154805 Whirlpool Refrigerator Inverter Box
36SCREW
37Tube, Discharge
38WP4387558 Whirlpool Refrigerator Compressor Grommet
38876811 Whirlpool Grommet
392223394 Whirlpool Extension
40Clip, Heat Shield
41Unit Harness
42WPW10334458 Whirlpool Refrigerator Connector
