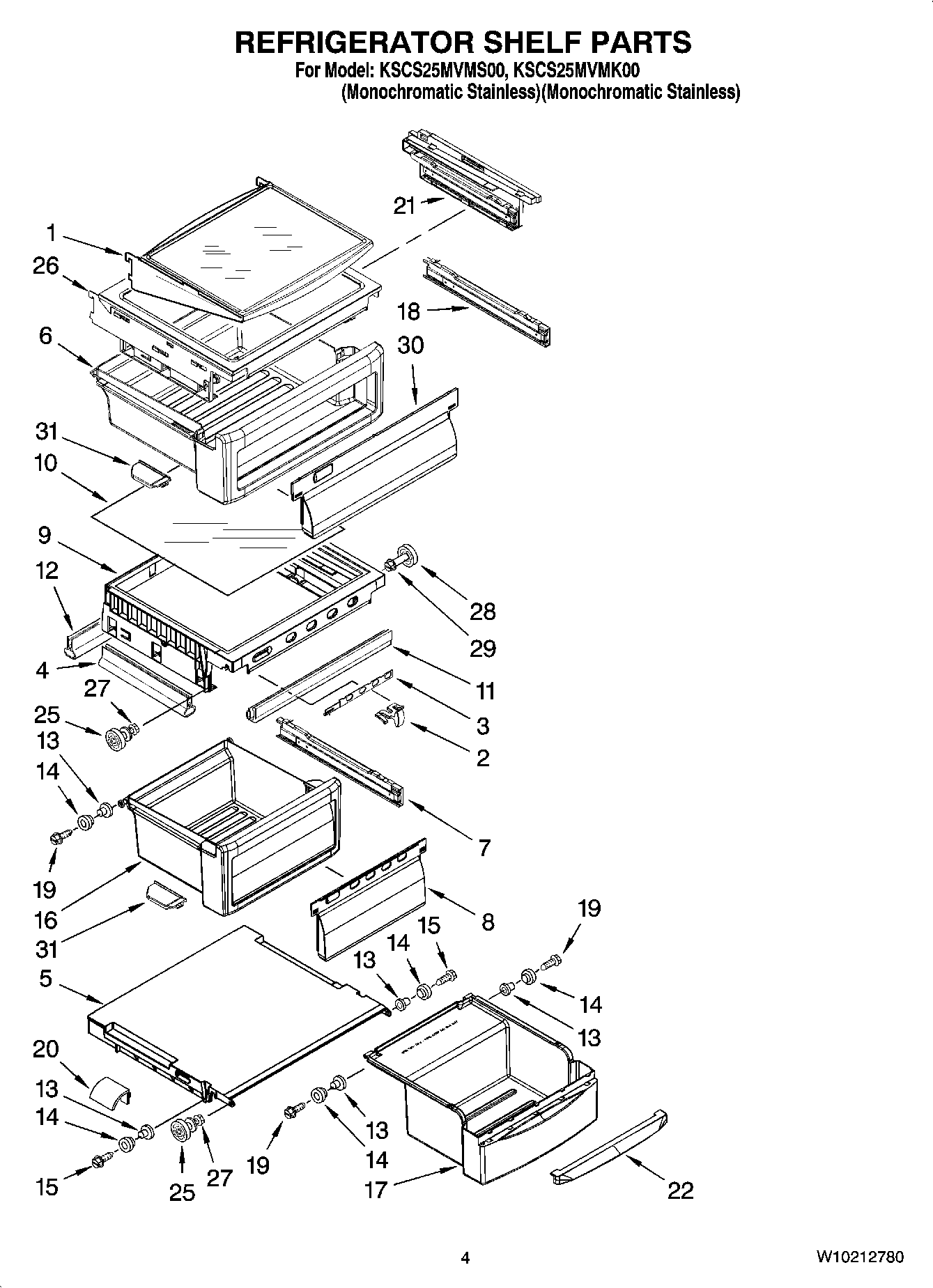

KSCS25MVMS00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1W10235943 Whirlpool Refrigerator CANT Shelf
2Knob, Humidity
32301026 Whirlpool Refrigerator Slide
42301117 Whirlpool Refrigerator Gasket
5WPW10270150 Whirlpool Crisper Drawer Cover
6Snack Bin
7Glide Assm-Pan (Left Side)
72301548 Whirlpool Refrigerator Glide
8Window, Crisper
9Glass, Meat Pan Cover
10Glass, Cover
11WP1125528 Whirlpool Refrigerator Gasket
12Gasket, Rear
13Eyelet, Roller
14Roller
15WPW10272364 Whirlpool Refrigerator Screw
16W10916292 Whirlpool Refrigerator Crisper Pan
17Meat Pan (Includes 13, 14, 19 & 22)
18Glide Assm-Pan (Left Side)
18Glide Assm-Pan (Right Side)
19WP489261 Whirlpool Refrigerator Screw
202223487 Whirlpool Refrigerator Deflector
21Support Assembly (Left Side)
21Support Assembly (Right Side)
22Handle, Beverage
25W11223328 Whirlpool Refrigerator Shelf Stud
26Shelf Assembly
27WP3-24004-109 Whirlpool Refrigerator Screw
28WP2196483 Whirlpool Refrigerator Shelf Stud
29WP3400806 Whirlpool Screw
30Window, Snack Pan
31Cap, Crisper Pan (Right Side)
31Cap, Crisper Pan (Left Side)
