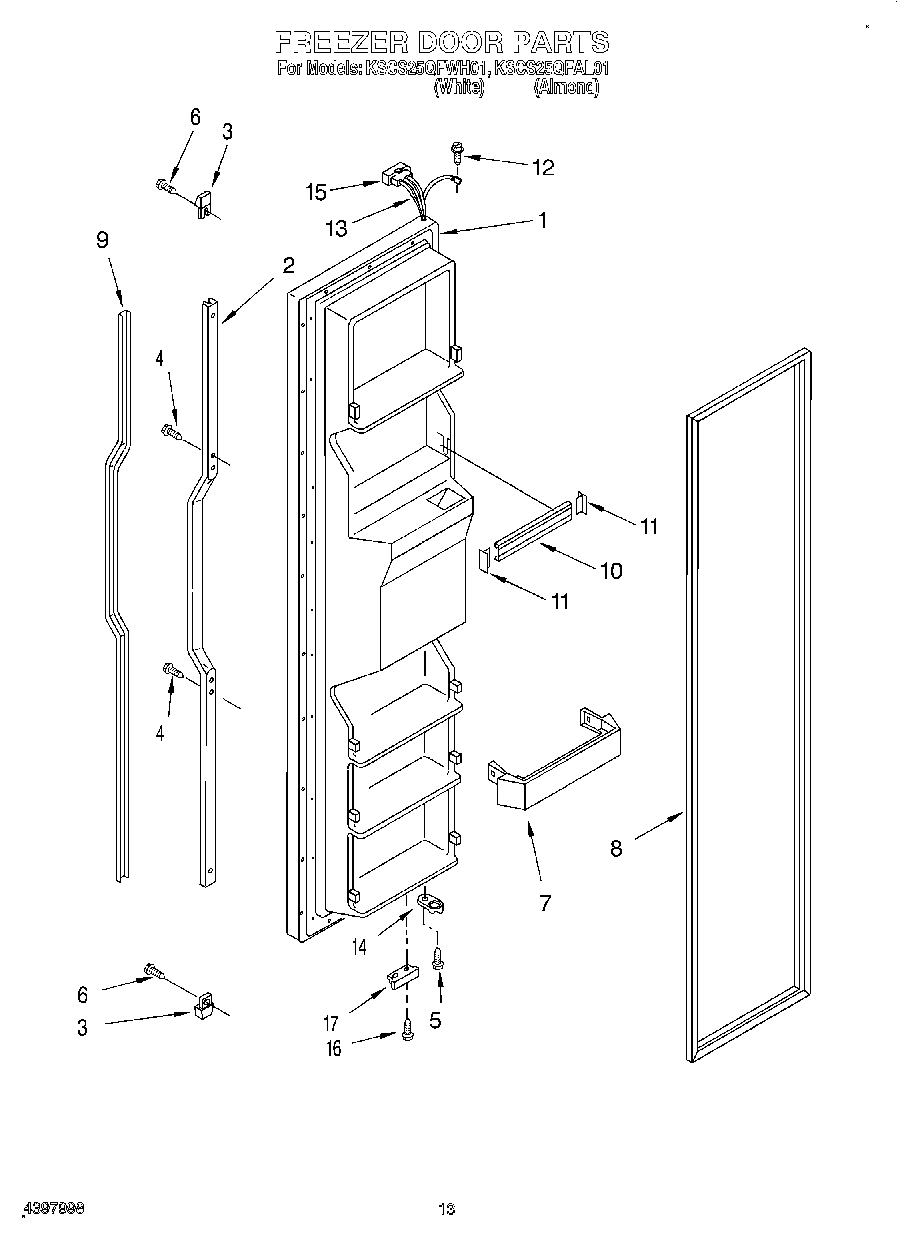

KSCS25QFAL01 08 – FREEZER DOOR

KSCS25QFAL01 08 – FREEZER DOOR

Written by

in

KSCS25QFAL01 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Almond)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
2Retainer, Insert (Almond)
2Retainer, Insert
3End Cap, Handle
3End Cap, Handle (Almond)
4WP489463 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP3400852 Whirlpool Refrigerator Screw
7Shelf Bin (4)
82159074 Whirlpool Door Gasket Seal
9Insert, Handle (Biscuit)
9Insert, Handle
10WPW10307490 Whirlpool Door Trim Assembly
11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12WP488234 Whirlpool Air Conditioner Screw
13Wire Harness
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
