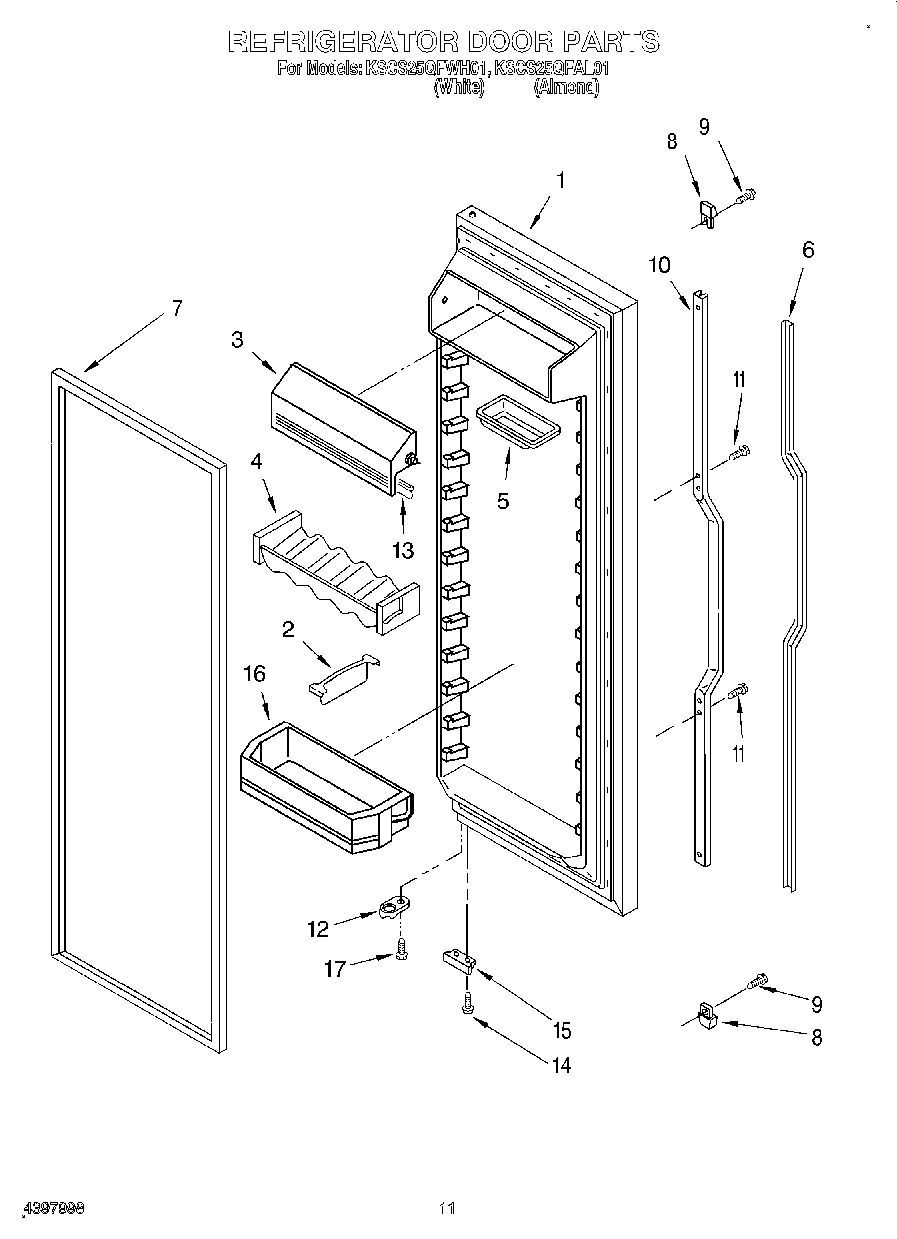

KSCS25QFWH01 07 – REFRIGERATOR DOOR

KSCS25QFWH01 07 – REFRIGERATOR DOOR

Written by

in

KSCS25QFWH01 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.7) (Almond)
1Refrigerator Door (Includes No.7) (White)
2Divider, Bin
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Insert, Handle (Biscuit)
6Insert, Handle
72159075 Whirlpool Door Gasket Seal
8End Cap, Handle (Almond)
8End Cap, Handle
9WP3400852 Whirlpool Refrigerator Screw
10Retainer, Insert
10Retainer, Insert (Almond)
11WP489463 Whirlpool Refrigerator Screw
124318165 Whirlpool Refrigerator Door Closure Cam Kit
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop (Chrome)
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
