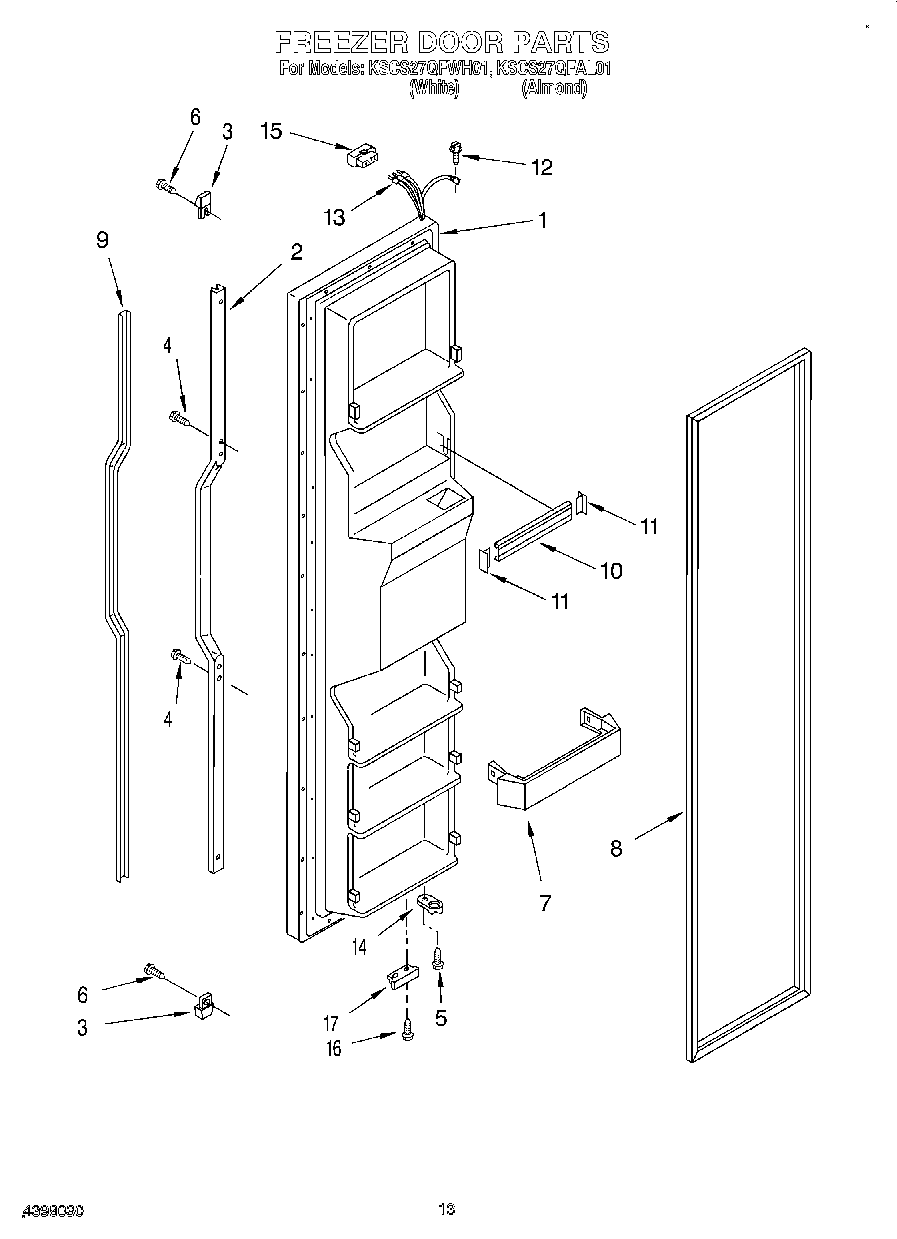

KSCS27QFAL01 08 – FREEZER DOORadmin2025-04-26T12:33:38+00:00KSCS27QFAL01 08 – FREEZER DOOR ProductsPositionProduct1Freezer Door (Includes No.8 And Dispenser Front Parts) (Almond)1Freezer Door (Includes No.8 And Dispenser Front Parts) (White)2Retainer, Insert (Almond)2Retainer, Insert3End Cap, Handle3End Cap, Handle (Almond)4WP489463 Whirlpool Refrigerator Screw5WP3400012 Whirlpool Refrigerator Screw6WP3400852 Whirlpool Refrigerator Screw7Shelf Bin (4)82159074 Whirlpool Door Gasket Seal9Insert, Handle (Biscuit)9Insert, Handle10WPW10307490 Whirlpool Door Trim Assembly11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap12WP489128 Whirlpool Refrigerator Screw13Wire Harness144318165 Whirlpool Refrigerator Door Closure Cam Kit15WP2154473 Whirlpool Refrigerator Connector16WP489483 Whirlpool Screw17Bracket, Door Stop (Chrome)
