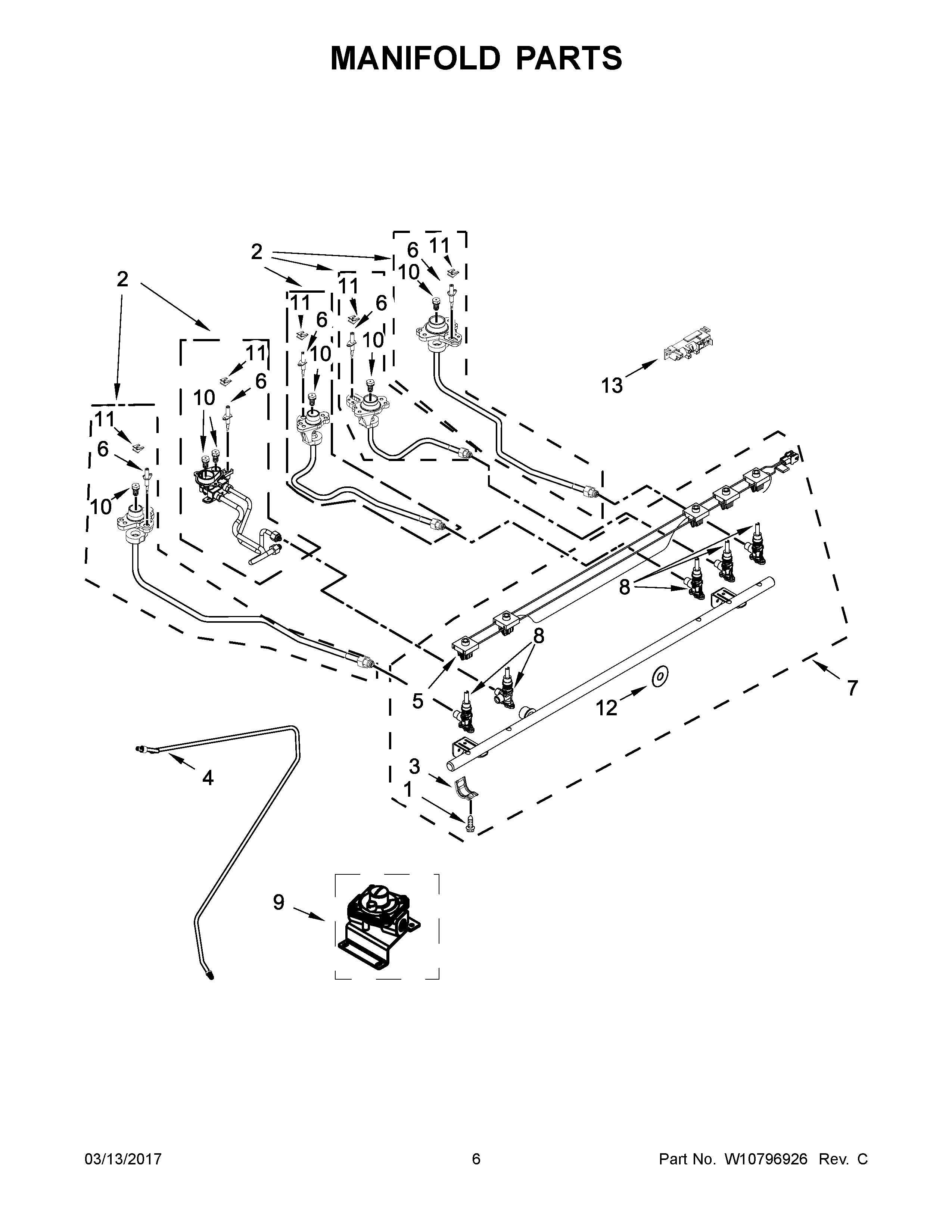

KSDB900ESS0 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10909678 Whirlpool ORFCE Spud
1	W10295997 Whirlpool Screw
2D	W10552124 Whirlpool Orifice Holder
2C	W10552121 Whirlpool Orifice Holder
2A	W10552119 Whirlpool Orifice Holder
2	W11628649 Whirlpool Orifice Holder
2B	W10552122 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10552945 Whirlpool Gas Tubing
5	W11376663 Whirlpool Wire Harness
6C	W11611678 Whirlpool Surface Igniter
6	W11220383 Whirlpool Surface Igniter
6A	W11447374 Whirlpool Surface Igniter
6B	W11050467 Whirlpool Surface Igniter
7	W10826727 Whirlpool Manifold
8B	W10831591 Whirlpool Burner Valve
8A	W11241561 Whirlpool Burner Valve
8	W11233561 Whirlpool Burner Valve
8C	W11109973 Whirlpool Burner Valve
9	W10661850 Whirlpool Regulator
10C	W10566082 Whirlpool Orifice Spud
10D	W10657947 Whirlpool Orifice Spud
10E	W10756981 Whirlpool Spud Orifice
10A	SPUD-ORFCE
10B	W10819958 Whirlpool Orifice Spud
10	W10821182 Whirlpool Orifice
11	W11190173 Whirlpool Clip
12	W10140571 Whirlpool Seal Switch
13	WPW10475149 Whirlpool Spark Module
