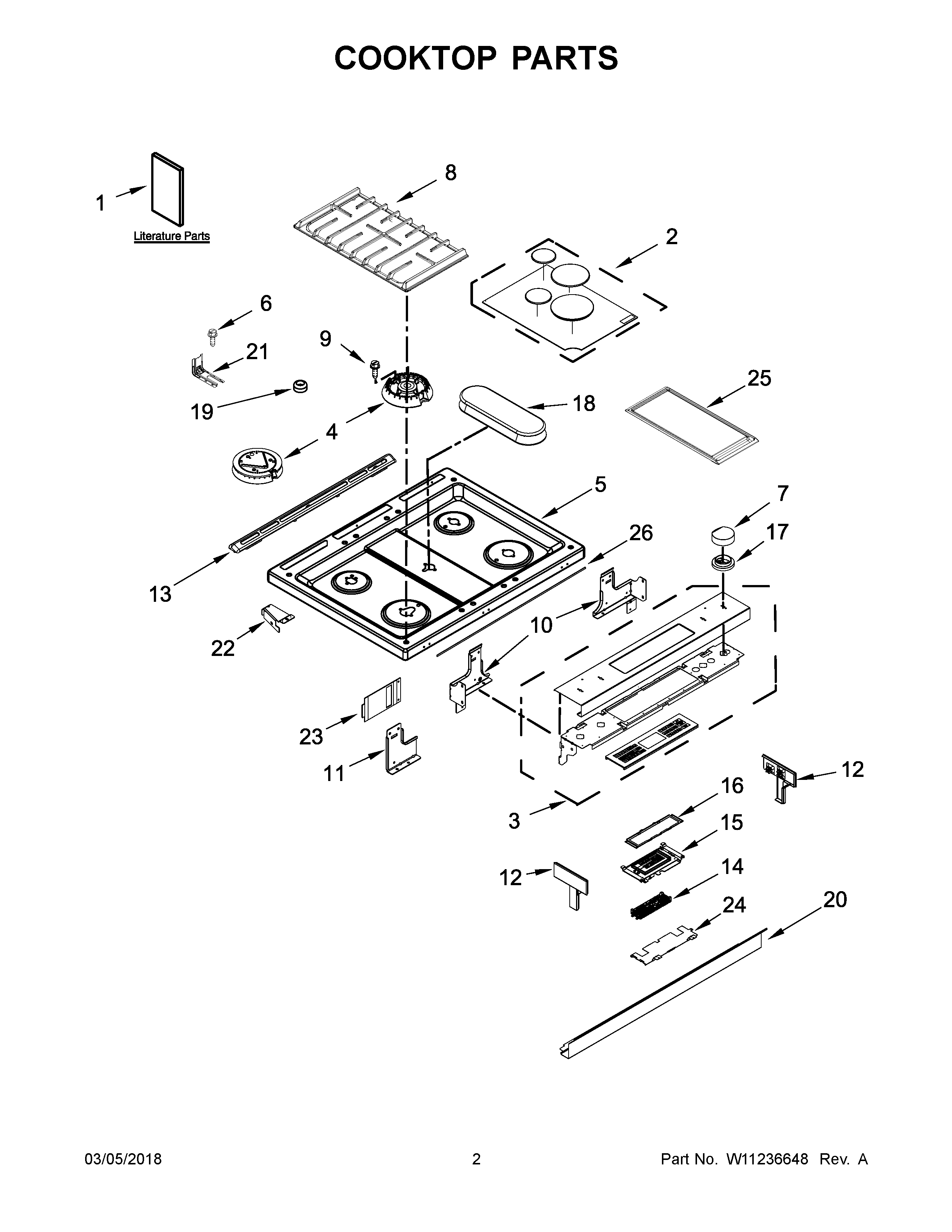

KSDB900ESS3 02 – COOKTOP PARTS

KSDB900ESS3 02 – COOKTOP PARTS

Written by

in

KSDB900ESS3 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11175842 Whirlpool Suppressor
NI	W10580316 Whirlpool Wire Harness
NI	W10911850 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11176109 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
1B	SHEET, TECH
1D	QUICK START GUIDE (FRENCH)
1C	GUIDE, QUICK START
1A	INSTRUCTIONS, INSTALLATION
1	USE AND CARE GUIDE
1E	WIRING DIAGRAM
2	W11244067 Whirlpool Burner Cap
3	W10913685 Whirlpool Control Panel
4B	WPW10256028 Whirlpool Stove Surface Burner Base
4A	W10836467 Whirlpool Burner Head
4C	WPW10256025 Whirlpool Burner Head
4	W11106799 Whirlpool Range Burner Base Surface
5	W11628045 Whirlpool Cooktop
6	SCREW, ANTI-TIP KIT
7A	W10872674 Whirlpool Knob
7	W10872668 Whirlpool Control Knob
8	W11241056 Whirlpool Grate Kit
9	WP3196557 Whirlpool Screw
10	W10289170 Whirlpool Support Bracket
10A	W10289169 Whirlpool Bracket Support
11	W10598048 Whirlpool Support Bracket
12A	W10555940 Whirlpool Endcap Panel
12	W10555937 Whirlpool Endcap Panel
13	W11170796 Whirlpool Vent Trim
14	W11099784 Whirlpool Electronic Control Board + Core
15	W11128223 Whirlpool Display
16	W10555923 Whirlpool Mounting Bracket
17	W10814133 Whirlpool Knob Bezel
18	W11162114 Whirlpool Top Burner Assembly
19	W11104127 Whirlpool Bumper Assembly
20	W10555934 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W10757531 Whirlpool Shield
24	W10558372 Whirlpool Bracket Mounting
25	W10432544 Whirlpool Range Griddle
26	W10802441 Whirlpool Gasket
