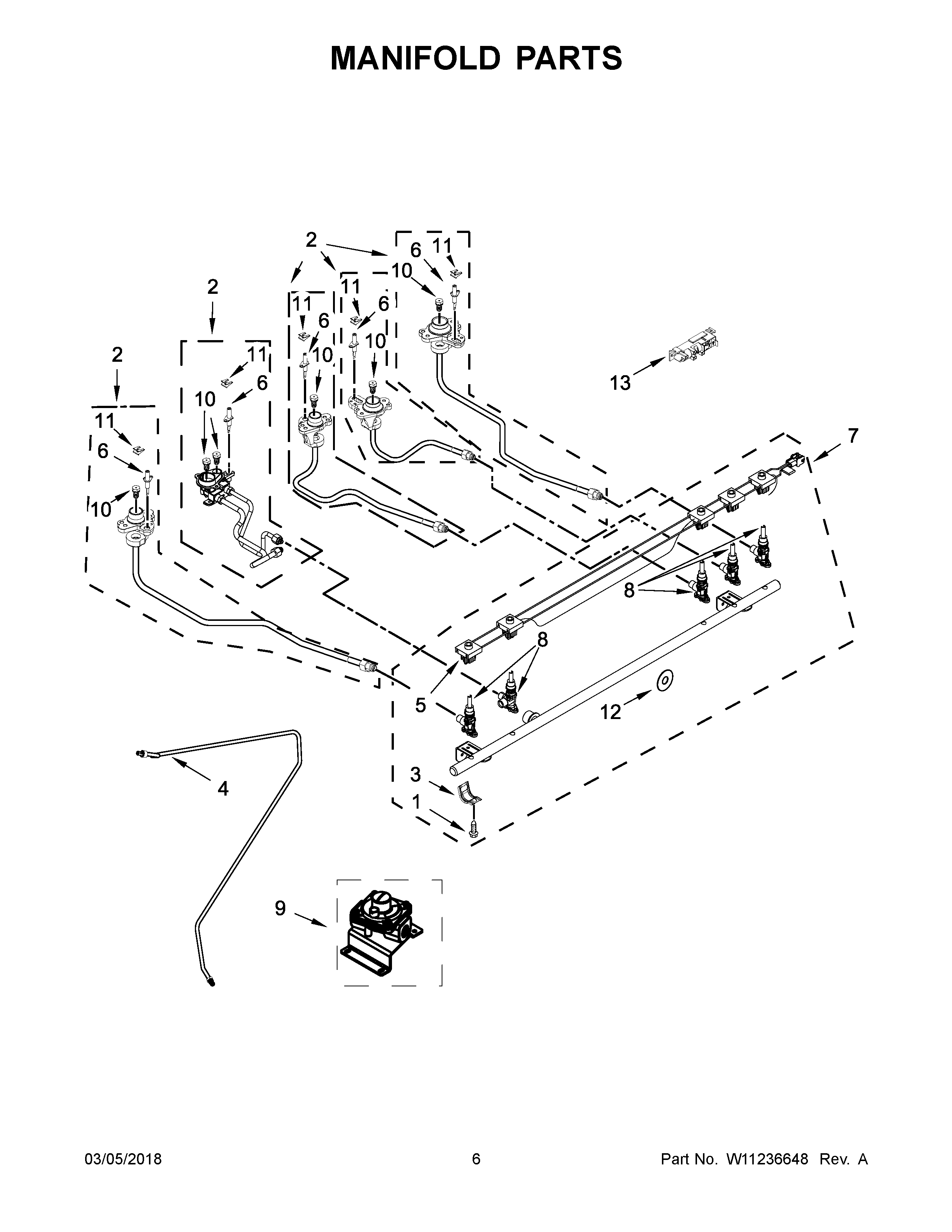

KSDB900ESS3 04 – MANIFOLD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10909678 Whirlpool ORFCE Spud
1W10295997 Whirlpool Screw
2CW10552122 Whirlpool Orifice Holder
2BW10552121 Whirlpool Orifice Holder
2DW11045553 Whirlpool Holder Assembly
2AW10552119 Whirlpool Orifice Holder
2W11628649 Whirlpool Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10552945 Whirlpool Gas Tubing
5W11376663 Whirlpool Wire Harness
6W11220383 Whirlpool Surface Igniter
6CW11611678 Whirlpool Surface Igniter
6AW11447374 Whirlpool Surface Igniter
6BW11050467 Whirlpool Surface Igniter
7W10826727 Whirlpool Manifold
8W11233561 Whirlpool Burner Valve
8CW11109973 Whirlpool Burner Valve
8BW10831591 Whirlpool Burner Valve
8AW11241561 Whirlpool Burner Valve
9W10661850 Whirlpool Regulator
10W10821182 Whirlpool Orifice
10DW10432324 Whirlpool Orifice Spud
10ASPUD-ORFCE
10CW10566082 Whirlpool Orifice Spud
10EW10756981 Whirlpool Spud Orifice
10BW10819958 Whirlpool Orifice Spud
11W11190173 Whirlpool Clip
12W10140571 Whirlpool Seal Switch
13WPW10475149 Whirlpool Spark Module
