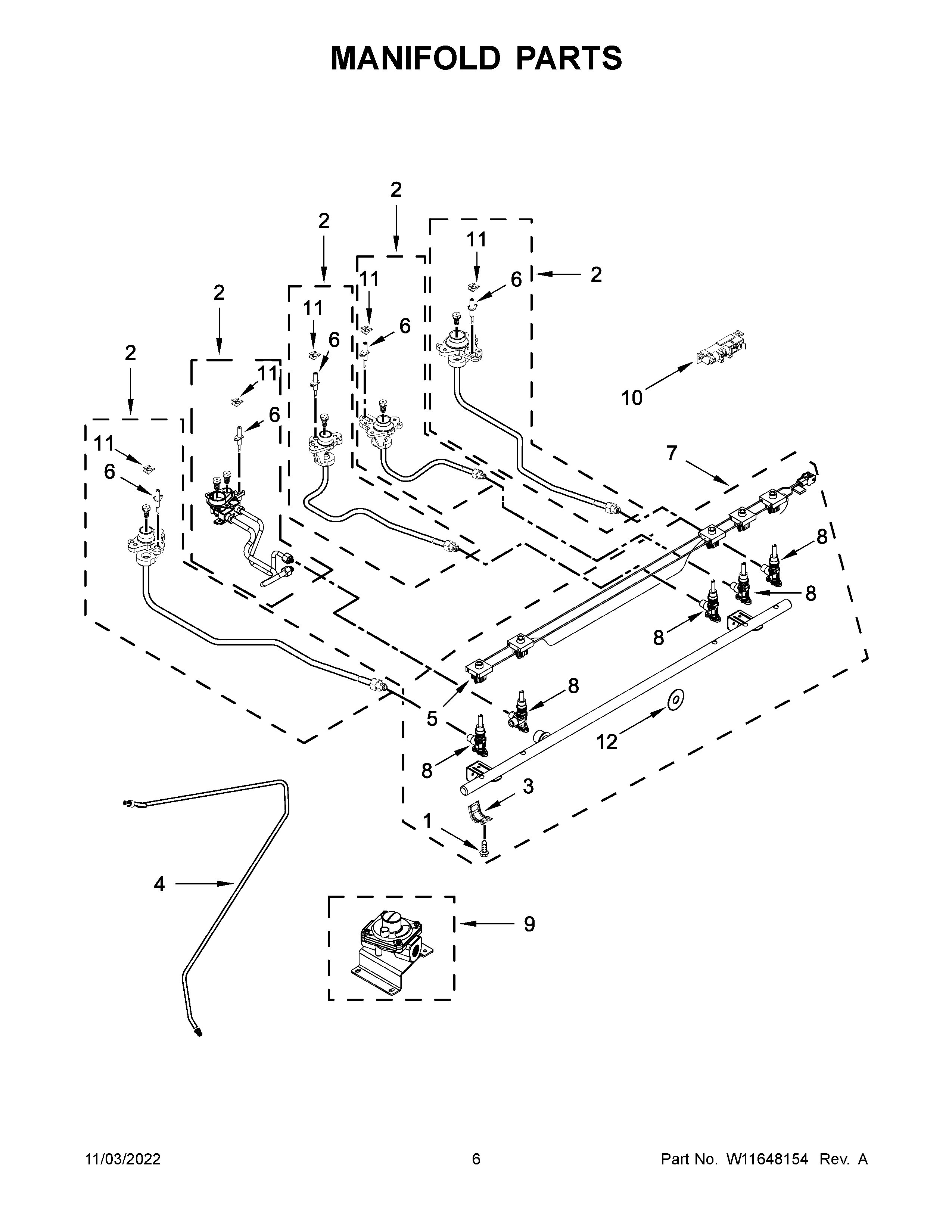

KSDB900ESS8 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11436985 Whirlpool Orifice Spud
NI	WPW10182767 Whirlpool Wire Tie
1	W10295997 Whirlpool Screw
2D	W11186518 Whirlpool Range Orifice Holder
2B	W11186526 Whirlpool Range Orifice Holder
2A	W11186509 Whirlpool Orifice Holder
2	W11445309 Whirlpool Orifice Holder
2C	W11186522 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10552945 Whirlpool Gas Tubing
5	W11376663 Whirlpool Wire Harness
6B	W11643126 Whirlpool Surface Igniter
6C	W11661897 Whirlpool Range Surface Igniter
6	W11675301 Whirlpool Range Surface Igniter
6A	W11666003 Whirlpool Range Surface Igniter
7	W11679667 Whirlpool Manifold
8	W11109973 Whirlpool Burner Valve
8A	W10873134 Whirlpool Burner Valve
8B	W11241561 Whirlpool Burner Valve
8C	W11233561 Whirlpool Burner Valve
9	W10661850 Whirlpool Regulator
10	WPW10475149 Whirlpool Spark Module
11	W11684564 Whirlpool Clip Assembly
12	W10140571 Whirlpool Seal Switch
