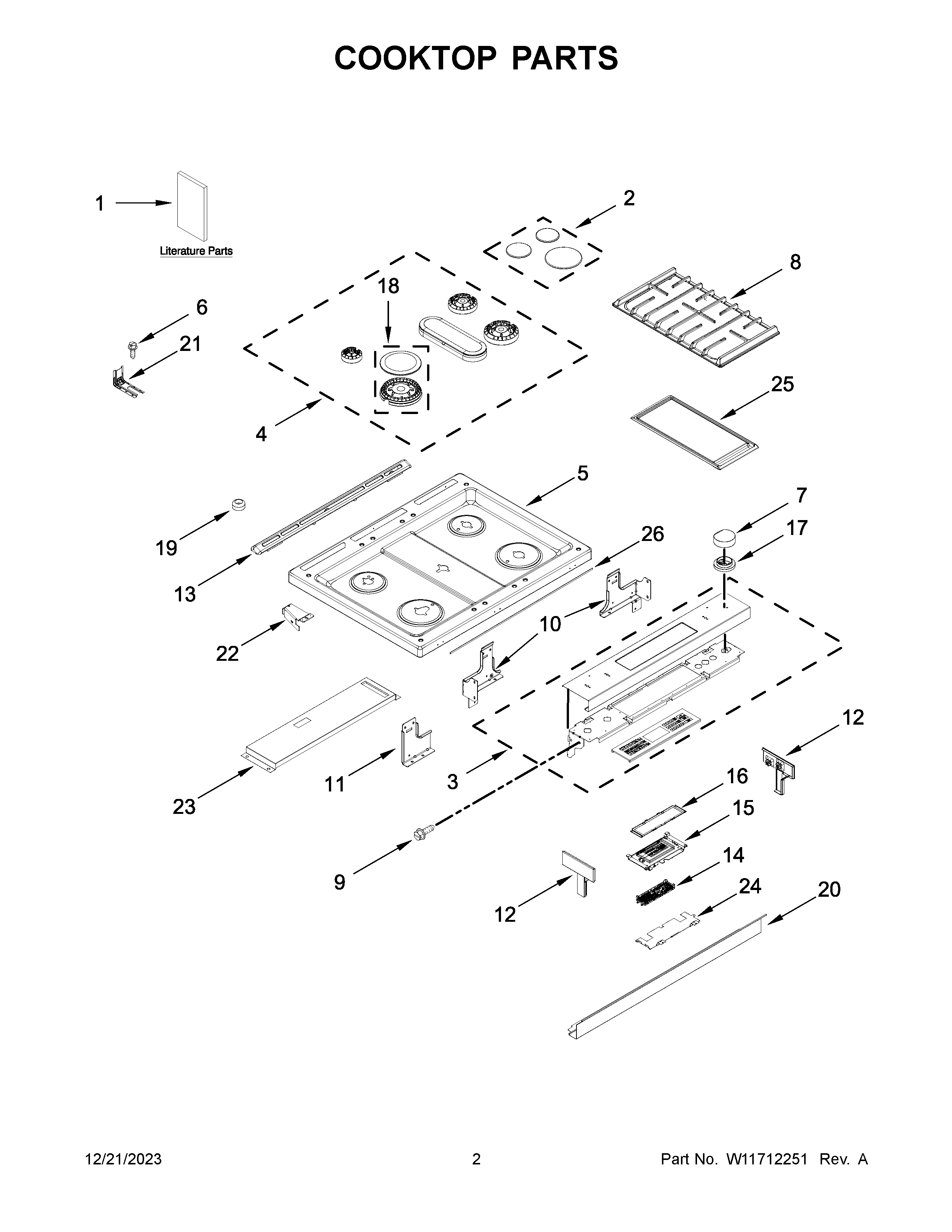

KSDB900ESS9 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10580316 Whirlpool Wire Harness
NI	W11176109 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	W11025616 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1B	TECH SHEET
1A	QUICK START GUIDE (ENGLISH)
1	USE AND CARE GUIDE
2	W11605764 Whirlpool Burner Cap
3	W10913685 Whirlpool Control Panel
4	W11662377 Whirlpool Range Burner Head
5	W11445310 Whirlpool Cooktop Assembly
6	SCREW, ANTI-TIP KIT
7	W10872674 Whirlpool Knob
7A	W10872668 Whirlpool Control Knob
8	W11241056 Whirlpool Grate Kit
9	WP3196557 Whirlpool Screw
10	BRACKET,SUPPORT (LEFT)
10A	BRACKET, SUPPORT (RIGHT)
11	W10598048 Whirlpool Support Bracket
12	W10555937 Whirlpool Endcap Panel
12A	W10555940 Whirlpool Endcap Panel
13	W11170796 Whirlpool Vent Trim
14	W11620583-includeCORE Whirlpool W11620583 Refrigerator Electronic Control Board + Core
15	W11128223 Whirlpool Display
16	W10555923 Whirlpool Mounting Bracket
17	W10814133 Whirlpool Knob Bezel
18	W11443594 Whirlpool Burner Head
19	W11690600 Whirlpool Bumper
20	W10743276 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W11355689 Whirlpool Shield
24	W10558372 Whirlpool Bracket Mounting
25	W10432544 Whirlpool Range Griddle
26	GASKET, CONSOLE AND COOKTOP
