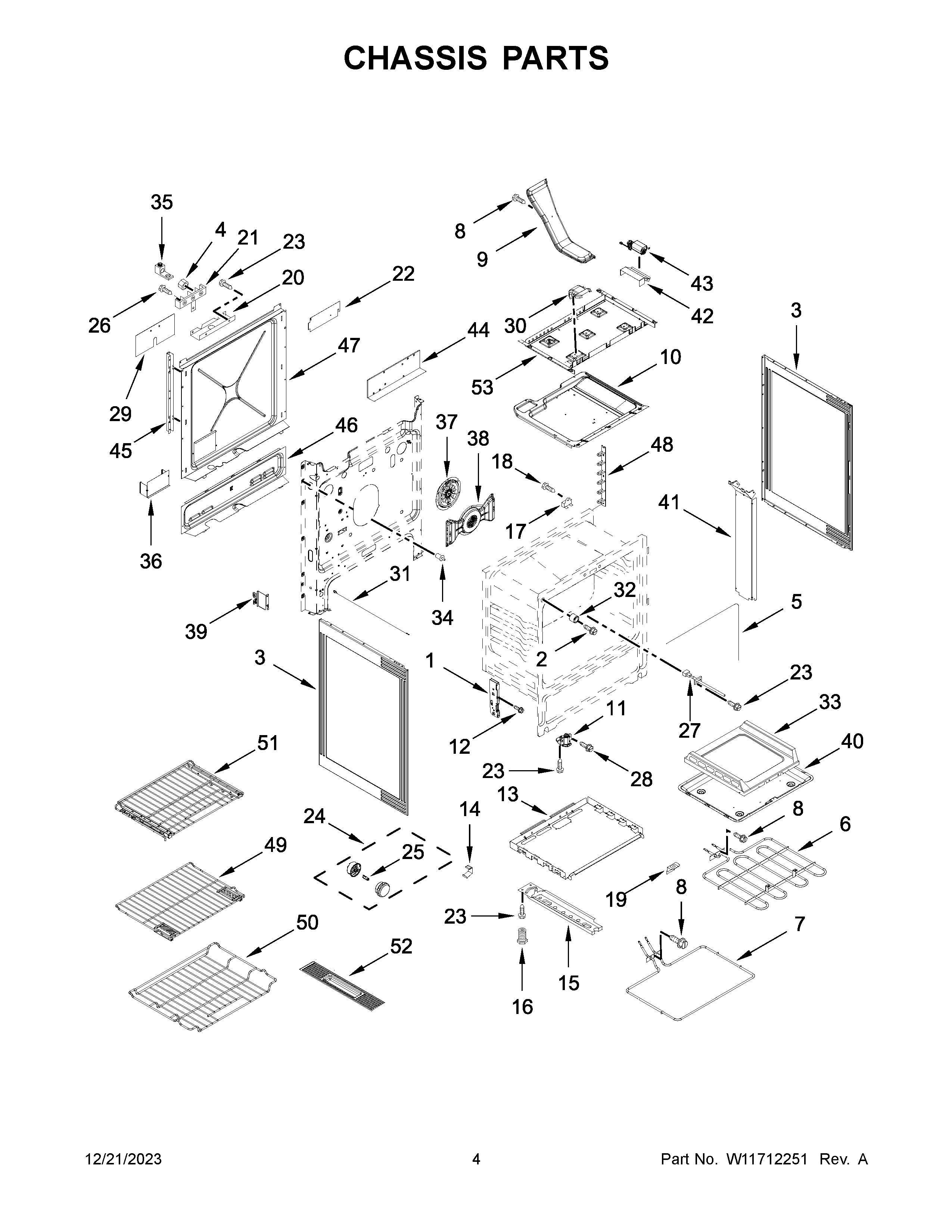

KSDB900ESS9 03 – CHASSIS PARTS

KSDB900ESS9 03 – CHASSIS PARTS

Written by

in

KSDB900ESS9 03 – CHASSIS PARTS

Products

Position	Product
NI	W11688815 Whirlpool Insulation
NI	CLAMP, WIRE
NI	W11688730 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10655489 Whirlpool Insulation
NI	INSULATION, STRAP
NI	INSULATION, HEAT SHIELD
1	W10647259 Whirlpool Hinge Receiver
3	W11730303 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11562931 Whirlpool Door Gasket
6	W11238400 Whirlpool Broil Element
7	W10779716 Whirlpool Oven Bake Element
9	W11122085 Whirlpool Vent Tube
10	W10289168 Whirlpool Burner Box
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	W10541959 Whirlpool Heat Shield Assembly
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10035900 Whirlpool Support Bracket
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	W10818358 Whirlpool Shield
23	SCREW
24	W11707255 Whirlpool Light
25	BULB-LIGHT
26	WP3400016 Whirlpool Screw Assembly
27	SENSOR-RANGE
28	WP3196557 Whirlpool Screw
29	W10655441 Whirlpool Insulation Wire
30	W10162257 Whirlpool HVAC Air Duct
31	W11370463 Whirlpool Door Rod Assembly
32	W10877054 Whirlpool Spacer Assembly
33	W10777210 Whirlpool Oven Bottom
34	SWTCH-LITE
35	WPW10281322 Whirlpool Connector
36	W10162258 Whirlpool Cover Assembly
37	W11414552 Whirlpool Convection Fan
38	W11676564 Whirlpool Baffle Conveyor
39	W10273002 Whirlpool Support Bracket
40	W11379357 Whirlpool Overflow Pan
41	W10162255 Whirlpool Exhaust Cover
42	W10162254 Whirlpool Air Duct
43	W11620737 Whirlpool Blower Fan
44	W10162260 Whirlpool Heat Shield
45	W10162241 Whirlpool Channel
46	W10575377 Whirlpool Wire Cover Assembly
47	W11379354 Whirlpool Rear Cover
48	W10603482 Whirlpool Oven Rack
49	W11673270 Whirlpool Oven Rack
50	W11256463 Whirlpool Oven Rack
51	W11225131 Whirlpool Oven Rack
52	W11403917 Whirlpool Reservoir Assembly
53	W11320442 Whirlpool Burner Box
