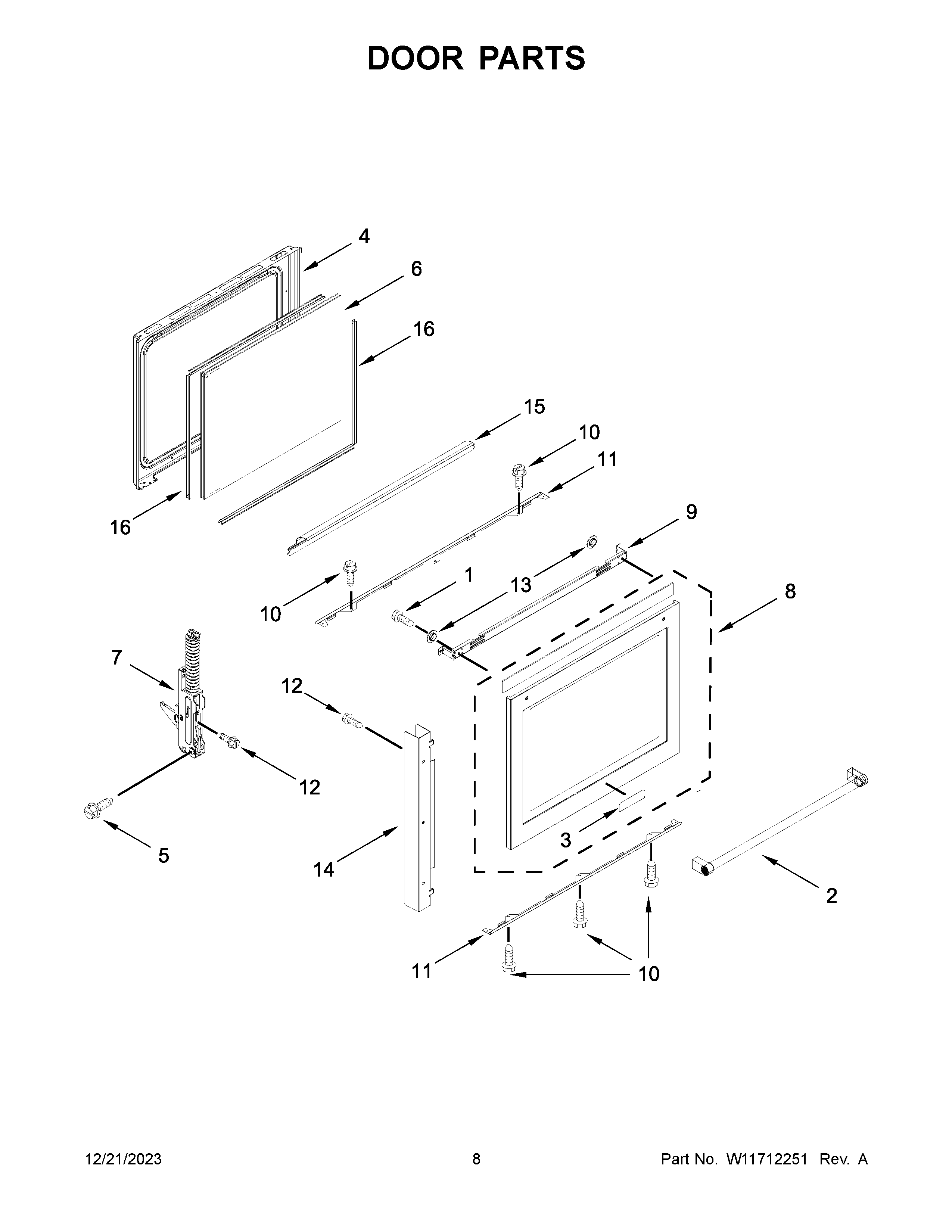

KSDB900ESS9 05 – DOOR PARTS

KSDB900ESS9 05 – DOOR PARTS

Written by

in

KSDB900ESS9 05 – DOOR PARTS

Products

PositionProduct
1W11245710 Whirlpool Refrigerator Screw
2W11691365 Whirlpool Handle – Door
3W10839793 Whirlpool Refrigerator Nameplate
4W10902192 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6W11339500 Whirlpool Door Glass
7W11162113 Whirlpool Door Hinge
8WPW10634271 Whirlpool Range Outer Door Glass
9W10541911 Whirlpool Mounting Bracket
10WP355214 Whirlpool Screw
11W10813140 Whirlpool Glass Bracket
12W10777162 Whirlpool Screw
13W11676355 Whirlpool Washer
14W11744483 Whirlpool Support
15W11251351 Whirlpool Vent Trim
16W11673273 Whirlpool Spacer Glass
