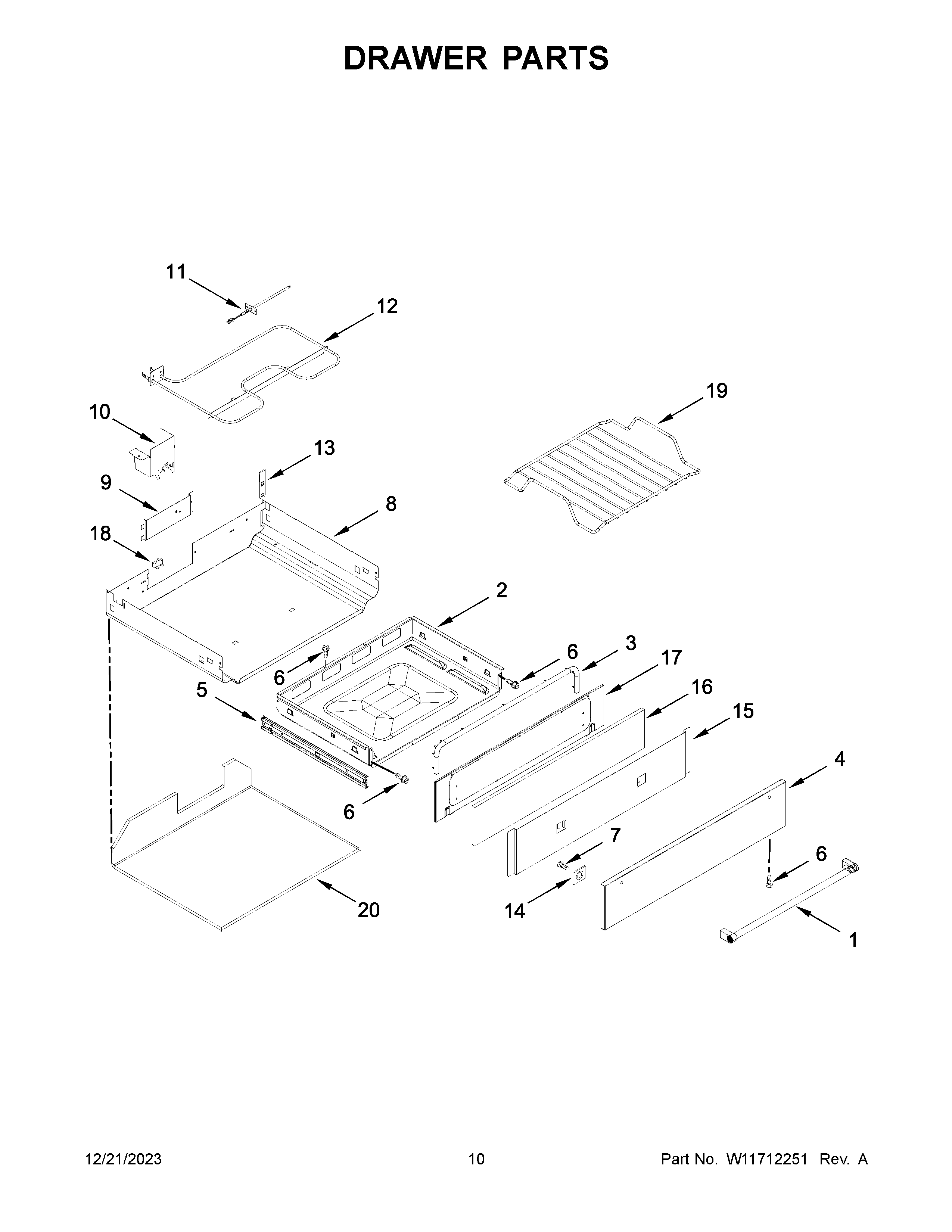

KSDB900ESS9 06 – DRAWER PARTS

KSDB900ESS9 06 – DRAWER PARTS

Written by

in

KSDB900ESS9 06 – DRAWER PARTS

Products

PositionProduct
1W11691365 Whirlpool Handle – Door
2W11036176 Whirlpool Utility Drawer
3W10550987 Whirlpool Door Seal
4W10861216 Whirlpool Drawer Panel
5W11670722 Whirlpool Drawer Slide
5AW11670723 Whirlpool Drawer Slide
6WP355214 Whirlpool Screw
7WP3400882 Whirlpool Screw
8W10634260 Whirlpool Utility Drawer
9COVER, GAS VALVE
10W10634259 Whirlpool Wire Cover
11W11676788 Whirlpool Sensor
12W10541944 Whirlpool Bake Element
13W10551019 Whirlpool Clip
14SPACER, HANDLE
15W10551018 Whirlpool Drawer Panel
16W11688515 Whirlpool Insulation Assembly
17W10541947 Whirlpool Drawer Panel
18W10729897 Whirlpool Thermal Fuse
19W10602493 Whirlpool Oven Rack
20W11688775 Whirlpool Insulation
