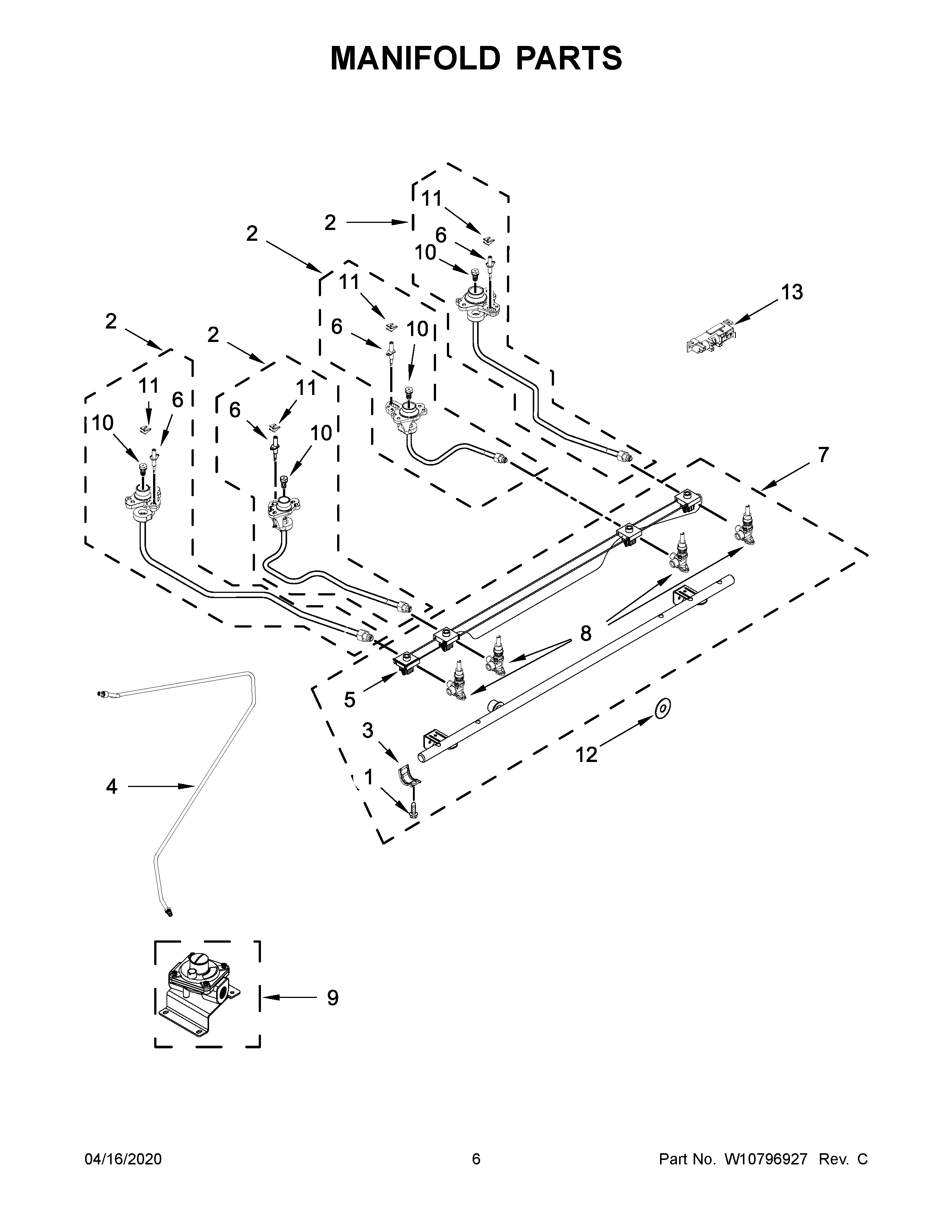

KSDG950ESS0 04 – MANIFOLD PARTS

KSDG950ESS0 04 – MANIFOLD PARTS

Written by

in

KSDG950ESS0 04 – MANIFOLD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NISPUD-ORFCE
1W10295997 Whirlpool Screw
2W11628649 Whirlpool Orifice Holder
2CW10669617 Whirlpool Orifice Holder
2BW10669616 Whirlpool Orifice Holder
2AW10552119 Whirlpool Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10552945 Whirlpool Gas Tubing
5W10669619 Whirlpool Wire Harness
6BELECTRODE (LEFT REAR)
6W11220383 Whirlpool Surface Igniter
6AW11447374 Whirlpool Surface Igniter
6CW11611678 Whirlpool Surface Igniter
7W10826730 Whirlpool Manifold
8W11233561 Whirlpool Burner Valve
8AW11241561 Whirlpool Burner Valve
8BW10873134 Whirlpool Burner Valve
9W10661850 Whirlpool Regulator
10W10821182 Whirlpool Orifice
10BW11690133 Whirlpool Range Orifice Spud
10CW10756981 Whirlpool Spud Orifice
10ASPUD-ORFCE
11AW10256046 Whirlpool Clip
11W11190173 Whirlpool Clip
12W10140571 Whirlpool Seal Switch
13MODULE-SPK
