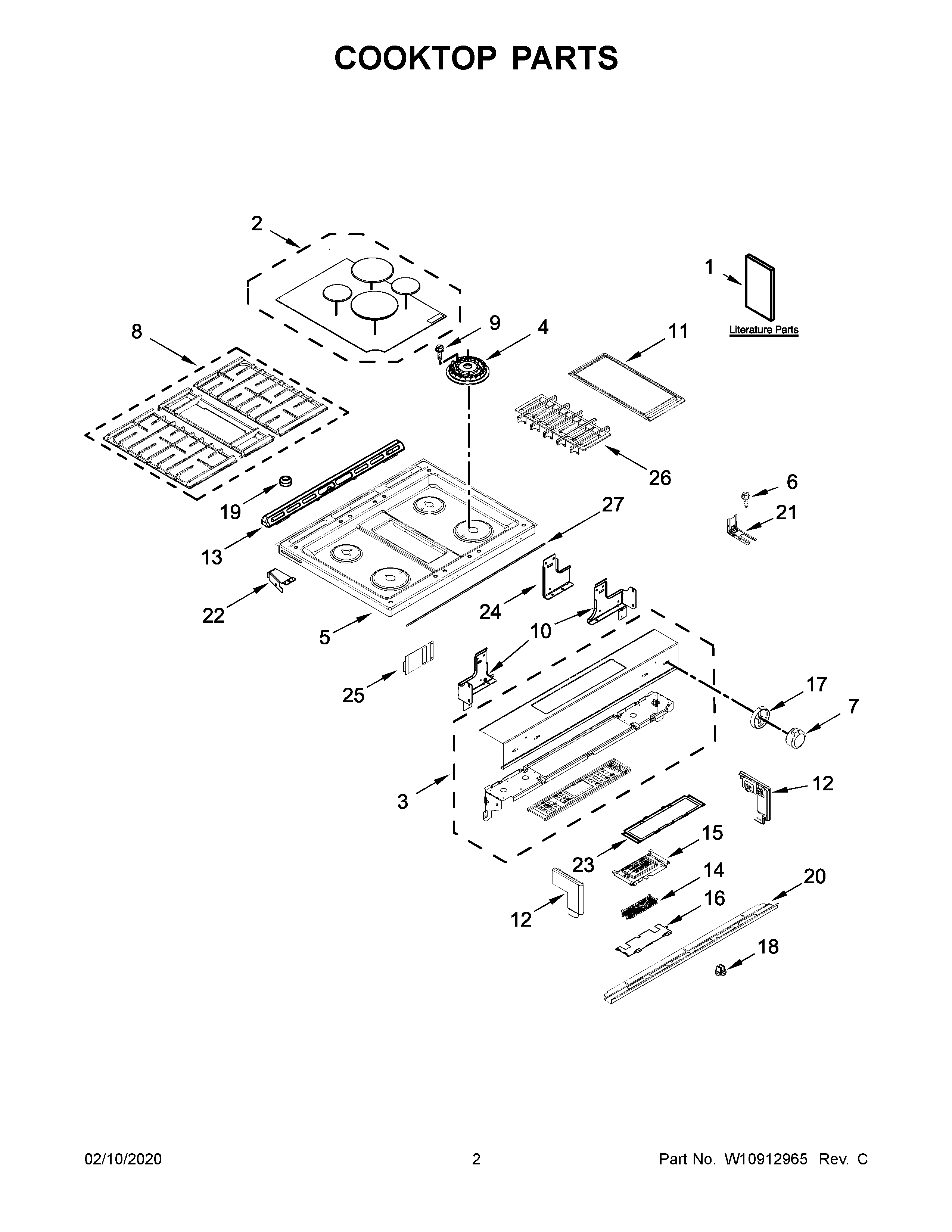

KSDG950ESS1 02 – COOKTOP PARTS

KSDG950ESS1 02 – COOKTOP PARTS

Written by

in

KSDG950ESS1 02 – COOKTOP PARTS

Products

Position	Product
NI	W10911851 Whirlpool Wire Harness
NI	W11198274 Whirlpool Wire Assembly
NI	W11176109 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
1F	QUICK START GUIDE (FRENCH)
1G	W11643128 Whirlpool Template
1E	GUIDE, QUICK START
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1D	QUICK START GUIDE (BURNER CAPS)
1A	USE AND CARE GUIDE
1C	WIRING DIAGRAM
2	WPW10300347 Whirlpool Burner Cap
3	W10915031 Whirlpool Control Panel
4B	WPW10256024 Whirlpool Head Burner
4	WPW10256028 Whirlpool Stove Surface Burner Base
4A	WPW10256025 Whirlpool Burner Head
5	W10536175 Whirlpool Cooktop Assembly
6	SCREW, ANTI-TIP KIT
7	W10872668 Whirlpool Control Knob
8	W11211507 Whirlpool Grate Assembly
9	WP3196557 Whirlpool Screw
10A	W10289169 Whirlpool Bracket Support
10	W10289170 Whirlpool Support Bracket
11	W10432544 Whirlpool Range Griddle
12	W10555937 Whirlpool Endcap Panel
12A	W10555940 Whirlpool Endcap Panel
13	W11170796 Whirlpool Vent Trim
14	W11100513-includeCORE Whirlpool W11100513 Refrigerator Electronic Control Board + Core
15	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11025100 Whirlpool Insert
19	W11104127 Whirlpool Bumper Assembly
20	W10743276 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W10757531 Whirlpool Shield
26	W10752102 Whirlpool Grille
27	W10802441 Whirlpool Gasket
