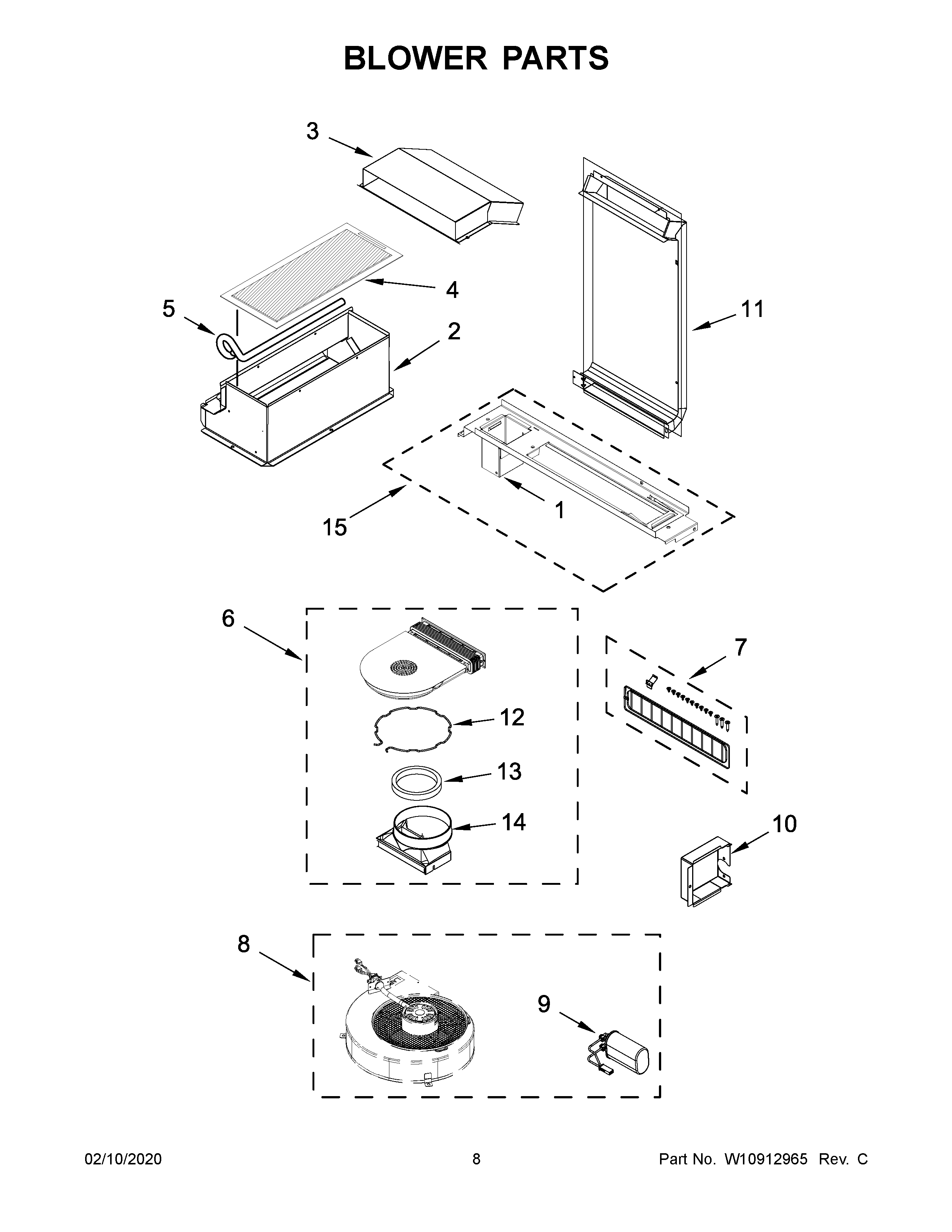

KSDG950ESS1 05 – BLOWER PARTS

Products

Position	Product
1	W10661156 Whirlpool Cover Assembly
2	W10572225 Whirlpool Air Plenum
3	W10572145 Whirlpool Air Plenum
4	W11190170 Whirlpool Filter
5	W10575393 Whirlpool Clip
6	W11129407 Whirlpool Fan Scroll
7	W11190818 Whirlpool Hardware
8	W10921431 Whirlpool Blower Motor
9	W11209781 Whirlpool Capacitor
10	W10787917 Whirlpool Cover Assembly
11	W10661835 Whirlpool Air Plenum
12	W10702071 Whirlpool Clamp
13	W10759311 Whirlpool Gasket
14	W10642096 Whirlpool Air Plenum
15	W10789390 Whirlpool Mounting Bracket
