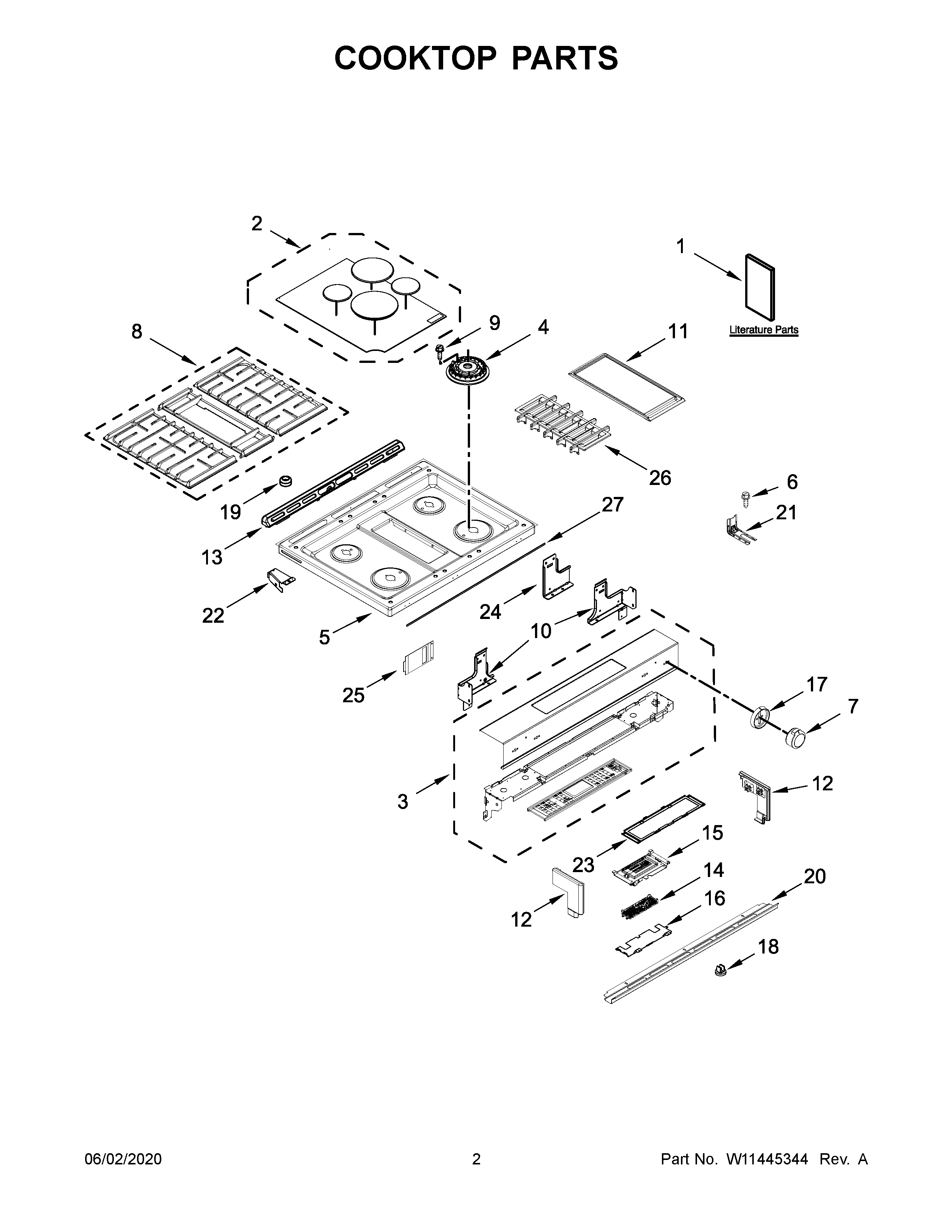

KSDG950ESS2 02 – COOKTOP PARTS

KSDG950ESS2 02 – COOKTOP PARTS

KSDG950ESS2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11176109 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NIW11175842 Whirlpool Suppressor
NIW11198274 Whirlpool Wire Assembly
NIW10911851 Whirlpool Wire Harness
1CWIRING DIAGRAM
1FW11643128 Whirlpool Template
1INSTALLATION INSTRUCTIONS
1EQUICK START GUIDE (FRENCH)
1DGUIDE, QUICK START
1AUSE AND CARE GUIDE
1BSHEET, TECH
2W11605759 Whirlpool Burner Cap
3W10915031 Whirlpool Control Panel
4W11435630 Whirlpool Oven Burner Head
4BW11435657 Whirlpool Burner Head
4AW11435659 Whirlpool Burner Head
5W11117943 Whirlpool Cooktop
6SCREW, ANTI-TIP KIT
7W10872668 Whirlpool Control Knob
8W11451474 Whirlpool Range Grate Kit
9WP3196557 Whirlpool Screw
10AW10289169 Whirlpool Bracket Support
10W10289170 Whirlpool Support Bracket
11W10432544 Whirlpool Range Griddle
12W10555937 Whirlpool Endcap Panel
12AW10555940 Whirlpool Endcap Panel
13W11170796 Whirlpool Vent Trim
14W11100513-includeCORE Whirlpool W11100513 Refrigerator Electronic Control Board + Core
15W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16W10558372 Whirlpool Bracket Mounting
17W10814133 Whirlpool Knob Bezel
18W11025100 Whirlpool Insert
19W11690600 Whirlpool Bumper
20W10743276 Whirlpool Mounting Bracket
21W11502257 Whirlpool Anchor Tip
22AW10162252 Whirlpool Bracket Mounting
22W10162253 Whirlpool Mounting Bracket
23W10555923 Whirlpool Mounting Bracket
24W10598048 Whirlpool Support Bracket
25W11355689 Whirlpool Shield
26W11451445 Whirlpool Grille Assembly
27W10802441 Whirlpool Gasket
