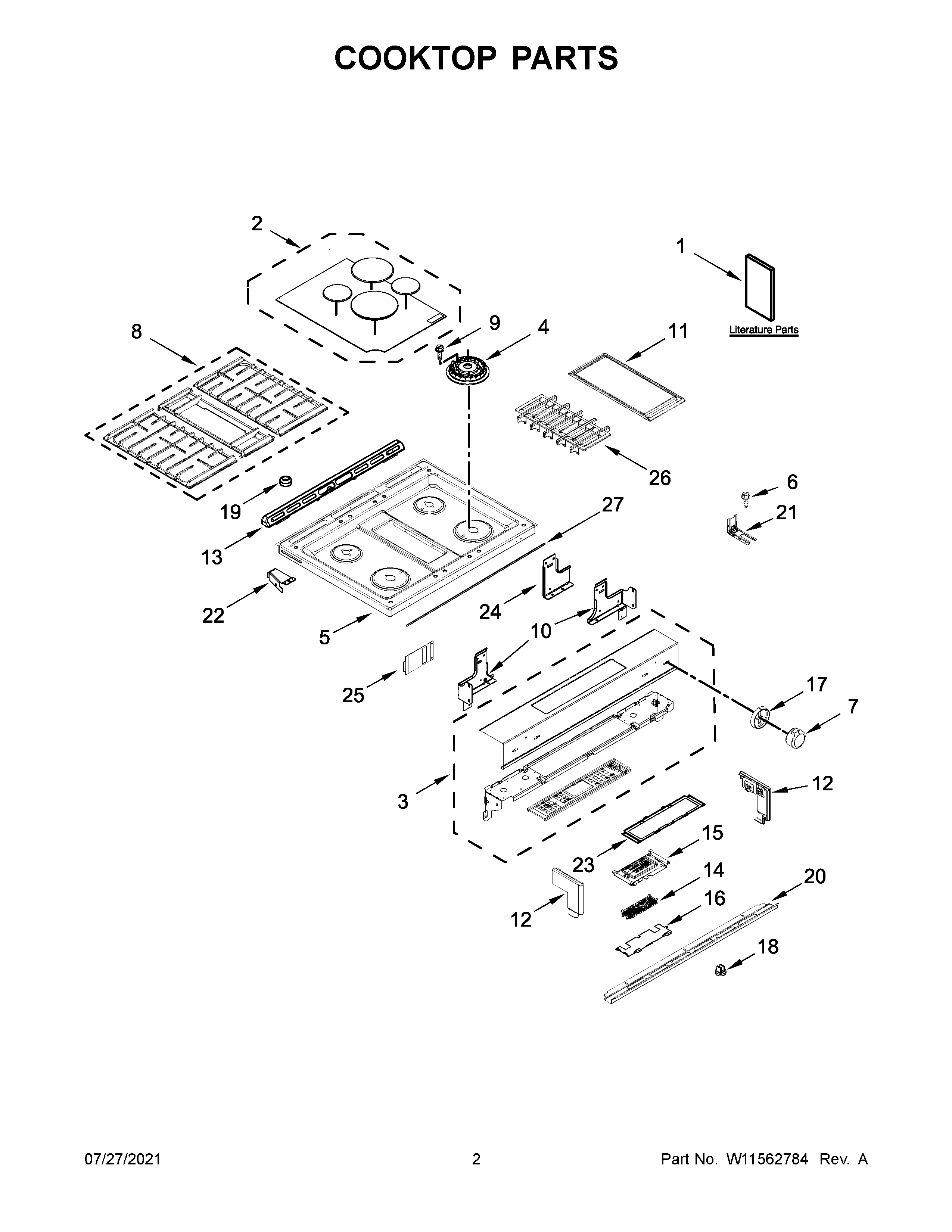

KSDG950ESS3 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11176109 Whirlpool Wire Harness
NI	W11451578 Whirlpool Wire Harness
NI	W11198274 Whirlpool Wire Assembly
NI	W11025616 Whirlpool Wire Harness
NI	W11175842 Whirlpool Suppressor
1C	GUIDE, QUICK START
1E	W11643128 Whirlpool Template
1B	TECH SHEET
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE
1D	QUICK START GUIDE (FRENCH)
2	W11605759 Whirlpool Burner Cap
3	W10915031 Whirlpool Control Panel
4A	W11435659 Whirlpool Burner Head
4	W11435630 Whirlpool Oven Burner Head
4B	W11435657 Whirlpool Burner Head
5	W11117943 Whirlpool Cooktop
6	SCREW, ANTI-TIP KIT
7	W10872668 Whirlpool Control Knob
8	W11451474 Whirlpool Range Grate Kit
9	WP3196557 Whirlpool Screw
10A	W10289169 Whirlpool Bracket Support
10	W10289170 Whirlpool Support Bracket
11	W10432544 Whirlpool Range Griddle
12	W10555937 Whirlpool Endcap Panel
12A	W10555940 Whirlpool Endcap Panel
13	W11170796 Whirlpool Vent Trim
14	W11100513-includeCORE Whirlpool W11100513 Refrigerator Electronic Control Board + Core
15	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11025100 Whirlpool Insert
19	W11690600 Whirlpool Bumper
20	W10743276 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W11355689 Whirlpool Shield
26	W11451445 Whirlpool Grille Assembly
27	W10802441 Whirlpool Gasket
