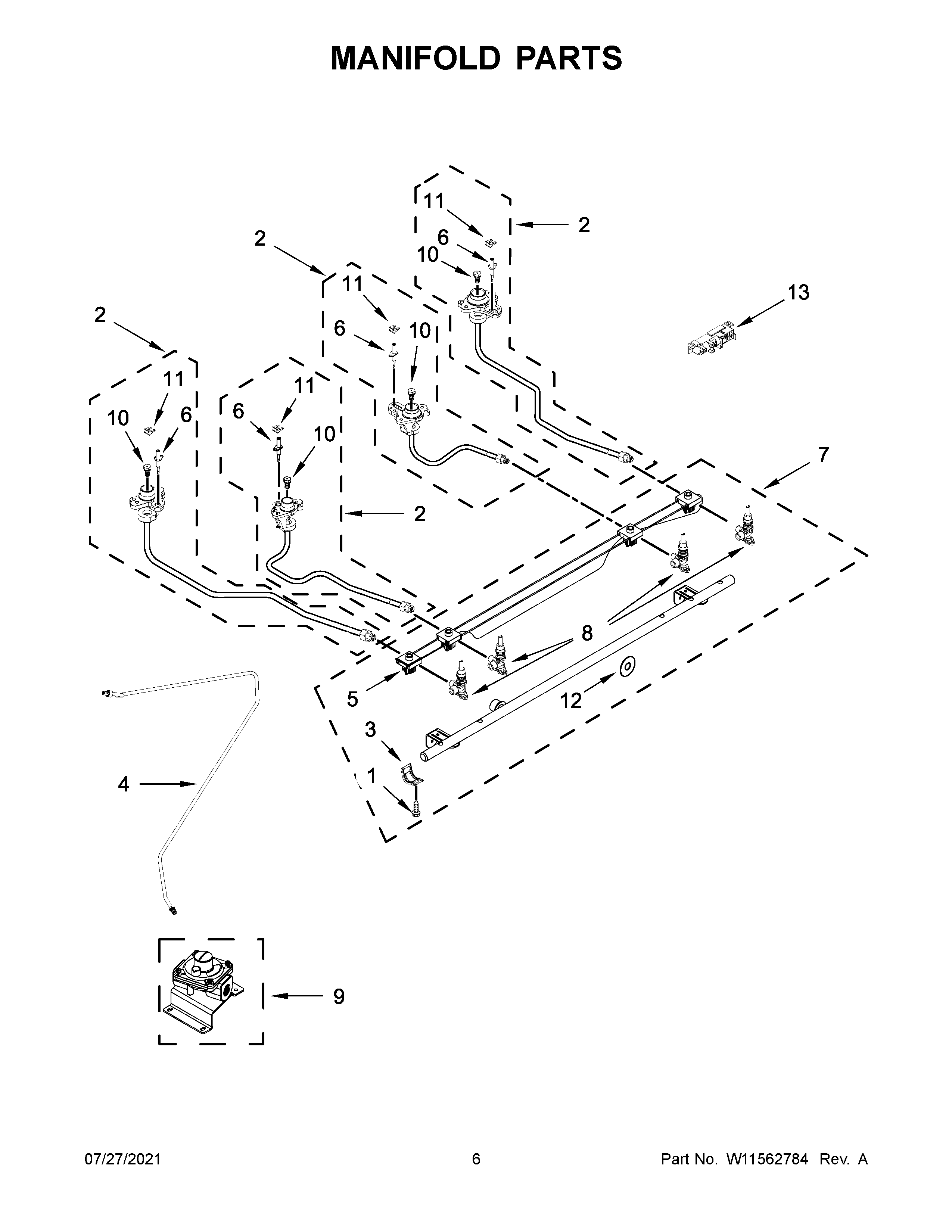

KSDG950ESS3 04 – MANIFOLD PARTS

KSDG950ESS3 04 – MANIFOLD PARTS

Written by

in

KSDG950ESS3 04 – MANIFOLD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11435676 Whirlpool Orifice Spud
NIWPW10182767 Whirlpool Wire Tie
1W10295997 Whirlpool Screw
2AW11186509 Whirlpool Orifice Holder
2BW11186526 Whirlpool Range Orifice Holder
2CW11186522 Whirlpool Orifice Holder
2W11451472 Whirlpool Range Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10552945 Whirlpool Gas Tubing
5W10669619 Whirlpool Wire Harness
6CW11661897 Whirlpool Range Surface Igniter
6W11661929 Whirlpool Surface Igniter
6BW11643126 Whirlpool Surface Igniter
6AW11666003 Whirlpool Range Surface Igniter
7W11416335 Whirlpool Manifold
8AW11451473 Whirlpool Burner Valve
8W11241561 Whirlpool Burner Valve
8BW11233561 Whirlpool Burner Valve
9W10661850 Whirlpool Regulator
10ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER)
10AW11677633 Whirlpool Spud Orifice
10BW10849717 Whirlpool Orifice Spud
10CW10849714 Whirlpool Orifice Spud
11W11684564 Whirlpool Clip Assembly
12W10140571 Whirlpool Seal Switch
13MODULE-SPK
