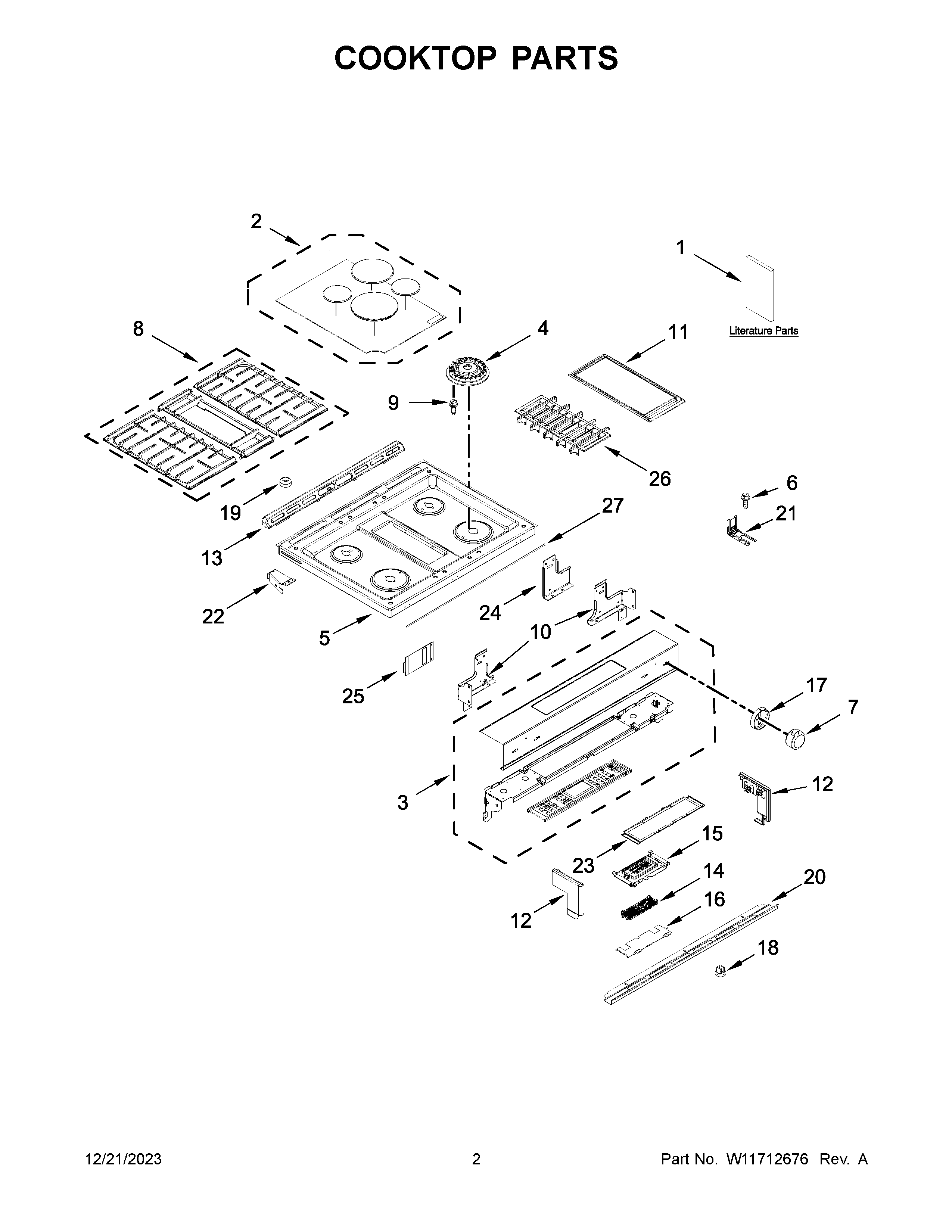

KSDG950ESS7 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11025616 Whirlpool Wire Harness
NI	W11123868 Whirlpool Venturi Assembly
NI	W11176109 Whirlpool Wire Harness
NI	W11451578 Whirlpool Wire Harness
NI	W11198274 Whirlpool Wire Assembly
1	USE AND CARE GUIDE
1A	Tech Sheet
1B	QUICK START GUIDE
1C	W11643128 Whirlpool Template
2	W11605759 Whirlpool Burner Cap
3	W10915031 Whirlpool Control Panel
4B	W11435657 Whirlpool Burner Head
4A	W11435659 Whirlpool Burner Head
4	W11435630 Whirlpool Oven Burner Head
5	W11117943 Whirlpool Cooktop
6	SCREW, ANTI-TIP KIT
7	W10872668 Whirlpool Control Knob
8	W11451474 Whirlpool Range Grate Kit
9	WP3196557 Whirlpool Screw
10A	BRACKET, SUPPORT (RIGHT)
10	BRACKET,SUPPORT (LEFT)
11	W10432544 Whirlpool Range Griddle
12A	W10555940 Whirlpool Endcap Panel
12	W10555937 Whirlpool Endcap Panel
13	W11170796 Whirlpool Vent Trim
14	W11100513-includeCORE Whirlpool W11100513 Refrigerator Electronic Control Board + Core
15	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11025100 Whirlpool Insert
19	W11690600 Whirlpool Bumper
20	W10743276 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W11355689 Whirlpool Shield
26	W11451445 Whirlpool Grille Assembly
27	GASKET, CONSOLE AND COOKTOP
