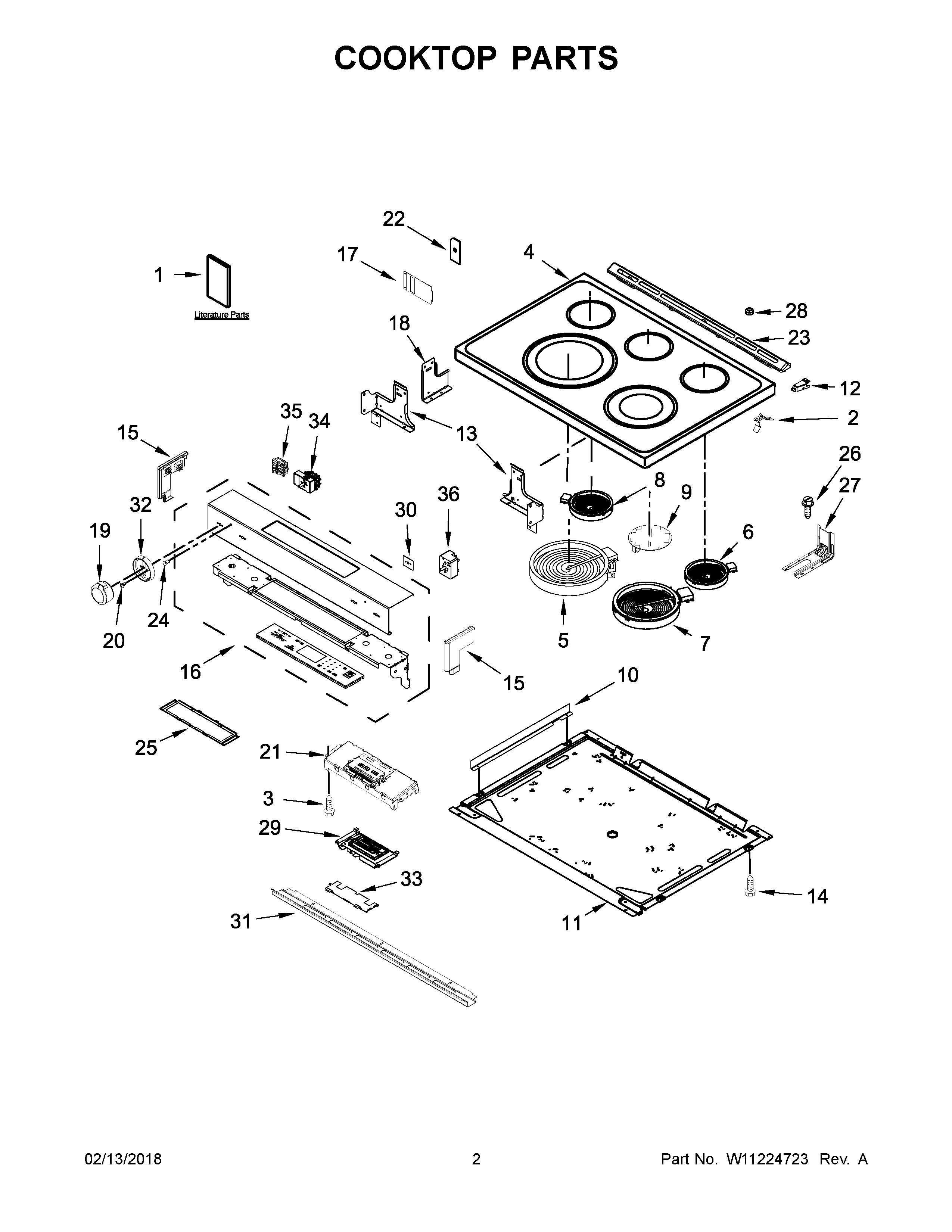

KSEB900ESS3 02 – COOKTOP PARTS

Products

PositionProduct
NIW11226772 Whirlpool Wire Harness
NIW11226786 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NIW11226773 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIW11226775 Whirlpool Wire Harness
NIW11226761 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10664316 Whirlpool Clip
1DQUICK START GUIDE (FRENCH)
1CQUICK START GUIDE
1INSTRUCTIONS, INSTALLATION
1BUSE AND CARE GUIDE
1EWIRING DIAGRAM
1ASHEET, TECH
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10814038 Whirlpool Cooktop Assembly
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10W10613286 Whirlpool Bracket
11W10536275 Whirlpool Pan
12AW10162252 Whirlpool Bracket Mounting
12W10162253 Whirlpool Mounting Bracket
13W10289169 Whirlpool Bracket Support
13AW10289170 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15AW10555940 Whirlpool Endcap Panel
15W10555937 Whirlpool Endcap Panel
16W10920246 Whirlpool Control Panel
17W10757531 Whirlpool Shield
18W10598048 Whirlpool Support Bracket
19CW10877188 Whirlpool Knob
19AW11628652 Whirlpool Knob
19W10877180 Whirlpool Control Knob
19BW11568640 Whirlpool Knob
20WP3400882 Whirlpool Screw
21W11084243 Whirlpool Electronic Control Board
22W10882900 Whirlpool Gasket
23W11170796 Whirlpool Vent Trim
24WP3196068 Whirlpool Light Lens
25W10555923 Whirlpool Mounting Bracket
26SCREW, ANTI-TIP KIT
27W11502257 Whirlpool Anchor Tip
28W11104127 Whirlpool Bumper Assembly
29W11128223 Whirlpool Display
30GASKET, SWITCH
31W10555934 Whirlpool Mounting Bracket
32W10813558 Whirlpool Knob Bezel
33W10558372 Whirlpool Bracket Mounting
34W11129442 Whirlpool Surface Infinite Element Switch
35W10917724 Whirlpool Infinite Switch
36W10911303 Whirlpool Infinite Switch
