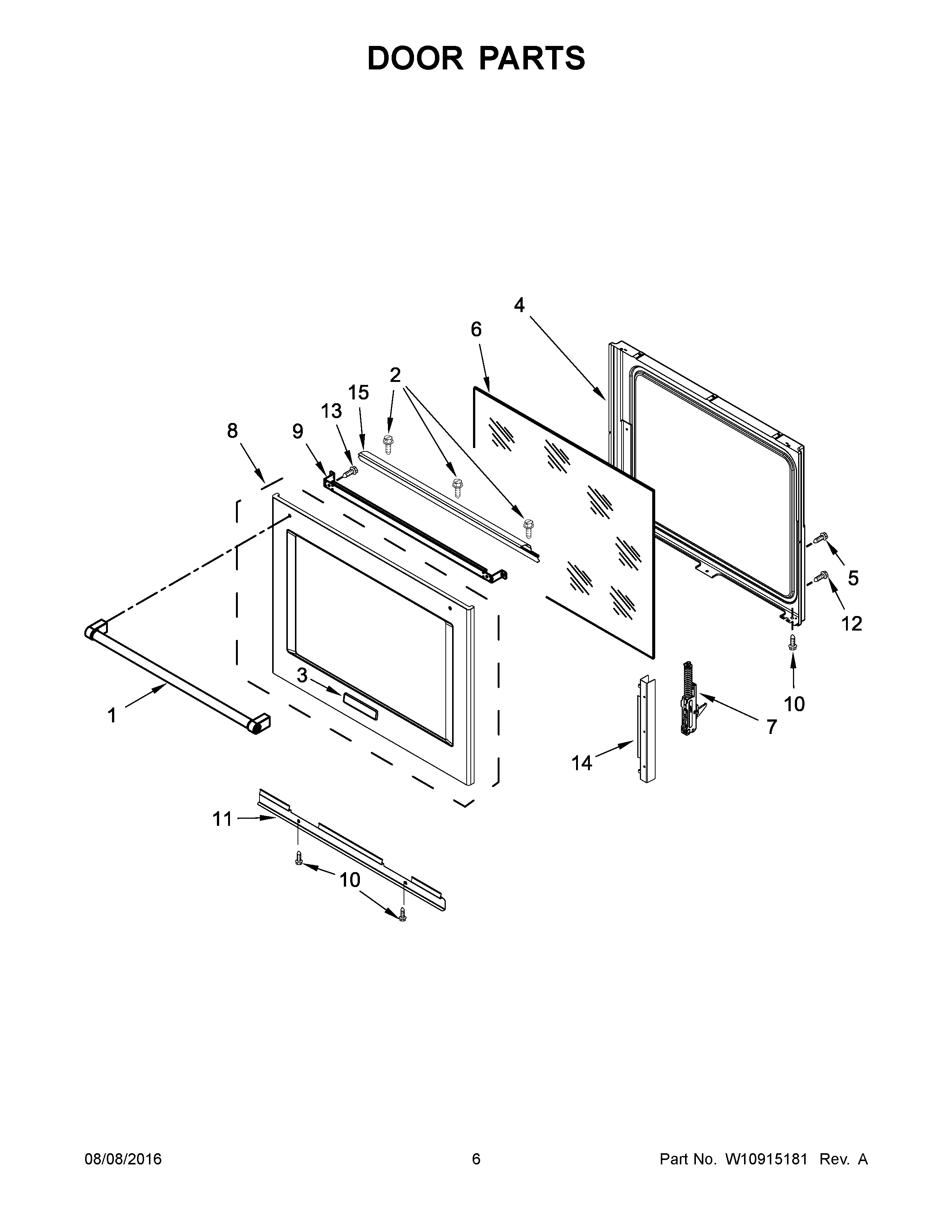

KSEG700EBL1 04 – DOOR PARTS

Products

Position	Product
1	W11104399 Whirlpool Door Handle
2	W11245710 Whirlpool Refrigerator Screw
3	W10839793 Whirlpool Refrigerator Nameplate
4	W10902192 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	W11339500 Whirlpool Door Glass
7	W11162113 Whirlpool Door Hinge
8	WPW10634273 Whirlpool Door Glass
8B	WPW10634271 Whirlpool Range Outer Door Glass
8A	WPW10634272 Whirlpool Door Glass
9	W10541911 Whirlpool Mounting Bracket
10	WP355214 Whirlpool Screw
11	W10813140 Whirlpool Glass Bracket
12	W10777162 Whirlpool Screw
13	WP8533988 Whirlpool Screw Fastener
14	W11744483 Whirlpool Support
15B	W11251351 Whirlpool Vent Trim
15	W10613790 Whirlpool Vent Trim
