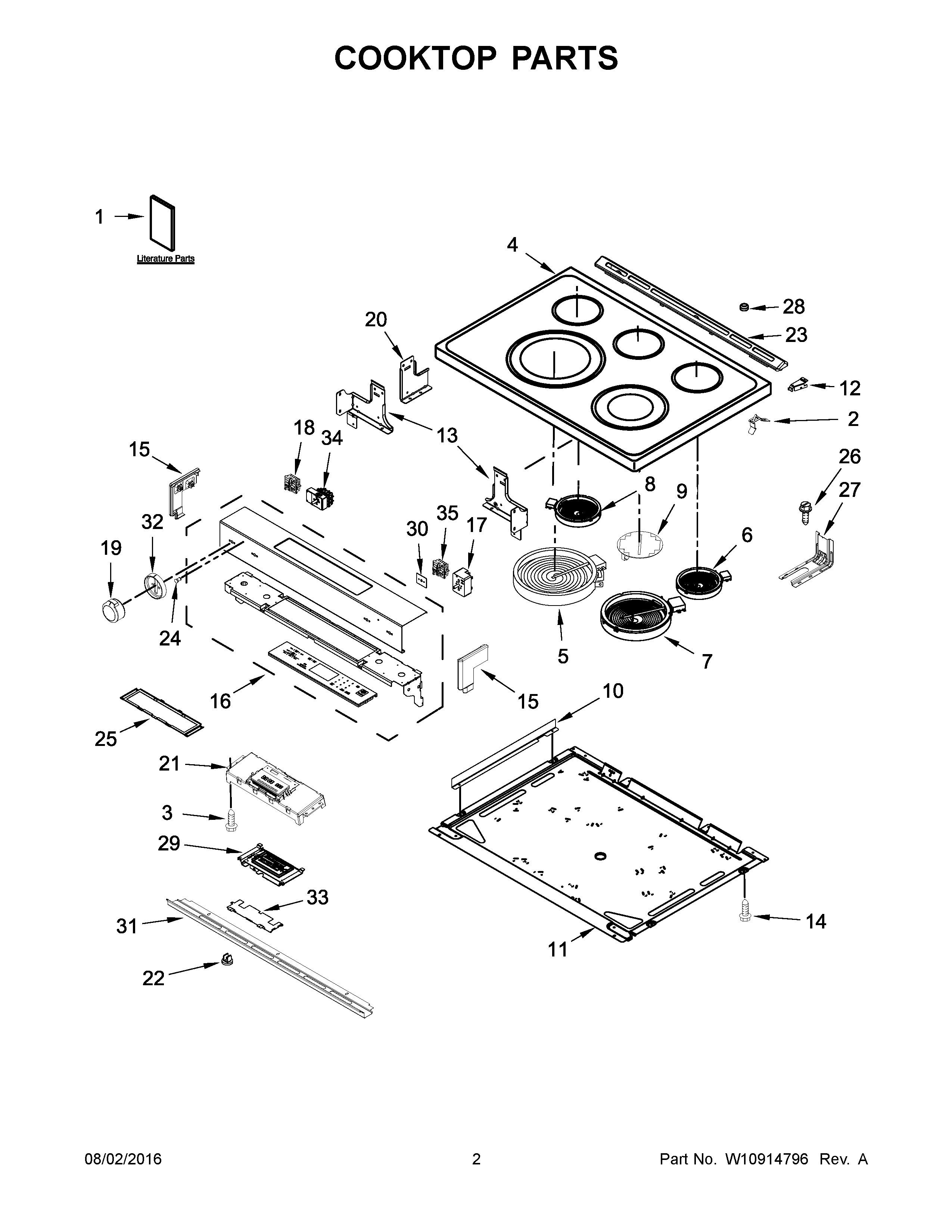

KSEG700EBS0 02 – COOKTOP PARTS

KSEG700EBS0 02 – COOKTOP PARTS

Products

PositionProduct
NIW10664316 Whirlpool Clip
NIW11226786 Whirlpool Wire Harness
NIW10580303 Whirlpool Wire Harness
NIW11226772 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NIW11188445 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1INSTRUCTIONS, INSTALLATION
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1AUSE AND CARE GUIDE
1GWIRING DIAGRAM
1BSHEET, TECH
1EQUICK START GUIDE
1FQUICK START GUIDE (FRENCH)
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10814036 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11047668 Whirlpool Surface Element
10W10613286 Whirlpool Bracket
11W10536275 Whirlpool Pan
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13AW10289170 Whirlpool Support Bracket
13W10289169 Whirlpool Bracket Support
14W11244557 Whirlpool Screw
15AW10555939 Whirlpool Endcap Panel
15W10555936 Whirlpool Endcap Panel
16W11091880 Whirlpool Control Panel
17W10911303 Whirlpool Infinite Switch
18W10917724 Whirlpool Infinite Switch
19CW10877188 Whirlpool Knob
19W11628652 Whirlpool Knob
19BW11568640 Whirlpool Knob
19AW10877180 Whirlpool Control Knob
20W10598048 Whirlpool Support Bracket
21WPW10453975-includeCORE Whirlpool WPW10453975 Refrigerator Electronic Control Board
22W11025100 Whirlpool Insert
23W11240519 Whirlpool Vent Trim
24WP3196068 Whirlpool Light Lens
25W10555923 Whirlpool Mounting Bracket
26SCREW, ANTI-TIP KIT
27W11502257 Whirlpool Anchor Tip
28W11104127 Whirlpool Bumper Assembly
29W10909684 Whirlpool Display
30GASKET, SWITCH
31W10860957 Whirlpool Mounting Bracket
32W10813558 Whirlpool Knob Bezel
33W10558372 Whirlpool Bracket Mounting
34W11129442 Whirlpool Surface Infinite Element Switch
