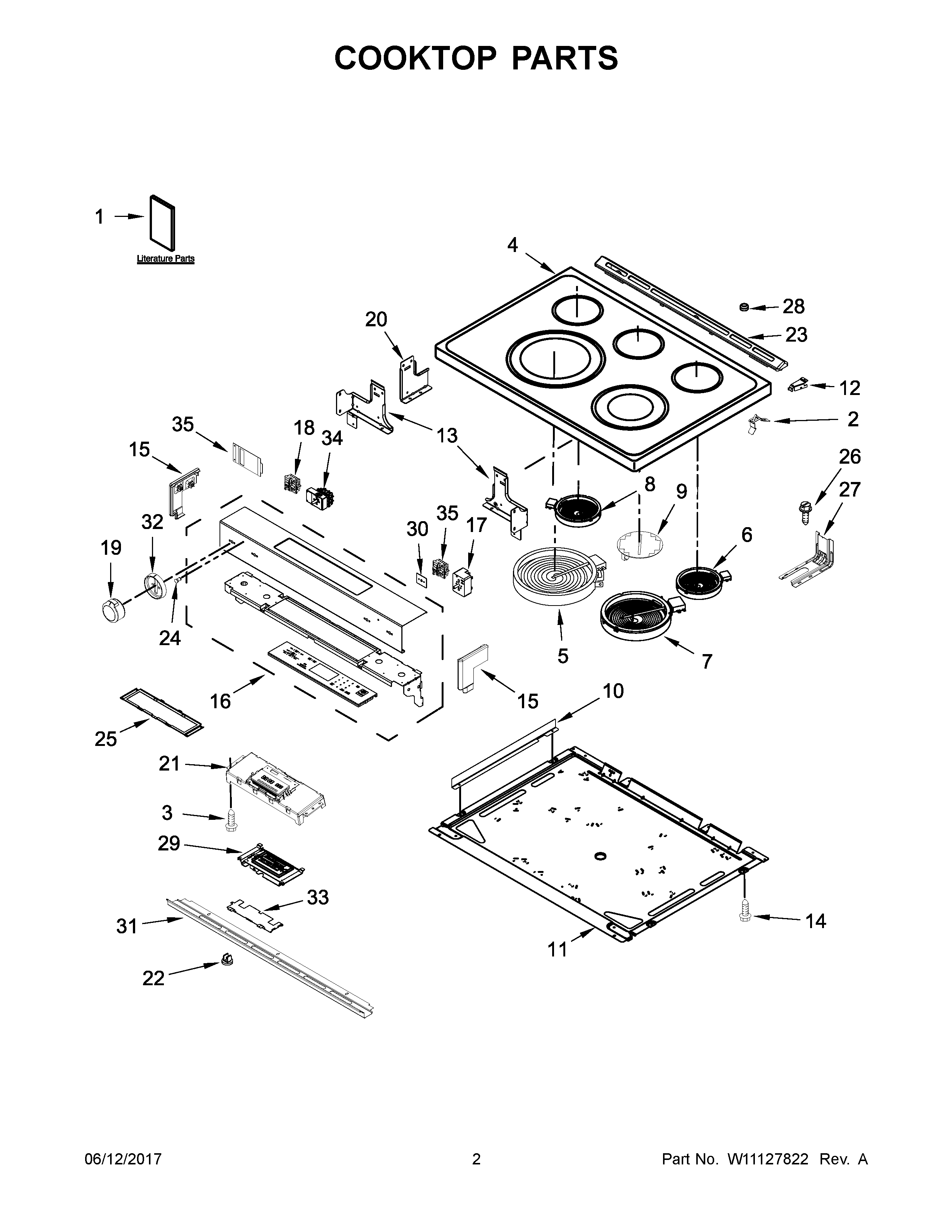

KSEG700EBS2 02 – COOKTOP PARTS

KSEG700EBS2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11226772 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NIW11226786 Whirlpool Wire Harness
NIW10664316 Whirlpool Clip
NIW11188445 Whirlpool Wire Harness
NIW10580303 Whirlpool Wire Harness
1BSHEET, TECH
1AUSE AND CARE GUIDE
1EQUICK START GUIDE
1FQUICK START GUIDE (FRENCH)
1INSTRUCTIONS, INSTALLATION
1DSafer Cooking Tips (French)
1CSAFER COOKING TIPS (ENGLISH
1GWIRING DIAGRAM
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10814036 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10W10613286 Whirlpool Bracket
11W10536275 Whirlpool Pan
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13W10289169 Whirlpool Bracket Support
13AW10289170 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15AW10913413 Whirlpool Endcap Panel
15W10913412 Whirlpool Panel End Cap
16W11091880 Whirlpool Control Panel
17W10911303 Whirlpool Infinite Switch
18W10917724 Whirlpool Infinite Switch
19AW11628652 Whirlpool Knob
19BW11568640 Whirlpool Knob
19W10877180 Whirlpool Control Knob
19CW10877188 Whirlpool Knob
20W10598048 Whirlpool Support Bracket
21W11082269-includeCORE Whirlpool W11082269 Refrigerator Electronic Control Board + Core
22W11025100 Whirlpool Insert
23W11240519 Whirlpool Vent Trim
24WP3196068 Whirlpool Light Lens
25W10555923 Whirlpool Mounting Bracket
26SCREW, ANTI-TIP KIT
27W11502257 Whirlpool Anchor Tip
28W11104127 Whirlpool Bumper Assembly
29W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
30GASKET, SWITCH
31W10860957 Whirlpool Mounting Bracket
32W10813558 Whirlpool Knob Bezel
33W10558372 Whirlpool Bracket Mounting
34W11129442 Whirlpool Surface Infinite Element Switch
35W10757531 Whirlpool Shield
