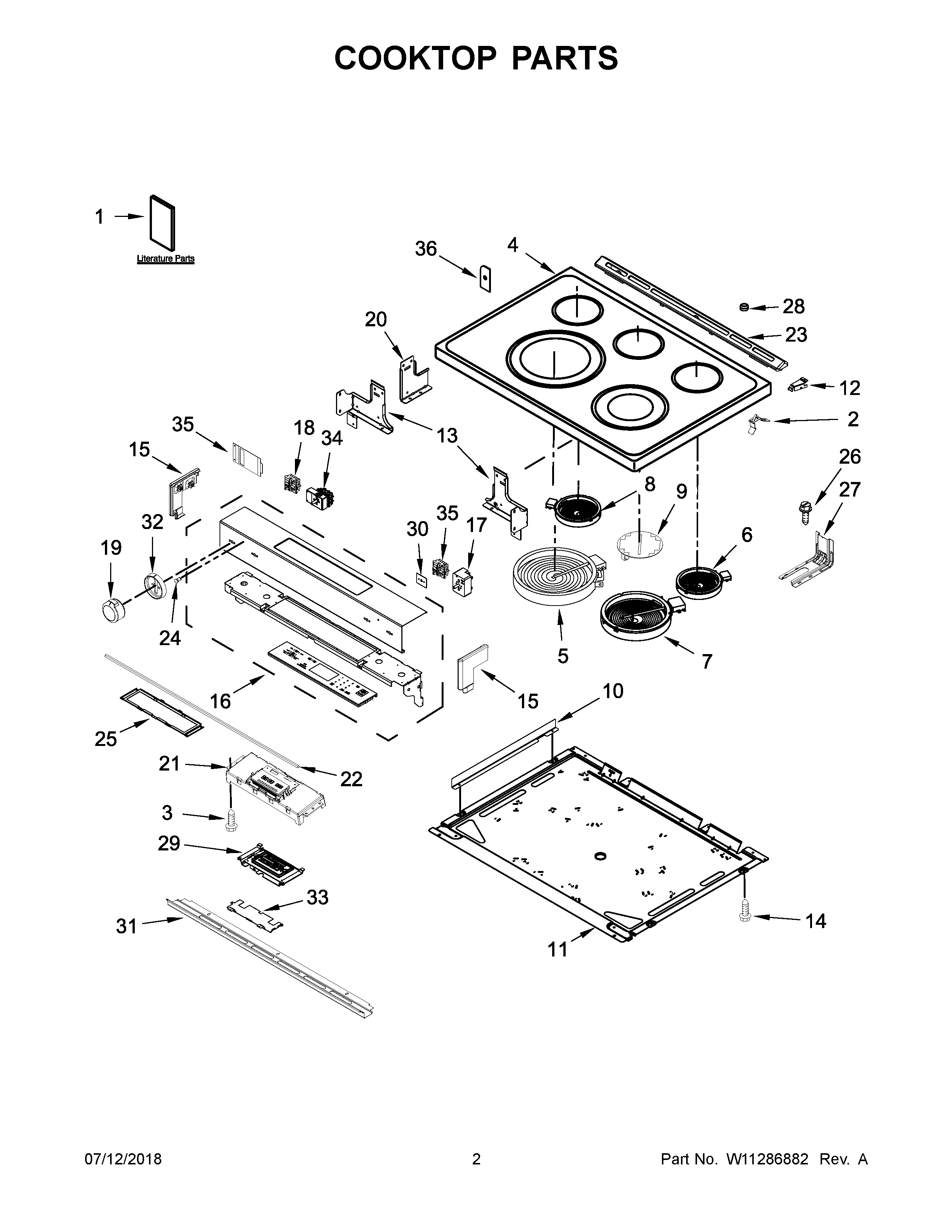

KSEG700EBS3 02 – COOKTOP PARTS

KSEG700EBS3 02 – COOKTOP PARTS

Written by

in

KSEG700EBS3 02 – COOKTOP PARTS

Products

Position	Product
NI	W10664316 Whirlpool Clip
NI	W11226773 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W11025616 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	W11175842 Whirlpool Suppressor
NI	W11188445 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11226786 Whirlpool Wire Harness
1	INSTRUCTIONS, INSTALLATION
1D	QUICK START GUIDE (FRENCH)
1B	SHEET, TECH
1A	USE AND CARE GUIDE
1C	QUICK START GUIDE
1E	WIRING DIAGRAM
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10814036 Whirlpool Cooktop
5	W11563195 Whirlpool Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11041453 Whirlpool Surface Element
10	W10613286 Whirlpool Bracket
11	W10536275 Whirlpool Pan
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10913413 Whirlpool Endcap Panel
15	W10913412 Whirlpool Panel End Cap
16	W11091880 Whirlpool Control Panel
17	W10911303 Whirlpool Infinite Switch
18	W10917724 Whirlpool Infinite Switch
19A	W11628652 Whirlpool Knob
19B	W11568640 Whirlpool Knob
19C	W10877188 Whirlpool Knob
19	W10877180 Whirlpool Control Knob
20	W10598048 Whirlpool Support Bracket
21	W11082269-includeCORE Whirlpool W11082269 Refrigerator Electronic Control Board + Core
22	W10802441 Whirlpool Gasket
23	W11240519 Whirlpool Vent Trim
24	WP3196068 Whirlpool Light Lens
25	W10555923 Whirlpool Mounting Bracket
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
30	GASKET, SWITCH
31	W10860957 Whirlpool Mounting Bracket
32	W10813558 Whirlpool Knob Bezel
33	W10558372 Whirlpool Bracket Mounting
34	W11129442 Whirlpool Surface Infinite Element Switch
35	W10757531 Whirlpool Shield
36	W10882900 Whirlpool Gasket
