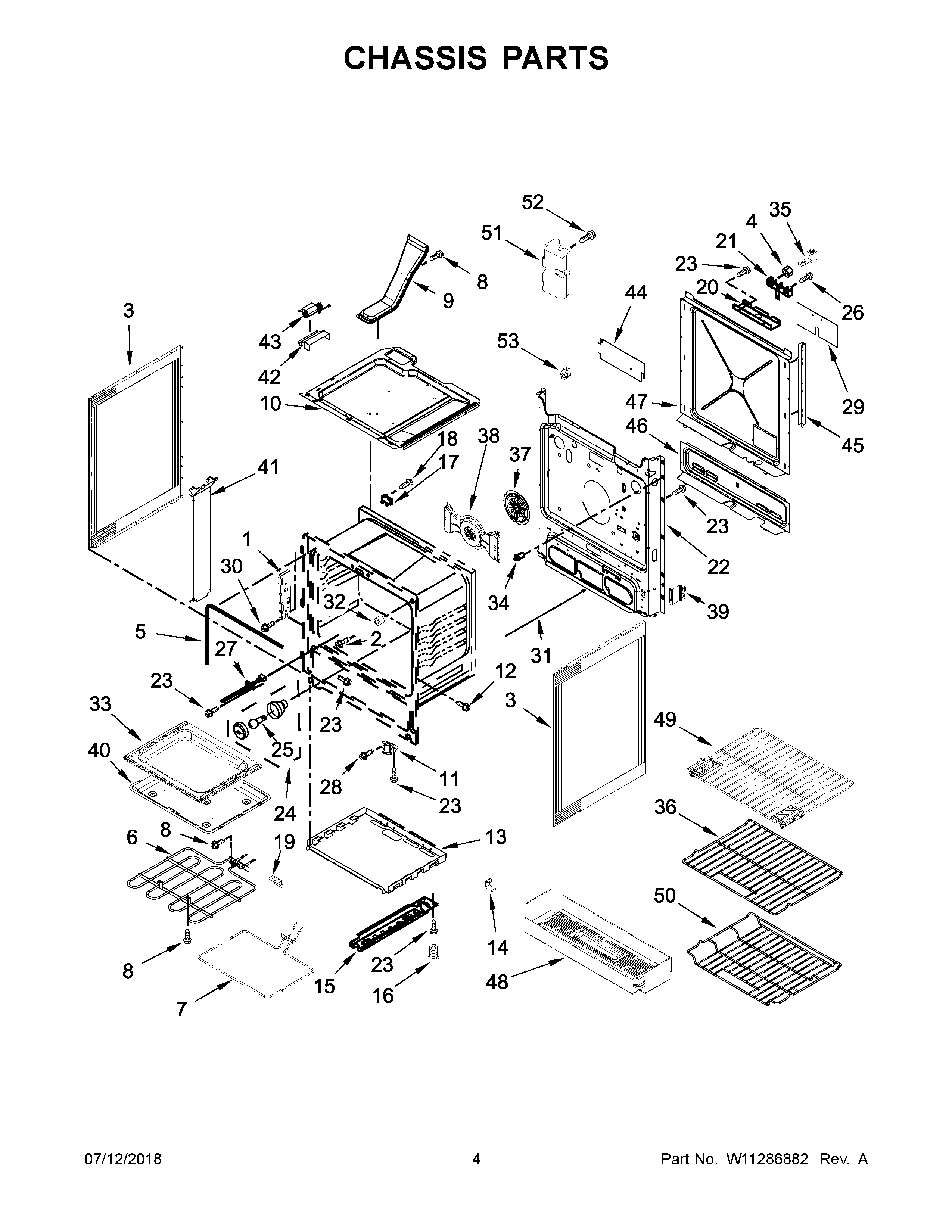

KSEG700EBS3 03 – CHASSIS PARTS

Products

Position	Product
NI	W11688363 Whirlpool Insulation
NI	CLAMP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, STRAP
NI	W11688730 Whirlpool Insulation
NI	W11688567 Whirlpool Insulation Assembly
1	W10647259 Whirlpool Hinge Receiver
2	W11169708 Whirlpool Screw
3	W11730303 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11562931 Whirlpool Door Gasket
6	W11238400 Whirlpool Broil Element
7	W10779716 Whirlpool Oven Bake Element
9	W11122085 Whirlpool Vent Tube
10	W10289168 Whirlpool Burner Box
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	W10541959 Whirlpool Heat Shield Assembly
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10035900 Whirlpool Support Bracket
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	BACK, MAIN
23	SCREW
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WP3400016 Whirlpool Screw Assembly
27	SENSOR-RANGE
28	WP3196557 Whirlpool Screw
29	W10655441 Whirlpool Insulation Wire
30	W10777162 Whirlpool Screw
31	W11370463 Whirlpool Door Rod Assembly
32	W10877054 Whirlpool Spacer Assembly
33	W10777210 Whirlpool Oven Bottom
34	WP9757262 Whirlpool Light Switch
35	WPW10281322 Whirlpool Connector
36	W11699908 Whirlpool Rack
37	W11414552 Whirlpool Convection Fan
38	W11676564 Whirlpool Baffle Conveyor
39	W10273002 Whirlpool Support Bracket
40	W11379357 Whirlpool Overflow Pan
41	W10162255 Whirlpool Exhaust Cover
42	W10162254 Whirlpool Air Duct
43	W11107275 Whirlpool Range Control Panel Cooling Fan
44	W11117035 Whirlpool Shield
45	W10162241 Whirlpool Channel
46	W10162248 Whirlpool Wire Cover
47	W11379354 Whirlpool Rear Cover
48	W11403917 Whirlpool Reservoir Assembly
49	W11673270 Whirlpool Oven Rack
50	W11256463 Whirlpool Oven Rack
51	W11217187 Whirlpool Tip Anchor
52	W11135756 Whirlpool Screw Torx
53	CLIP-PANEL, RATCHETING
