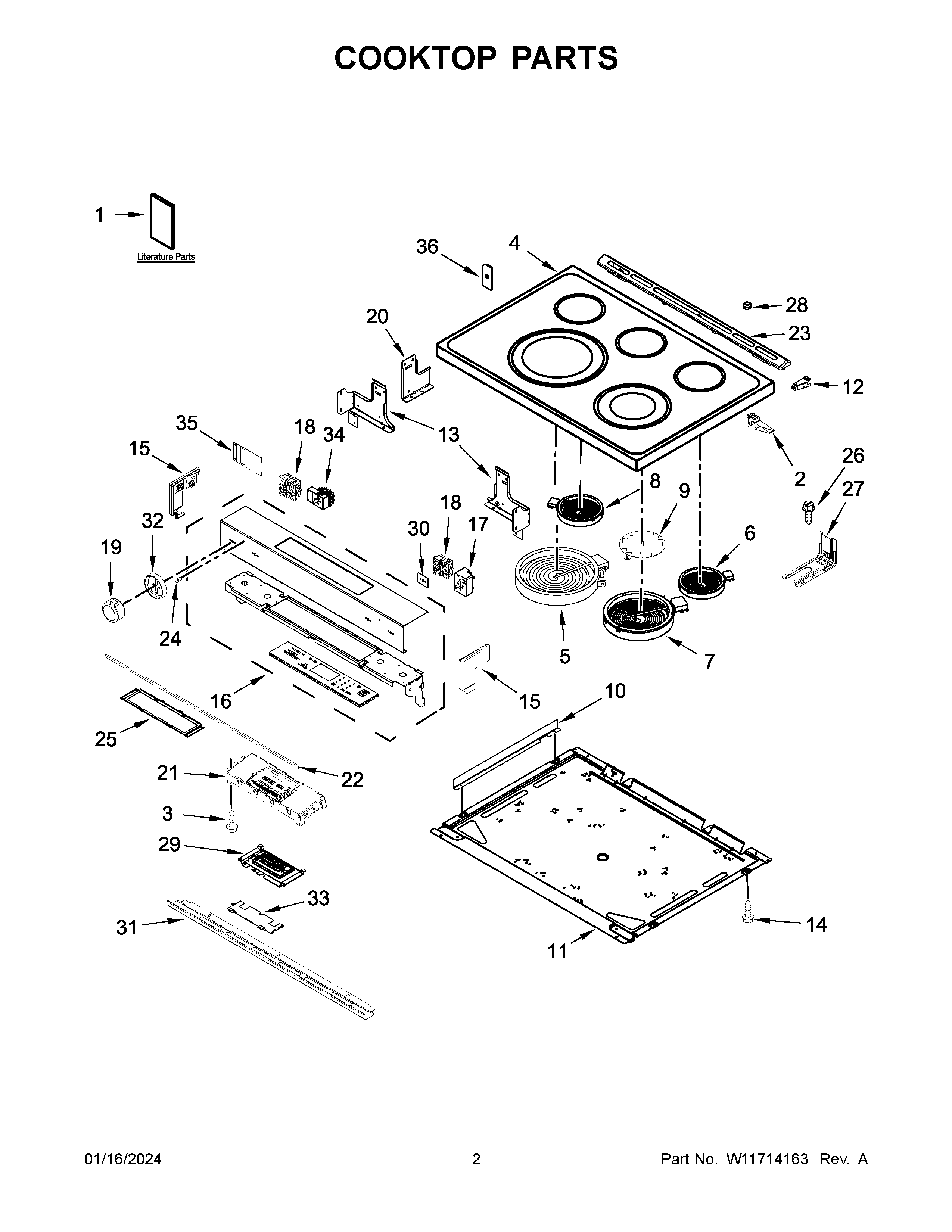

KSEG700EBS7 02 – COOKTOP PARTS

KSEG700EBS7 02 – COOKTOP PARTS

Products

PositionProduct
NIW11226772 Whirlpool Wire Harness
NIW11454505 Whirlpool Wire Harness
NIW11226773 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NIW11226786 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11175842 Whirlpool Suppressor
NIW10664316 Whirlpool Clip
1BTECH SHEET
1QUICK START GUIDE
1AOWNERS MANUAL
2W11663556 Whirlpool Spring Assembly
3SCREW
4W10814036 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10BRACKET, RADIANT
11W10536275 Whirlpool Pan
12AW10162252 Whirlpool Bracket Mounting
12W10162253 Whirlpool Mounting Bracket
13AW10289170 Whirlpool Support Bracket
13W10289169 Whirlpool Bracket Support
14W11244557 Whirlpool Screw
15AW10913413 Whirlpool Endcap Panel
15W10913412 Whirlpool Panel End Cap
16W11091880 Whirlpool Control Panel
17W10911303 Whirlpool Infinite Switch
18W10917724 Whirlpool Infinite Switch
19W10877180 Whirlpool Control Knob
19CW10877188 Whirlpool Knob
19BW11568640 Whirlpool Knob
19AW11628652 Whirlpool Knob
20W10598048 Whirlpool Support Bracket
21W11082269-includeCORE Whirlpool W11082269 Refrigerator Electronic Control Board + Core
22W10802441 Whirlpool Gasket
23W11240519 Whirlpool Vent Trim
24WP3196068 Whirlpool Light Lens
25W10555923 Whirlpool Mounting Bracket
26SCREW, ANTI-TIP KIT
27W11502257 Whirlpool Anchor Tip
28W11690600 Whirlpool Bumper
29W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
30GASKET, SWITCH
31W10860957 Whirlpool Mounting Bracket
32W10813558 Whirlpool Knob Bezel
33W10558372 Whirlpool Bracket Mounting
34W11129442 Whirlpool Surface Infinite Element Switch
35W11355689 Whirlpool Shield
36W10882900 Whirlpool Gasket
