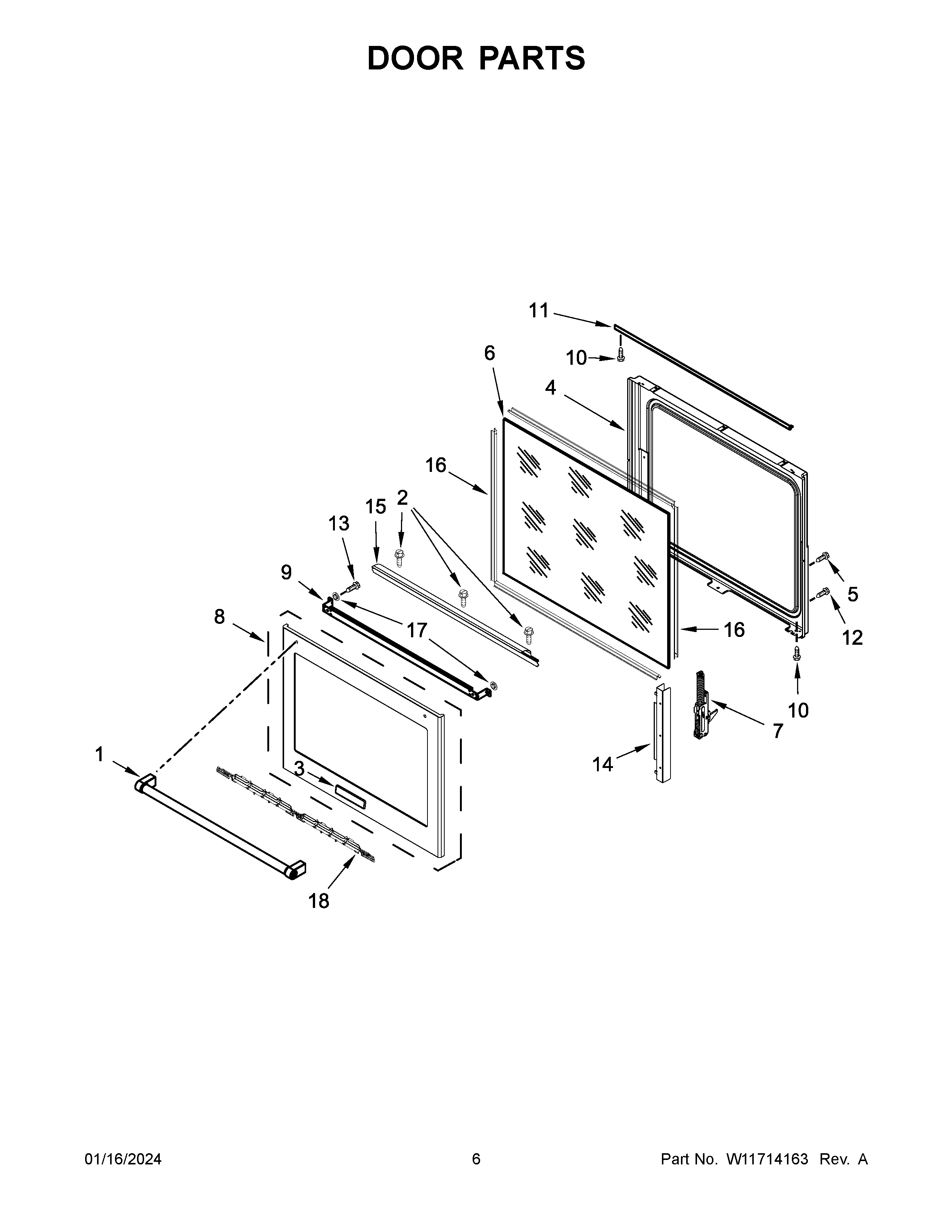

KSEG700EBS7 04 – DOOR PARTS

Products

Position	Product
1	W11691365 Whirlpool Handle – Door
2	W11245710 Whirlpool Refrigerator Screw
3	W10839793 Whirlpool Refrigerator Nameplate
4	W10902192 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	W11339500 Whirlpool Door Glass
7	W11162113 Whirlpool Door Hinge
8	W10915619 Whirlpool Door Glass
9	W10541911 Whirlpool Mounting Bracket
10	WP355214 Whirlpool Screw
11	W10813140 Whirlpool Glass Bracket
12	W10777162 Whirlpool Screw
13	WP8533988 Whirlpool Screw Fastener
14	W11744483 Whirlpool Support
15	W11251351 Whirlpool Vent Trim
16	W11673273 Whirlpool Spacer Glass
17	W11676355 Whirlpool Washer
18	BOTTOM, DOOR COVER

No products found
