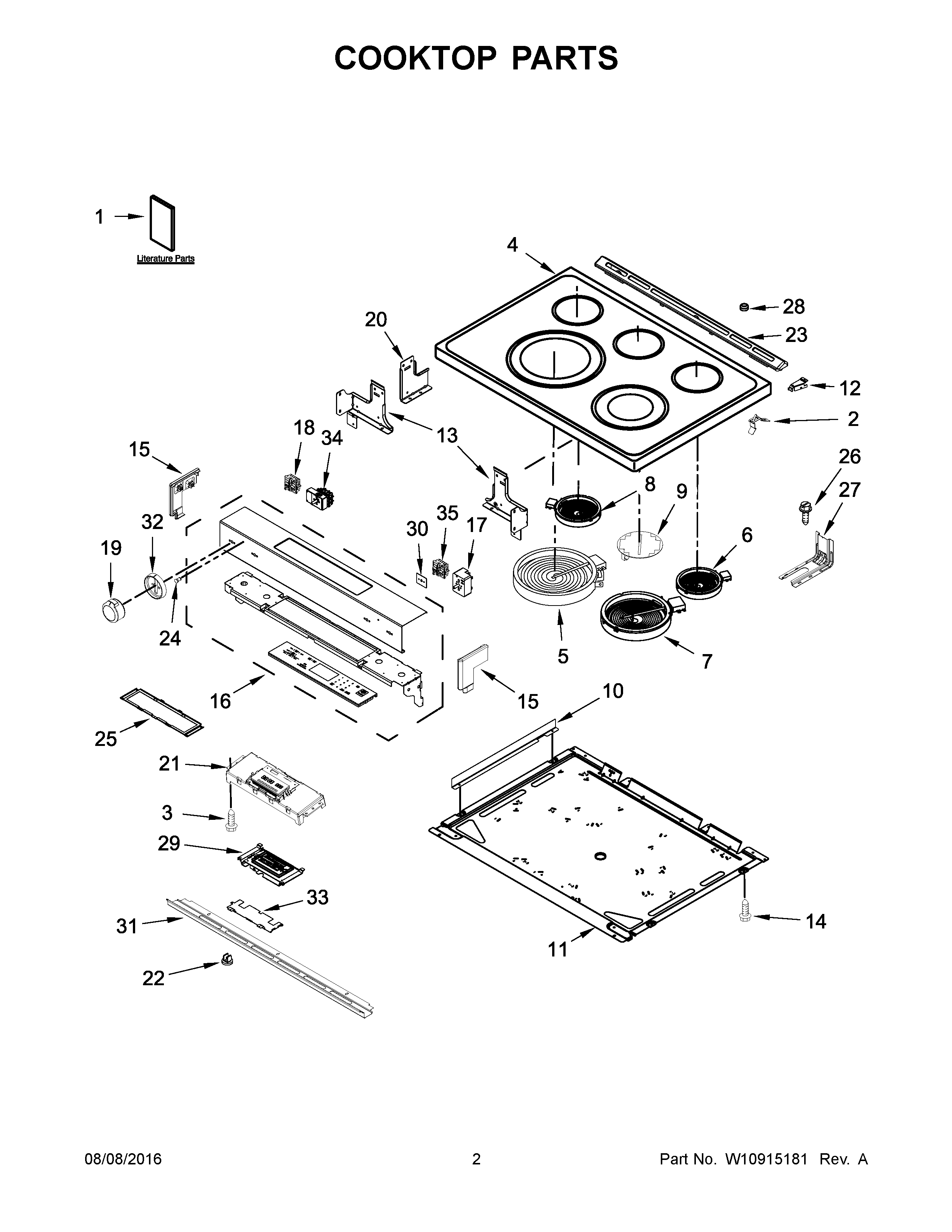

KSEG700ESS1 02 – COOKTOP PARTS

KSEG700ESS1 02 – COOKTOP PARTS

Written by

in

KSEG700ESS1 02 – COOKTOP PARTS

Products

Position	Product
NI	W11226772 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	W11226786 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	W10580303 Whirlpool Wire Harness
NI	W11188445 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1F	QUICK START GUIDE (FRENCH)
1E	QUICK START GUIDE
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
1G	WIRING DIAGRAM
1A	USE AND CARE GUIDE
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10814035 Whirlpool Cooktop
4A	W10814036 Whirlpool Cooktop
5	W11563195 Whirlpool Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11047668 Whirlpool Surface Element
10	W10613286 Whirlpool Bracket
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10555936 Whirlpool Endcap Panel
15C	W10555939 Whirlpool Endcap Panel
15B	W10555938 Whirlpool Endcap Panel
15	W10555935 Whirlpool Endcap Panel
16A	W10915660 Whirlpool Control Panel
16	CONSOLE (WHITE)
16B	W10915661 Whirlpool Control Panel
17	W10911303 Whirlpool Infinite Switch
18	W10917724 Whirlpool Infinite Switch
19C	W10877188 Whirlpool Knob
19B	W11568640 Whirlpool Knob
19A	W11628652 Whirlpool Knob
19	W10877180 Whirlpool Control Knob
20	W10598048 Whirlpool Support Bracket
21	WPW10453975-includeCORE Whirlpool WPW10453975 Refrigerator Electronic Control Board
22	W11025100 Whirlpool Insert
23A	W11240519 Whirlpool Vent Trim
23	W10636527 Whirlpool Vent Trim
24	WP3196068 Whirlpool Light Lens
25	W10555923 Whirlpool Mounting Bracket
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	WPW10603096 Whirlpool Electronic Control Board + Core
30	GASKET, SWITCH
31A	W10555932 Whirlpool Mounting Bracket
31B	W10555934 Whirlpool Mounting Bracket
31	CONSOLE, LOWER PANEL (WHITE)
32	W10813558 Whirlpool Knob Bezel
33	W10558372 Whirlpool Bracket Mounting
34	W11129442 Whirlpool Surface Infinite Element Switch
