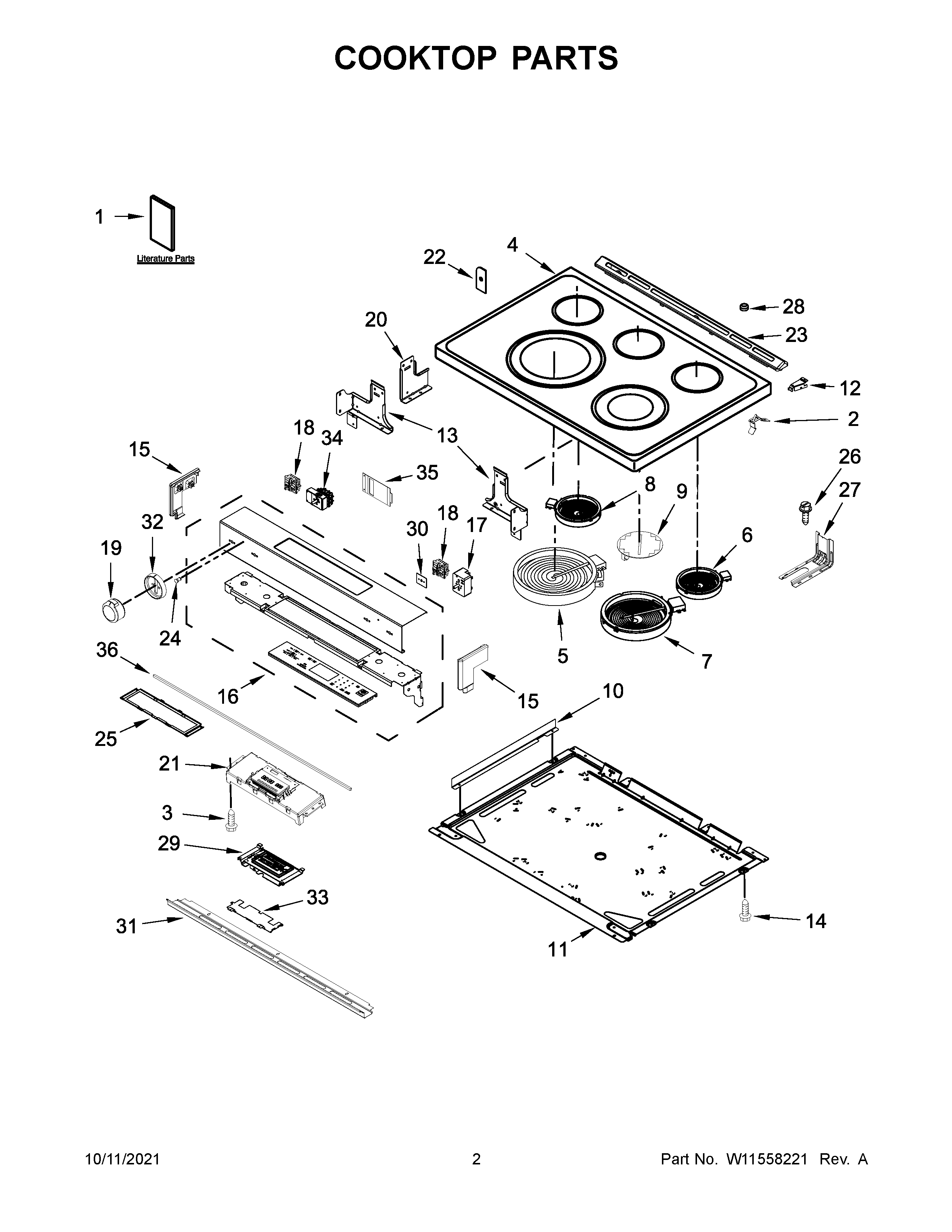

KSEG700ESS4 02 – COOKTOP PARTS

KSEG700ESS4 02 – COOKTOP PARTS

Written by

in

KSEG700ESS4 02 – COOKTOP PARTS

Products

PositionProduct
NIW11025616 Whirlpool Wire Harness
NIW10664316 Whirlpool Clip
NIW11454505 Whirlpool Wire Harness
NIW11226786 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NIW11226773 Whirlpool Wire Harness
NIW11175842 Whirlpool Suppressor
NICABINET (NOT A SERVICEABLE PART)
NIW11226772 Whirlpool Wire Harness
1OWNERS MANUAL
1BTECH SHEET
1AQUICK START GUIDE
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10814036 Whirlpool Cooktop
5W11563195 Whirlpool Surface Element
6ELMNT-SURF
7WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11041453 Whirlpool Surface Element
10BRACKET, RADIANT
11W10536275 Whirlpool Pan
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13W10289169 Whirlpool Bracket Support
13AW10289170 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15W10555937 Whirlpool Endcap Panel
15AW10555940 Whirlpool Endcap Panel
16W10915661 Whirlpool Control Panel
17W10911303 Whirlpool Infinite Switch
18W10917724 Whirlpool Infinite Switch
19CW10877188 Whirlpool Knob
19BW11568640 Whirlpool Knob
19W10877180 Whirlpool Control Knob
19AW11628652 Whirlpool Knob
20W10598048 Whirlpool Support Bracket
21W11082269-includeCORE Whirlpool W11082269 Refrigerator Electronic Control Board + Core
22W10882900 Whirlpool Gasket
23W11240519 Whirlpool Vent Trim
24WP3196068 Whirlpool Light Lens
25W10555923 Whirlpool Mounting Bracket
26SCREW, ANTI-TIP KIT
27W11502257 Whirlpool Anchor Tip
28W11104127 Whirlpool Bumper Assembly
29W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
30GASKET, SWITCH
31W10555934 Whirlpool Mounting Bracket
32W10813558 Whirlpool Knob Bezel
33W10558372 Whirlpool Bracket Mounting
34W11129442 Whirlpool Surface Infinite Element Switch
35W11355689 Whirlpool Shield
36W10802441 Whirlpool Gasket
