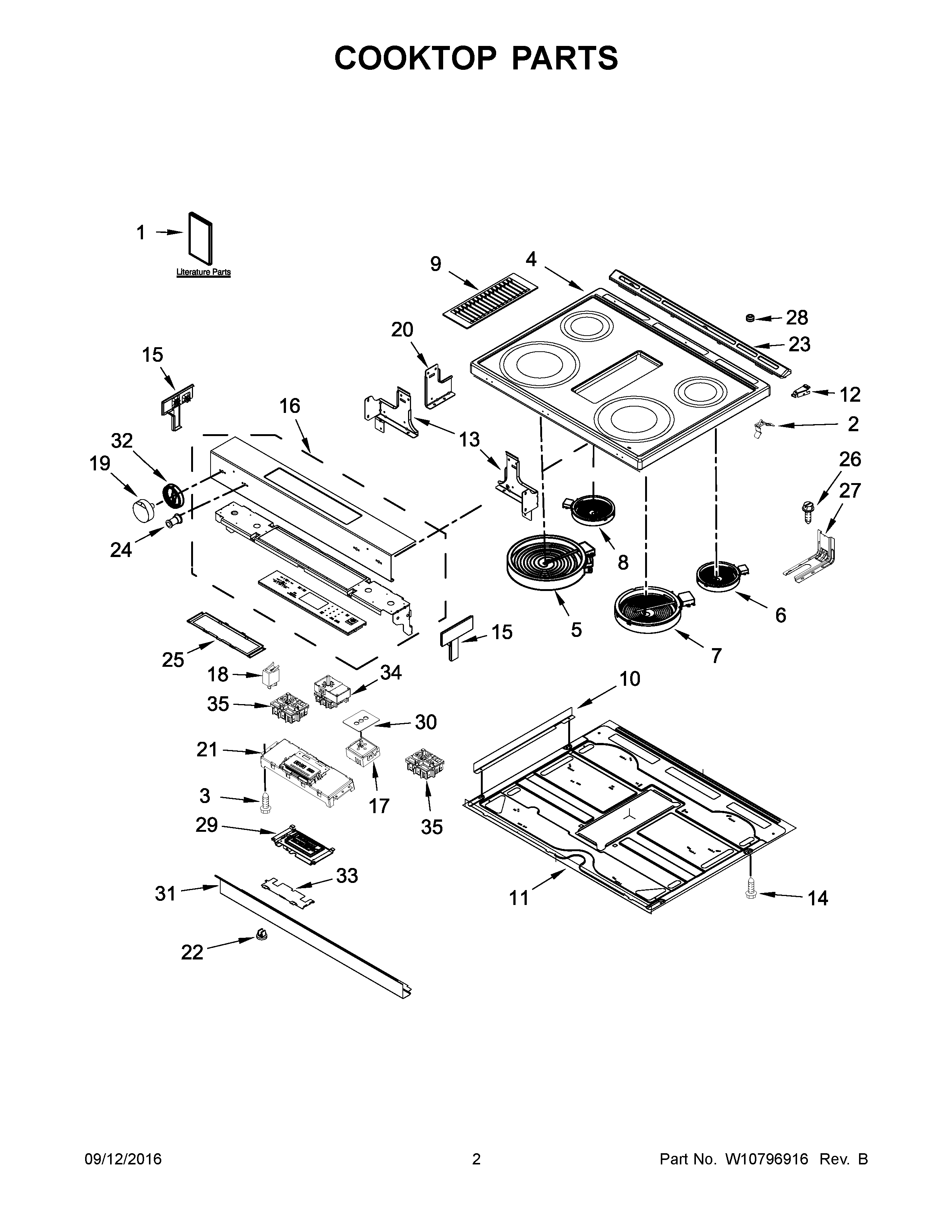

KSEG950ESS0 02 – COOKTOP PARTS

KSEG950ESS0 02 – COOKTOP PARTS

Written by

in

KSEG950ESS0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11025616 Whirlpool Wire Harness
NIW11226772 Whirlpool Wire Harness
NIW10580264 Whirlpool Wire Harness
NIW11171878 Whirlpool Wire Harness
NIW10813885 Whirlpool Wire Harness
NIW10664316 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
1BSHEET, TECH
1AUSER INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
1EQUICK START GUIDE
1FQUICK START GUIDE (FRENCH)
1GWIRING DIAGRAM
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1HW11643128 Whirlpool Template
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10813359 Whirlpool Range Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8WPW10342780 Whirlpool Surface Element
9W11211500 Whirlpool Grille Assembly
10W10613286 Whirlpool Bracket
11PAN, RADIANT
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13W10289169 Whirlpool Bracket Support
13AW10289170 Whirlpool Support Bracket
14W11244557 Whirlpool Screw
15W10555937 Whirlpool Endcap Panel
15AW10555940 Whirlpool Endcap Panel
16W10915815 Whirlpool Control Panel
17W10911303 Whirlpool Infinite Switch
18WP8523265 Whirlpool Indicator Light
19AW11628652 Whirlpool Knob
19W10877180 Whirlpool Control Knob
19BW11568640 Whirlpool Knob
19CW10877189 Whirlpool Knob
20W10598048 Whirlpool Support Bracket
21W11100515 Whirlpool Stove Control Board + Core
22W11025100 Whirlpool Insert
23W11170796 Whirlpool Vent Trim
24WP3196068 Whirlpool Light Lens
25W10555923 Whirlpool Mounting Bracket
26SCREW, ANTI-TIP KIT
27W11502257 Whirlpool Anchor Tip
28W11104127 Whirlpool Bumper Assembly
29WPW10603096 Whirlpool Electronic Control Board + Core
30GASKET, SWITCH
31W10743276 Whirlpool Mounting Bracket
32W10813558 Whirlpool Knob Bezel
33W10558372 Whirlpool Bracket Mounting
34SWITCH-INF
35W10917724 Whirlpool Infinite Switch
