KSEG950ESS1 02 – COOKTOP PARTS

KSEG950ESS1 02 – COOKTOP PARTS

Written by

in

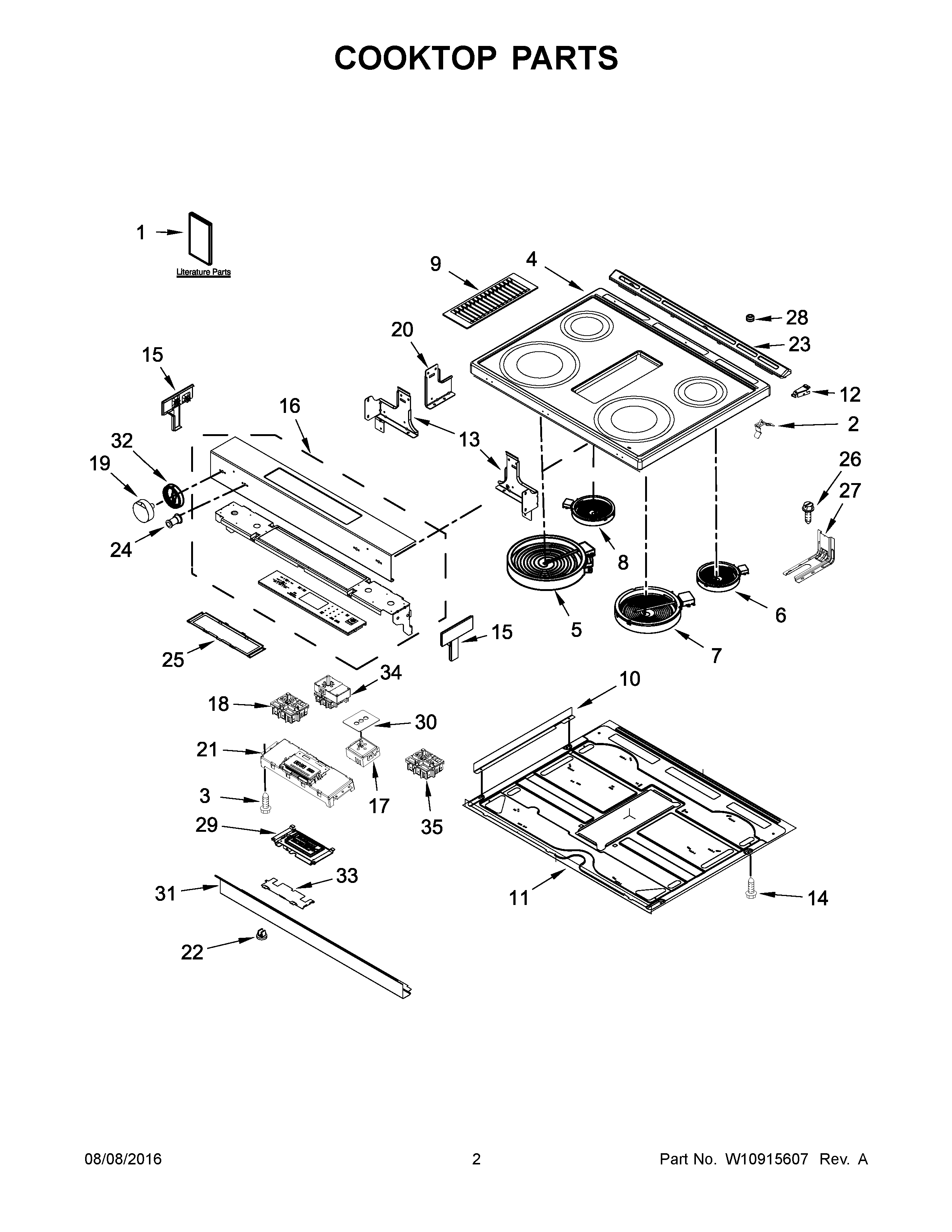

KSEG950ESS1 02 – COOKTOP PARTS

Products

Position	Product
NI	W11025616 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	W10813885 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	W10580264 Whirlpool Wire Harness
NI	W11171878 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1	INSTRUCTIONS, INSTALLATION
1A	USER INSTRUCTIONS
1D	Safer Cooking Tips (French)
1B	SHEET, TECH
1G	WIRING DIAGRAM
1E	QUICK START GUIDE
1F	QUICK START GUIDE (FRENCH)
1H	W11643128 Whirlpool Template
1C	SAFER COOKING TIPS (ENGLISH
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10813359 Whirlpool Range Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10342780 Whirlpool Surface Element
9	W11211500 Whirlpool Grille Assembly
10	W10613286 Whirlpool Bracket
11	PAN, RADIANT
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10555940 Whirlpool Endcap Panel
15	W10555937 Whirlpool Endcap Panel
16	W10915815 Whirlpool Control Panel
17	W10911303 Whirlpool Infinite Switch
18	W10917724 Whirlpool Infinite Switch
19C	W10877189 Whirlpool Knob
19	W10877180 Whirlpool Control Knob
19A	W11628652 Whirlpool Knob
19B	W11568640 Whirlpool Knob
20	W10598048 Whirlpool Support Bracket
21	W11100515 Whirlpool Stove Control Board + Core
22	W11025100 Whirlpool Insert
23	W11170796 Whirlpool Vent Trim
24	WP3196068 Whirlpool Light Lens
25	W10555923 Whirlpool Mounting Bracket
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11104127 Whirlpool Bumper Assembly
29	WPW10603096 Whirlpool Electronic Control Board + Core
30	GASKET, SWITCH
31	W10743276 Whirlpool Mounting Bracket
32	W10813558 Whirlpool Knob Bezel
33	W10558372 Whirlpool Bracket Mounting
34	SWITCH-INF
