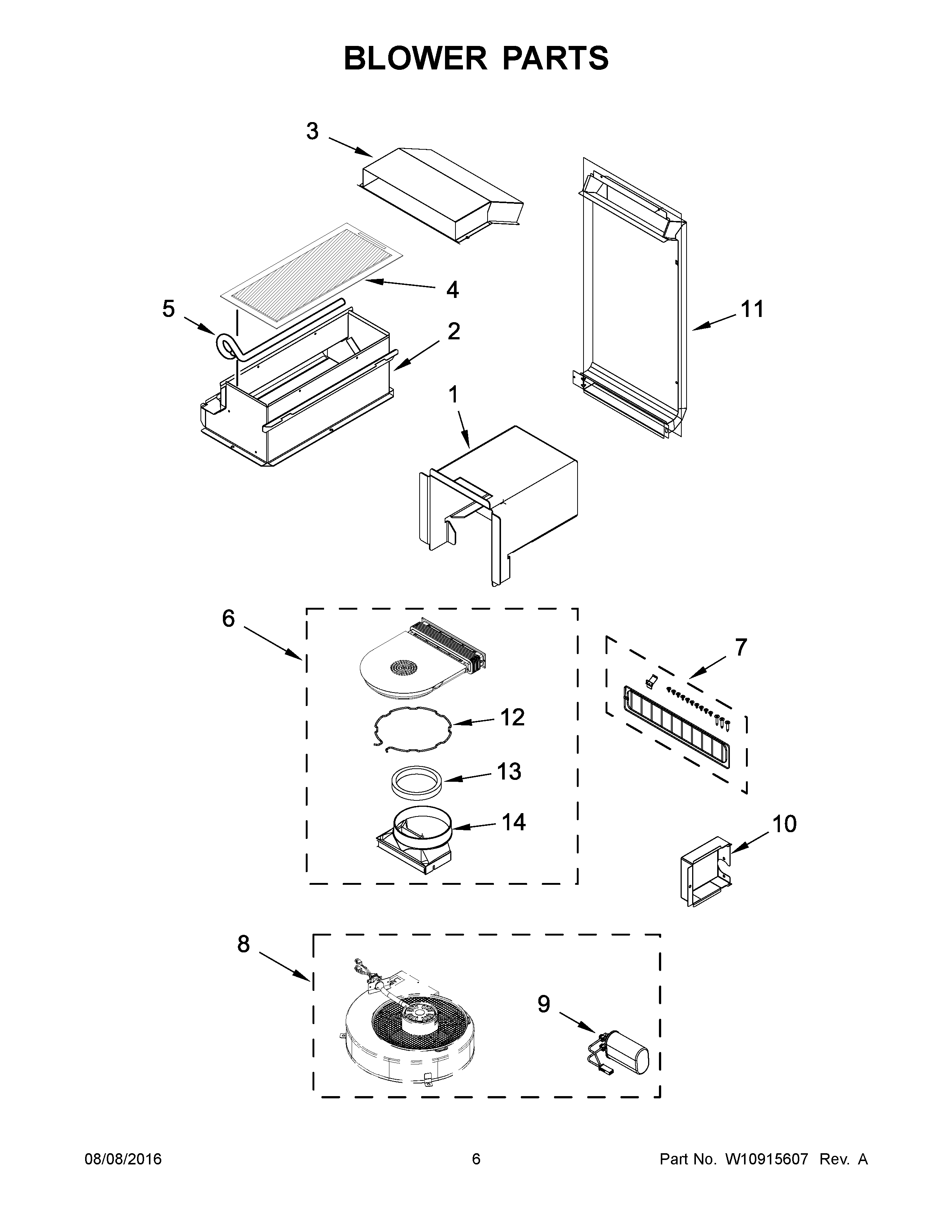

KSEG950ESS1 04 – BLOWER PARTS

KSEG950ESS1 04 – BLOWER PARTS

Written by

in

KSEG950ESS1 04 – BLOWER PARTS

Products

PositionProduct
1W10661156 Whirlpool Cover Assembly
2W10572224 Whirlpool Air Plenum
3W10572145 Whirlpool Air Plenum
4W11190170 Whirlpool Filter
5W10575393 Whirlpool Clip
6W11129407 Whirlpool Fan Scroll
7W11190818 Whirlpool Hardware
8W10921431 Whirlpool Blower Motor
9W11209781 Whirlpool Capacitor
10W10787917 Whirlpool Cover Assembly
11W10661835 Whirlpool Air Plenum
12W10702071 Whirlpool Clamp
13W10759311 Whirlpool Gasket
14W10642096 Whirlpool Air Plenum
