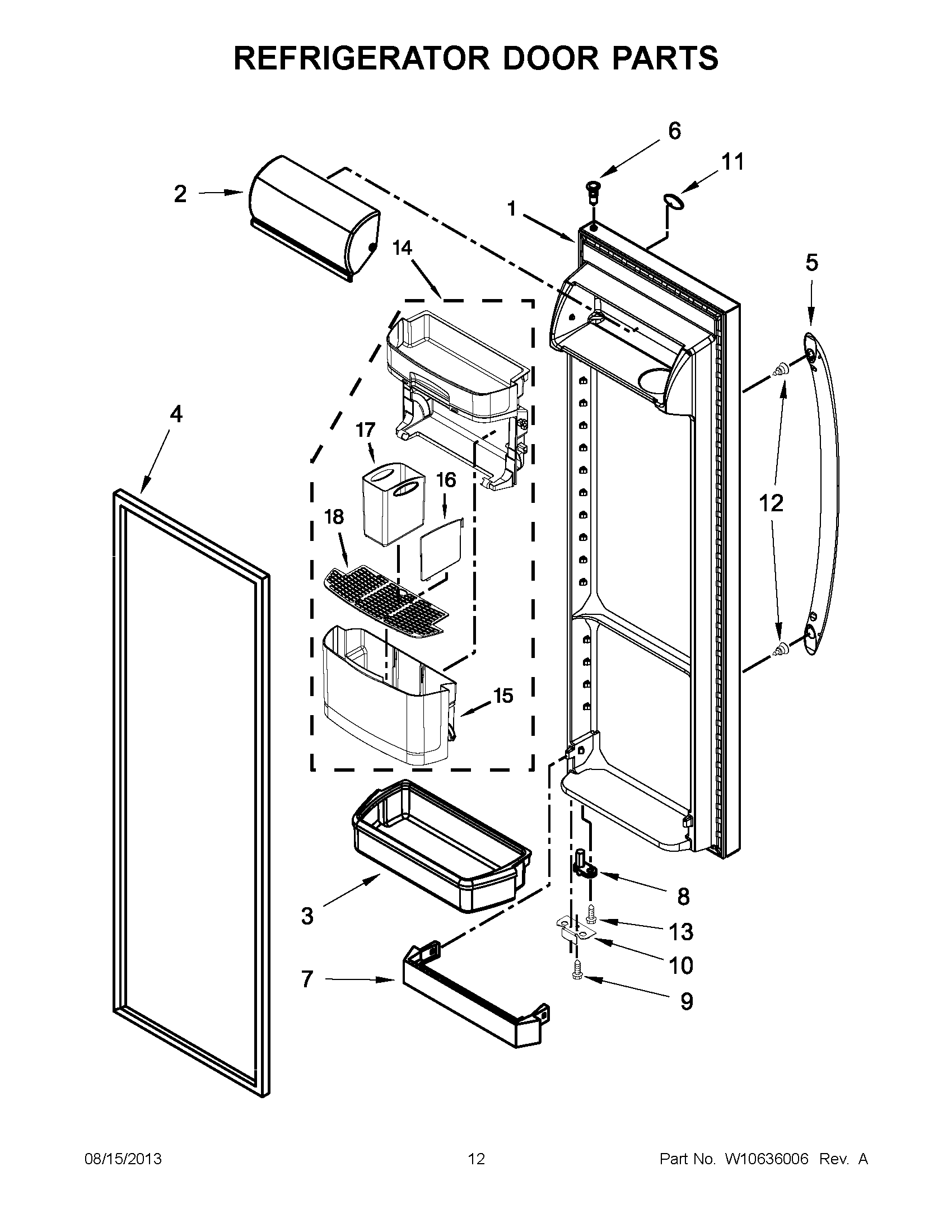

KSF22C4CYY00 06 – REFRIGERATOR DOOR PARTS

KSF22C4CYY00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSF22C4CYY00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
2WP2256101 Whirlpool Dairy Door
3BIN, DOOR
4W10136732 Whirlpool Refrigerator FIP Gasket
5WPW10557401 Whirlpool Refrigerator Handle
6WP2182181 Whirlpool Refrigerator Thimble
7TRIVET
8WP2182179 Whirlpool Cam Closer
9WP489483 Whirlpool Screw
10BRACKET, DOOR STOP (GREY)
11WPW10243391 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WP3400012 Whirlpool Refrigerator Screw
14BIN ASSEMBLY, COMPLETE
15BIN ASSEMBLY, TILT OUT
16DIVIDER, BIN
17W10127505 Whirlpool Refrigerator Bin
18STRAINER, BIN
