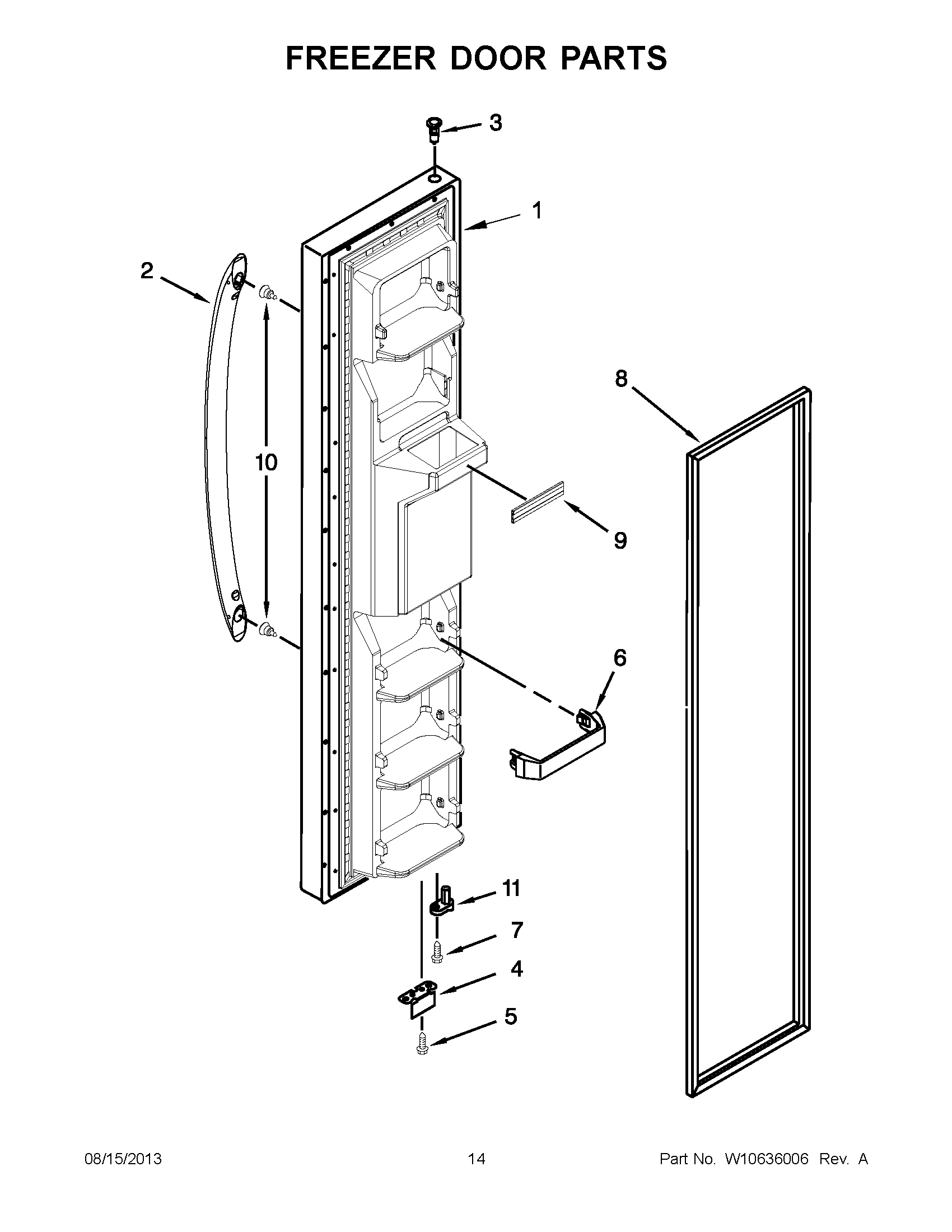

KSF22C4CYY00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
2WPW10557401 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W10507571 Whirlpool Bracket
5WP489483 Whirlpool Screw
6TRIM, DOOR
7WP3400012 Whirlpool Refrigerator Screw
8W10136733 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11Door Closer, Upper Cam
