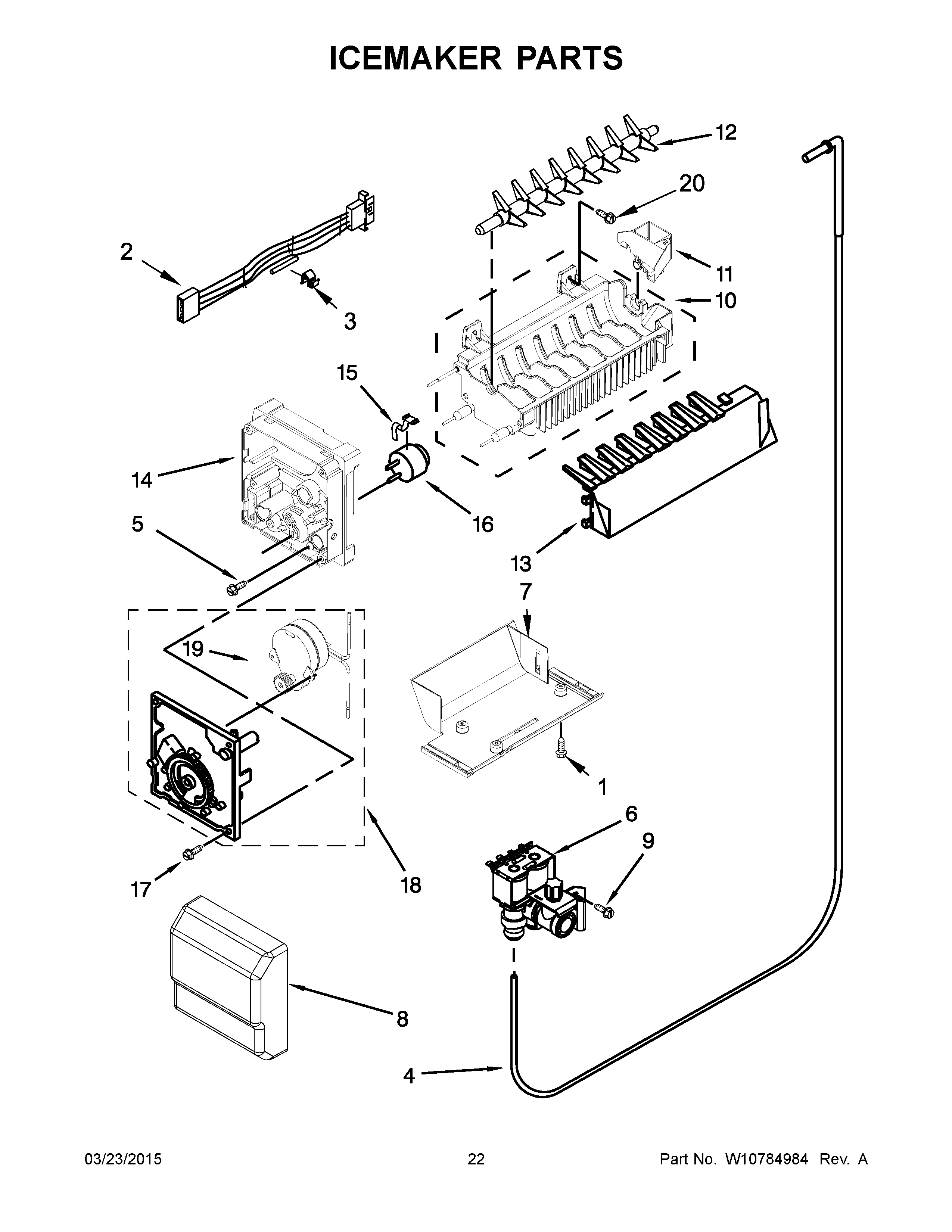

KSF22C4CYY01 12 – ICEMAKER PARTS

KSF22C4CYY01 12 – ICEMAKER PARTS

Written by

in

KSF22C4CYY01 12 – ICEMAKER PARTS

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
2WIRE ASSEMBLY, ICEMAKER
3WP628379 Whirlpool Refrigerator Clip
4WPW10140630 Whirlpool Refrigerator Fitting
5W10001280 Whirlpool Refrigerator Screw
6WPW10445780 Whirlpool Refrigerator Inlet Valve
7W10445788 Whirlpool Refrigerator Bracket
8W10445790 Whirlpool Refrigerator Front Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10W10161596 Whirlpool Refrigerator Ice Mold
11W10445784 Whirlpool Refrigerator Cup Fill
12W10318644 Whirlpool Refrigerator Ejector Arm
13W10445786 Whirlpool Refrigerator Arm Stripper
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
17W10001240 Whirlpool Refrigerator Screw
188201515 Whirlpool Refrigerator Motor and Gear Module Kit
19CABINET (NOT A SERVICEABLE PART)
100WPW10445782 Whirlpool Refrigerator Icemaker
