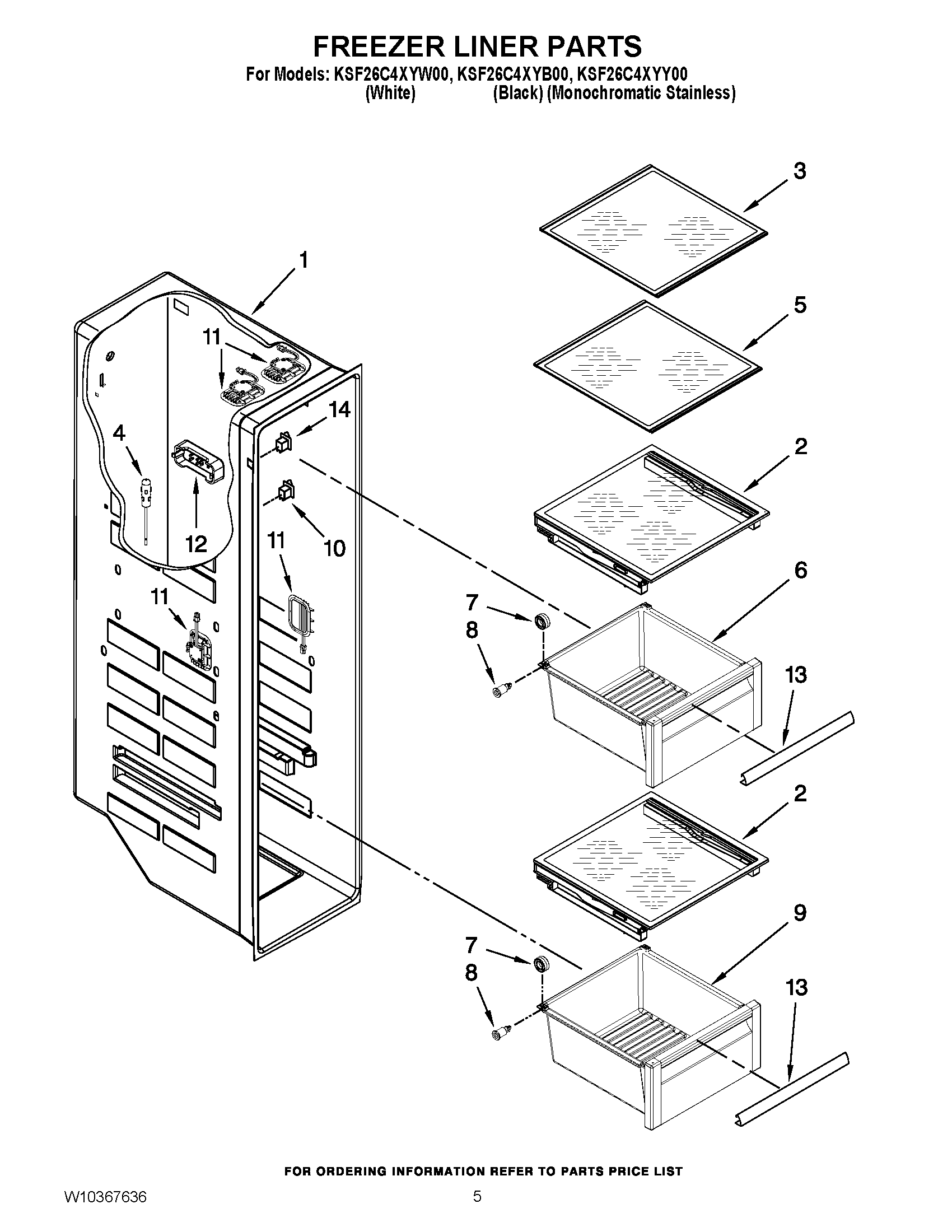

KSF26C4XYB00 04 – FREEZER LINER PARTS

KSF26C4XYB00 04 – FREEZER LINER PARTS

Written by

in

KSF26C4XYB00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10269181 Whirlpool Refrigerator Cover
3W10321181 Whirlpool Refrigerator Cover
4THERMISTOR
5WPW10321182 Whirlpool Refrigerator Glass Shelf
6W10846447 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8WPW10257246 Whirlpool Refrigerator Axle
9W10542032 Whirlpool Refrigerator Freezer Bin
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11MODULE
12WPW10425252 Whirlpool Refrigerator Cover
13W10542017 Whirlpool Refrigerator Trim Pan
14W11123943 Whirlpool Refrigerator Switch
