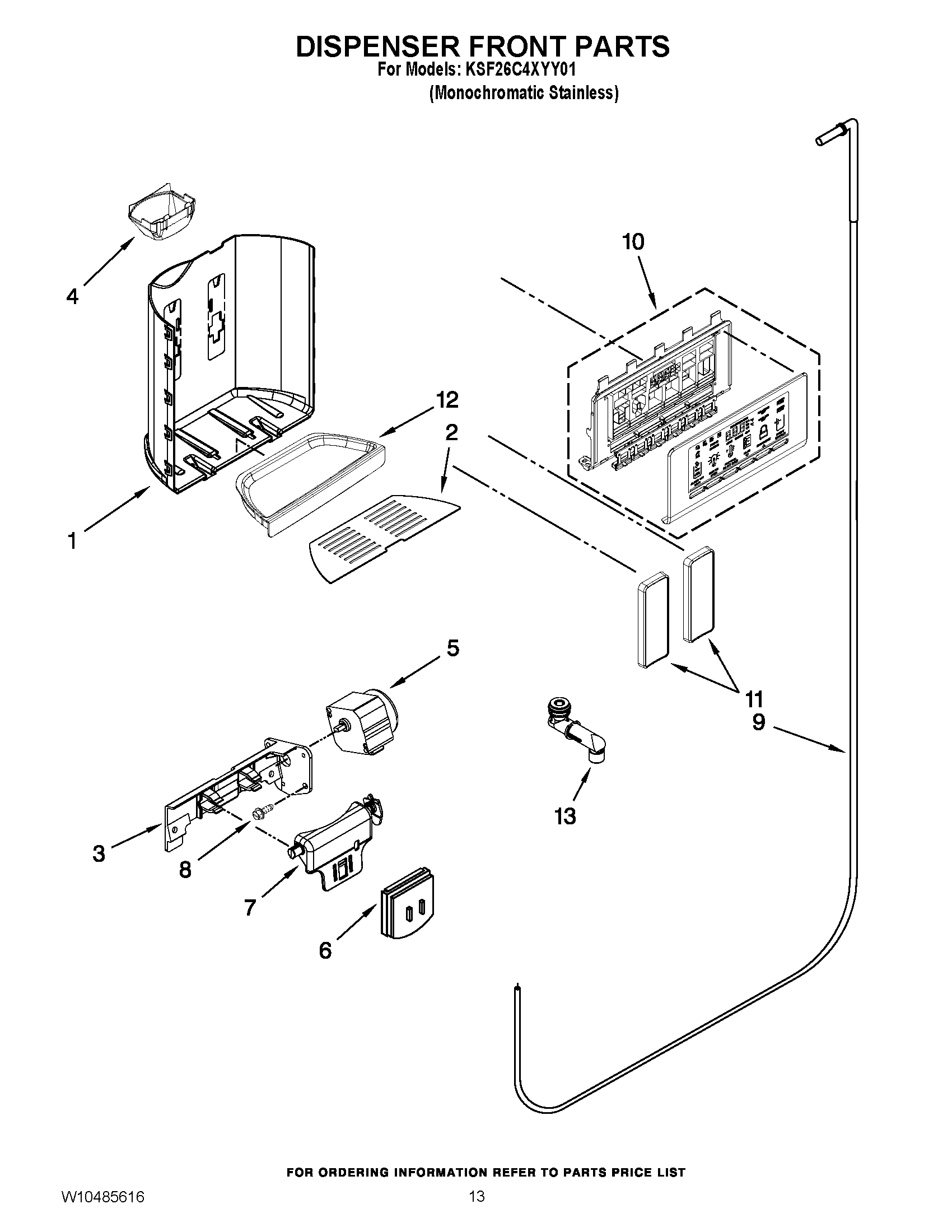

KSF26C4XYY01 08 – DISPENSER FRONT PARTS

KSF26C4XYY01 08 – DISPENSER FRONT PARTS

Written by

in

KSF26C4XYY01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
3DOOR-ICE
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10386778 Whirlpool Refrigerator Water Tube
10W10844896 Whirlpool Refrigerator Electronic Control Board
11WPW10346924 Whirlpool Refrigerator Pad
12WPW10317261 Whirlpool Refrigerator Drip Tray
13SPIGOT-BODY ASSY
