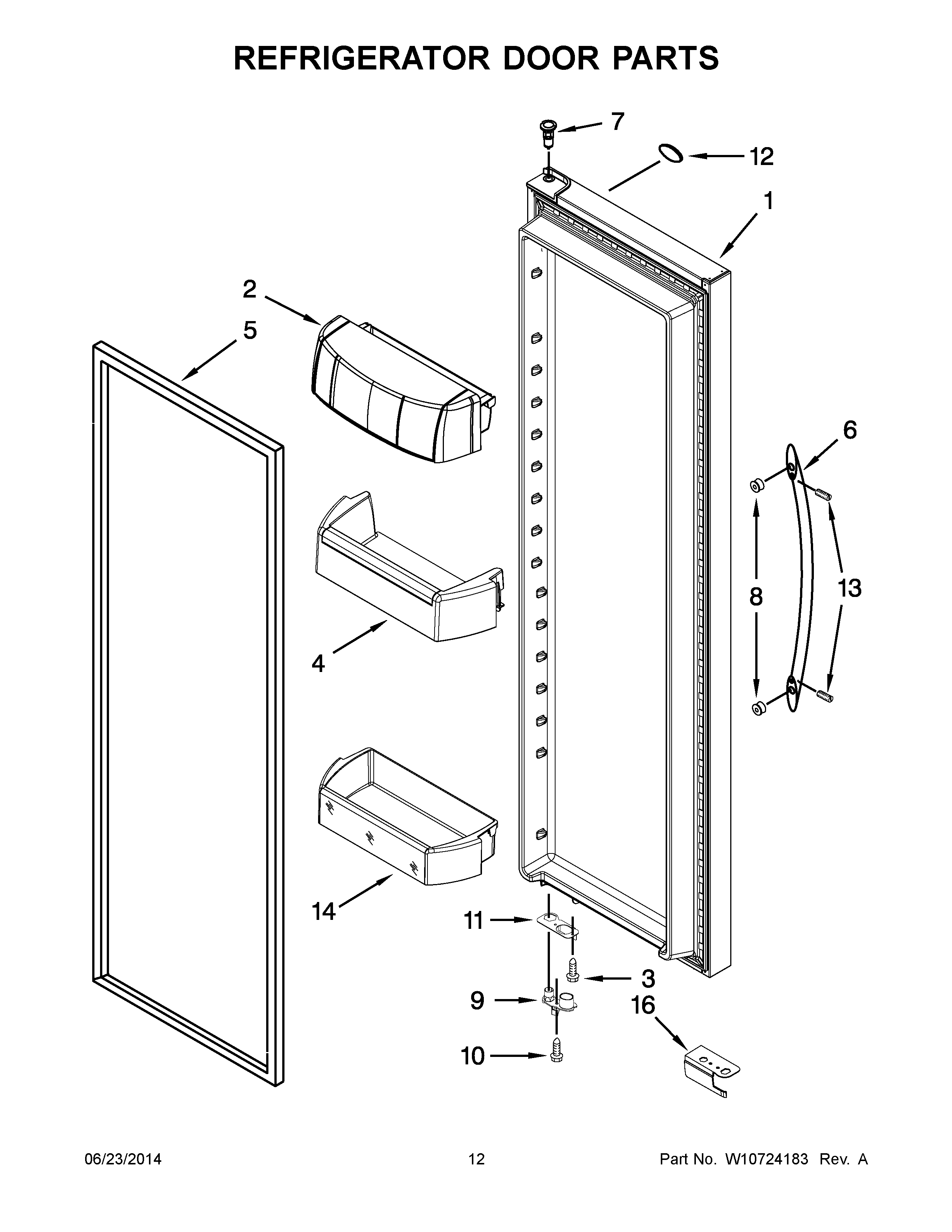

KSF26C4XYY04 07 – REFRIGERATOR DOOR PARTS

KSF26C4XYY04 07 – REFRIGERATOR DOOR PARTS

Written by

in

KSF26C4XYY04 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10637808 Whirlpool Refrigerator Field Kit SRC RC Door
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4BIN, SHALLOW DOOR
5W10355582 Whirlpool Refrigerator Door Gasket
6WPW10314517K Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10243391 Whirlpool Refrigerator Nameplate
13SCREW
14WPW10335220 Whirlpool Refrigerator Cantilever Bin
16W11661847 Whirlpool Wire Cover
