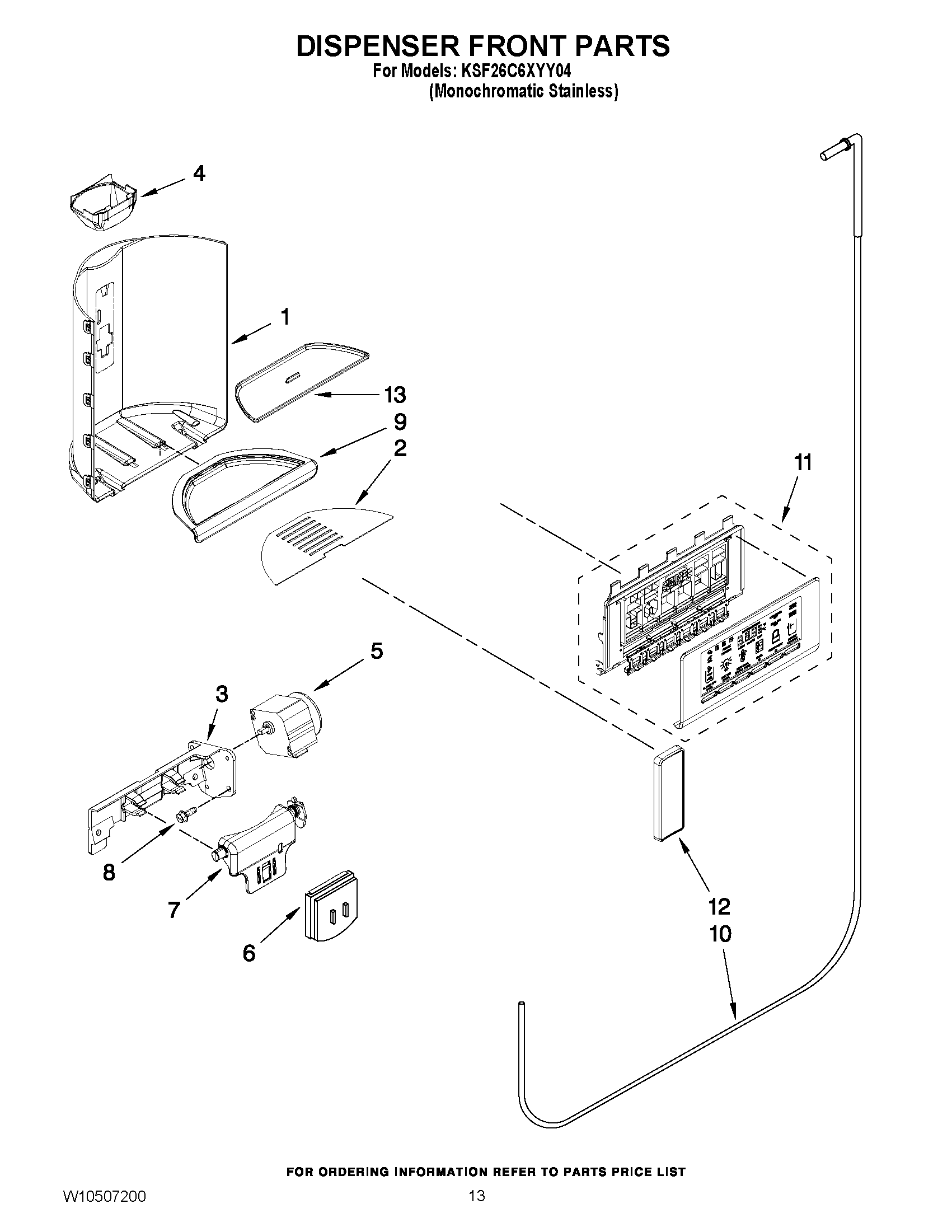

KSF26C6XYY04 09 – DISPENSER FRONT PARTS

KSF26C6XYY04 09 – DISPENSER FRONT PARTS

Written by

in

KSF26C6XYY04 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
3DOOR-ICE
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10317261 Whirlpool Refrigerator Drip Tray
10WPW10386778 Whirlpool Refrigerator Water Tube
11W11324962-includeCORE Whirlpool W11324962 Refrigerator Electronic Control Board + Core
12WPW10346924 Whirlpool Refrigerator Pad
13W10859920 Whirlpool Refrigerator Drip Tray
