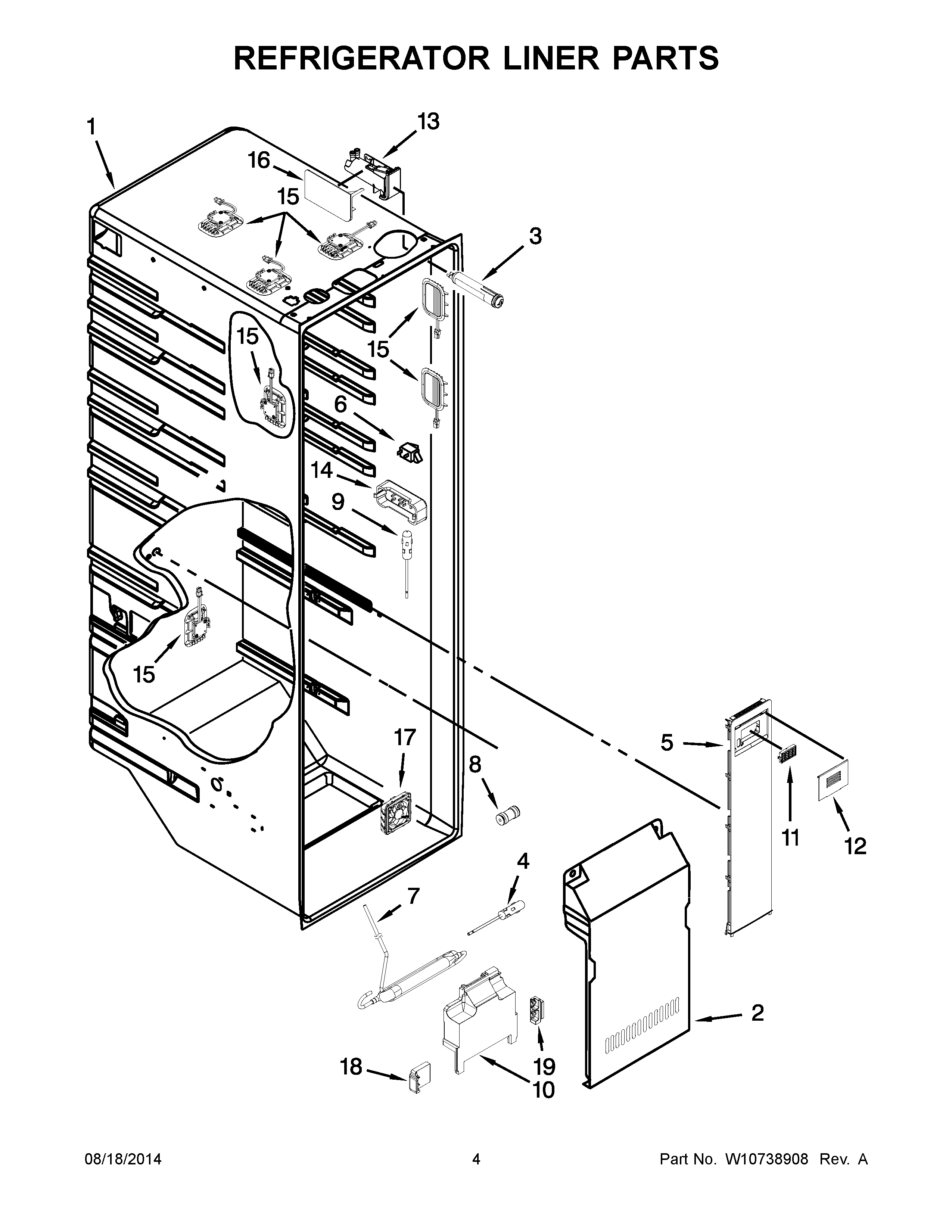

KSF26C6XYY05 03 – REFRIGERATOR LINER PARTS

KSF26C6XYY05 03 – REFRIGERATOR LINER PARTS

Written by

in

KSF26C6XYY05 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10387382 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
5W10513731 Whirlpool Refrigerator Air Tower
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10WPW10451893 Whirlpool Refrigerator Scroll Fan
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W10341548 Whirlpool Refrigerator Support
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W11501035 Whirlpool Refrigerator Filter Cover
17WPW10439624 Whirlpool Refrigerator Evaporator Motor
18W11028224 Whirlpool Refrigerator Support
19W10837626 Whirlpool Refrigerator Support
