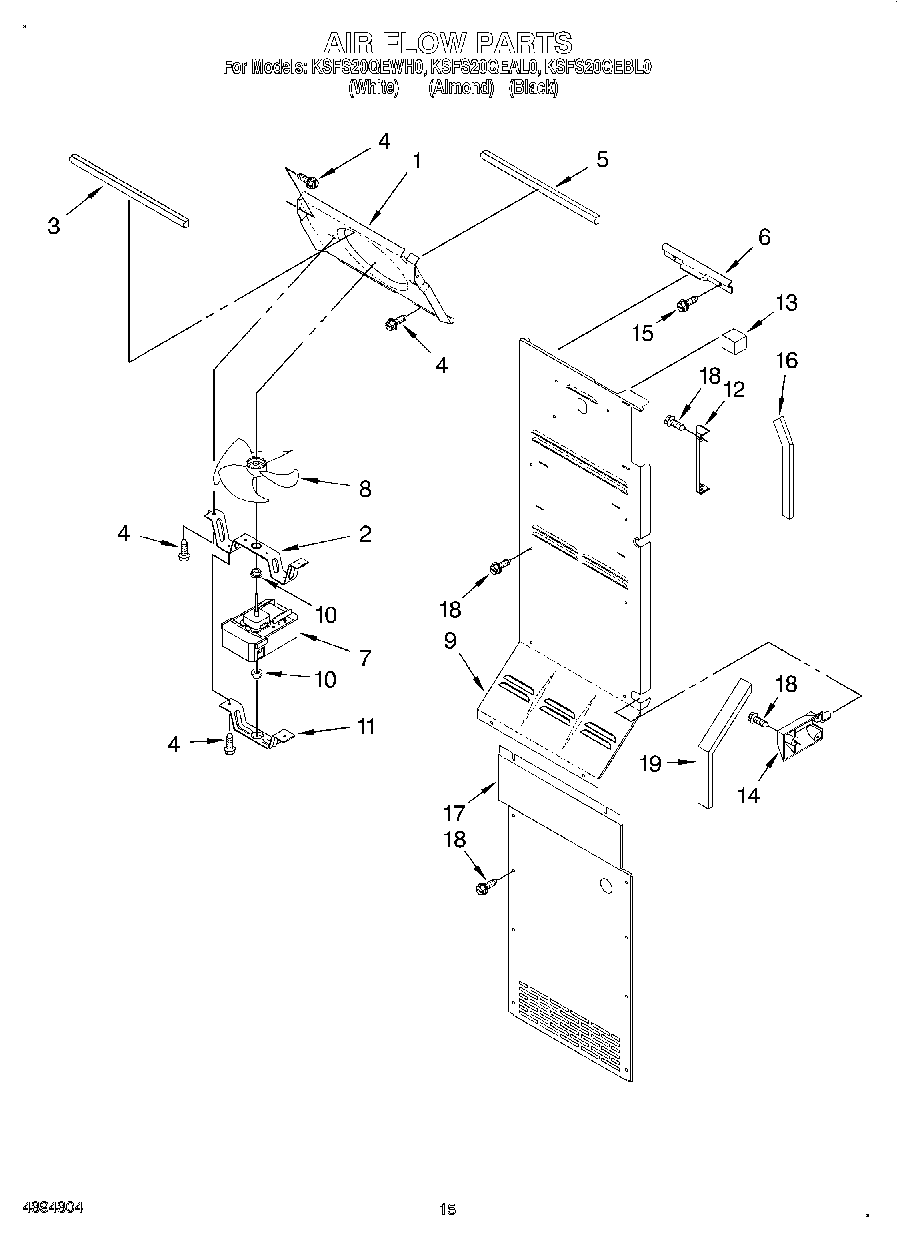

KSFS20QEAL0 09 – AIR FLOW

Products

Position	Product
1	Fan Shroud
2	Bracket, Motor
3	Foam Seal
4	WPL 4343749
5	Foam Seal
6	Clip
7	Fan Motor
8	R0000199 Whirlpool Refrigerator Evaporator Fan
9	Rear Cover
10	WP2264462 Whirlpool Refrigerator Grommet
11	Bracket
12	Cover, Air Supply
13	Gasket Cover
14	Cover, Air
15	WP98165 Whirlpool Screw
16	Gasket
17	Cover, Evaporator
18	WP489464 Whirlpool Refrigerator Screw
19	Gasket, Foam
