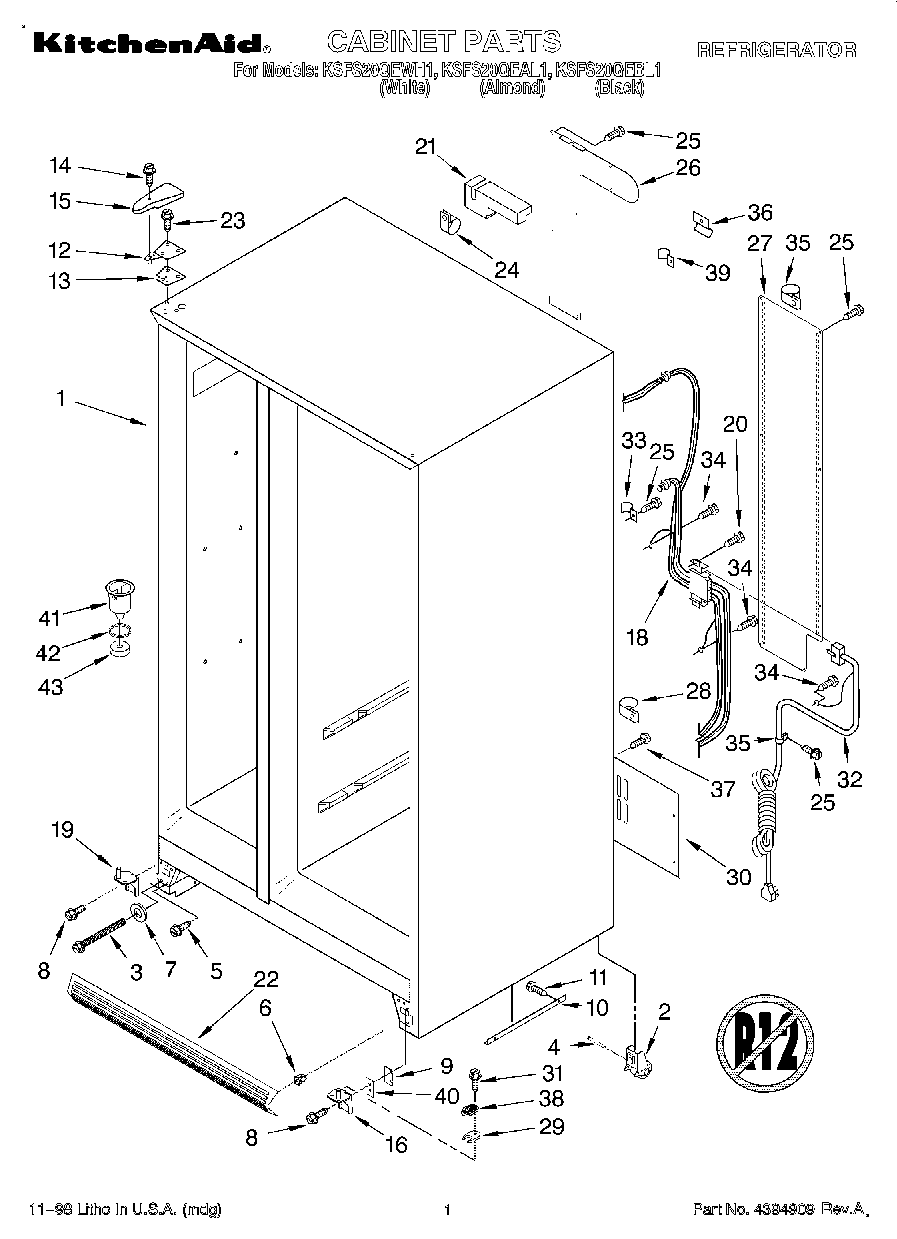

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Roller (4) |
| 3 | Screw, Rear Roller Adjust |
| 4 | Pin, Clevis (4) |
| 5 | Screw, Front Roller Adjust |
| 6 | WPM0117303 Whirlpool Refrigerator Clip |
| 7 | Washer |
| 8 | WP67006715 Whirlpool Refrigerator Screw |
| 9 | Spacer |
| 10 | Support (2) |
| 11 | Screw |
| 12 | Hinge Top (2) |
| 13 | Shim, Hinge Top |
| 14 | Screw |
| 15 | Hinge Cover (Almond) |
| 15 | Hinge Cover (Black) |
| 15 | Hinge Cover (White) |
| 16 | Hinge Bottom (R.H) (Black) |
| 16 | Hinge Bottom (R.H) (White) |
| 18 | Wire Harness |
| 19 | Hinge Bottom (L.H) (White) |
| 19 | Hinge Bottom (L.H) (Black) |
| 20 | WP489069 Whirlpool Compactor Screw |
| 21 | Air Baffle |
| 22 | Grille (Almond) |
| 22 | Grille (Black) |
| 22 | 12321807Q Whirlpool Refrigerator Toe Grille Assembly with Clips |
| 23 | Screw |
| 24 | Clamp, Tube |
| 25 | WPL 4343759 |
| 26 | Wire Cover |
| 27 | Back Cover |
| 28 | Clip, Water Tube |
| 29 | Shim, Door Closer (Black) |
| 29 | Shim, Door Closer (White) |
| 29 | Shim, Door Closer (White) |
| 29 | Shim, Door Closer (Black) |
| 30 | Cover, Unit |
| 31 | WP250830 Whirlpool Refrigerator Screw |
| 32 | Power Cord |
| 33 | Tube Clamp |
| 34 | Screw |
| 35 | WPL 4343661 |
| 36 | WPM0104106 Whirlpool Refrigerator Clip |
| 37 | Screw |
| 38 | R0181181 Whirlpool Refrigerator Door Closer Cam Kit |
| 39 | WPM0114003 Whirlpool Microwave Speed Clip Clamp |
| 40 | Shim, Hinge |
| 41 | W10815413 Whirlpool Refrigerator Funnel |
| 42 | WPM0500703 Whirlpool Refrigerator O-Ring Seal |
| 43 | WPB8381501 Whirlpool Refrigerator Door Gasket |
