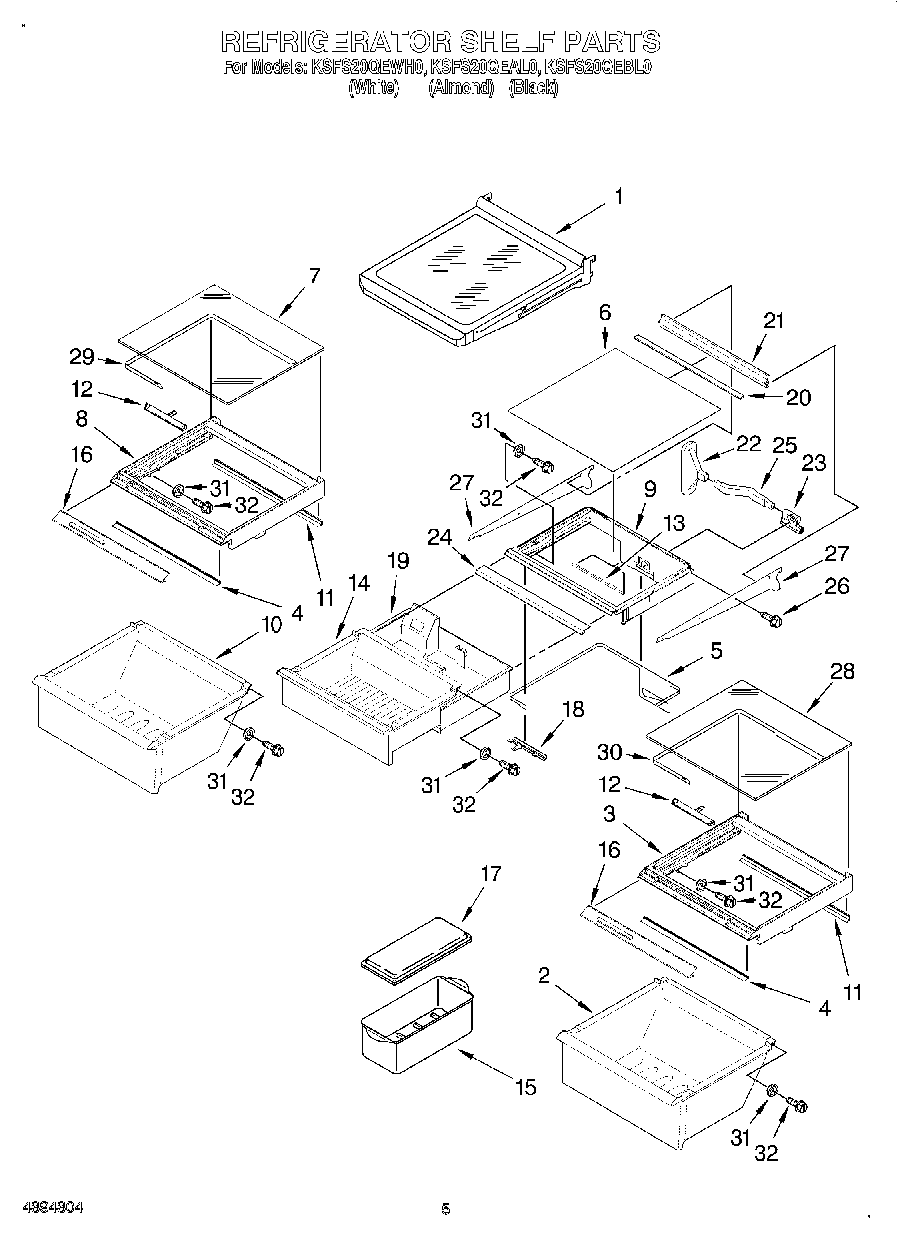

KSFS20QEBL0 03 – REFRIGERATOR SHELFadmin2025-04-26T12:35:30+00:00KSFS20QEBL0 03 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Shelf Assembly, Glass Sliding (2) |
| 2 | Crisper Pan (Lower) |
| 3 | Cover, Crisper (Lower) |
| 4 | Gasket, Cover (Front) |
| 5 | Seal, Control |
| 6 | Glass, Meat Cover |
| 7 | Glass, Crisper Cover (Upper) |
| 8 | Cover, Crisper (Upper) |
| 9 | Frame, Meat Pan |
| 10 | Crisper Pan (Upper) |
| 11 | Gasket, Rear |
| 12 | Slide, Humidity Control |
| 13 | Gasket, Top (2) |
| 14 | Meat Pan |
| 15 | W10136387A Whirlpool Refrigerator Egg Container |
| 16 | Trim, Front (2) |
| 17 | Cover |
| 18 | Slide, Control |
| 19 | Sleeve |
| 20 | Extrusion |
| 21 | Trim, Rear |
| 22 | Grommet, Air Duct |
| 23 | Extension, Air Duct |
| 24 | Trim, Frame |
| 25 | Air Duct |
| 26 | WPW10068250 Whirlpool Dishwasher Screw |
| 27 | Shelf Arm (Right Side) |
| 27 | Shelf Arm (Left Side) |
| 28 | Glass, Crisper Cover (Lower) |
| 29 | Band, Crisper (Upper) |
| 30 | Band, Crisper (Lower) |
| 31 | Roller |
| 32 | Screw |
